Arkitek 1-Handle Tub & Shower Trim Kit parts
11 part numbers on Pfister’s parts diagram. 9 in our catalog, the rest we order in.
Model numbers: G89-8LPMCG89-8LPMKLG89-8LPMK

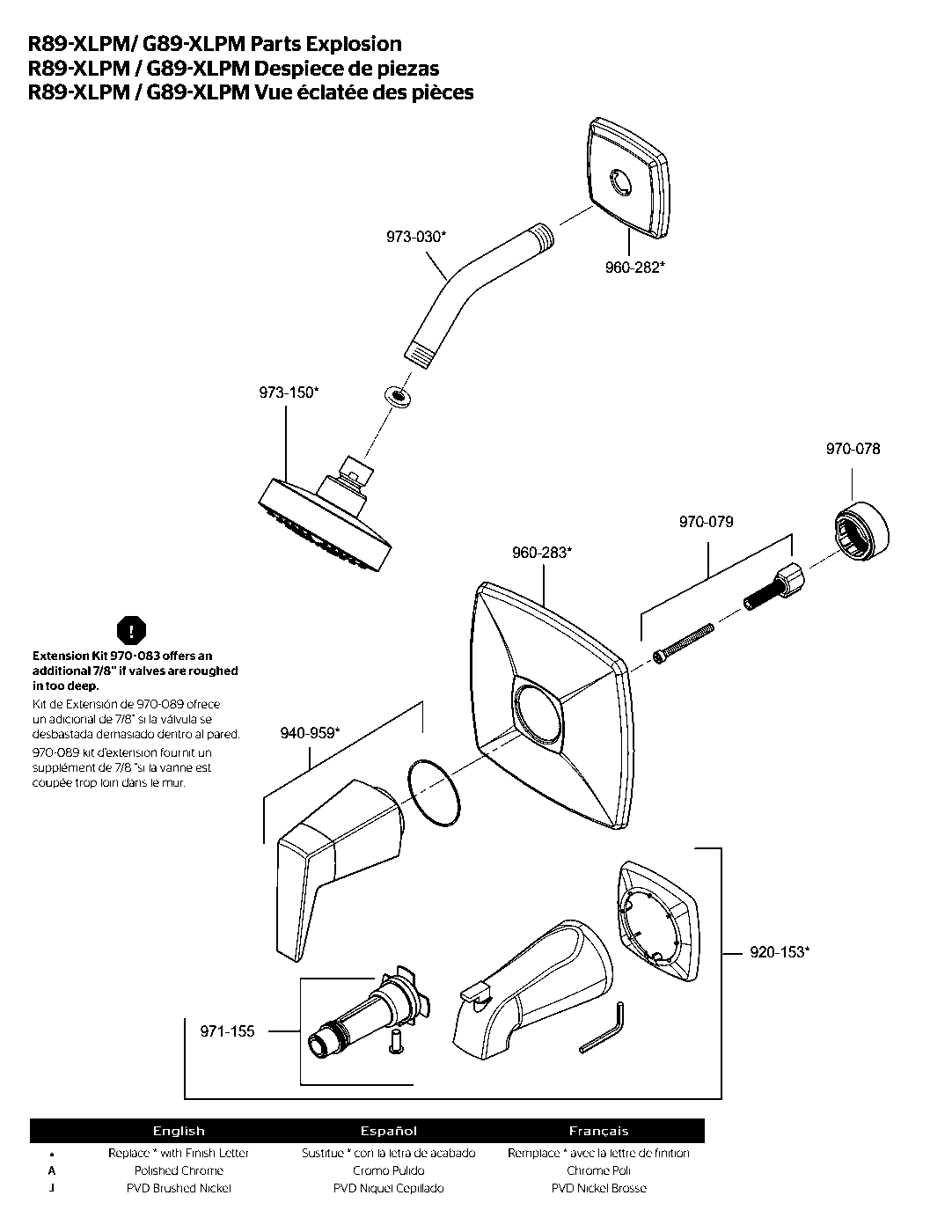

Arkitek 1-Handle Tub & Shower Trim Kit exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
920-153
Arkitek Tub Spt W/hex Wrnch G89 Ak
Verified fit On Pfister’s Arkitek 1-Handle Tub & Shower Trim Kit parts diagram
Arkitek 1-Handle Tub & Shower Trim Kit parts list
- 973-03011 finishes
Verified fit On Pfister’s parts diagram for this model
$28.90 - 960-2822 finishes
Verified fit On Pfister’s parts diagram for this model
$21.25 Verified fit On Pfister’s parts diagram for this model
Securepfit Plastic Adapter Nut
Verified fit On Pfister’s parts diagram for this model
$5.95Verified fit On Pfister’s parts diagram for this model
- 960-2832 finishes
Verified fit On Pfister’s parts diagram for this model
$45.90 Verified fit On Pfister’s parts diagram for this model
$78.20Shower Diverter Extension Kit for 15 Series
Verified fit On Pfister’s parts diagram for this model
$171.70- 940-9592 finishes
Verified fit On Pfister’s parts diagram for this model
$52.70 - 920-1532 finishes
Arkitek Tub Spt W/hex Wrnch G89 Ak
Verified fit On Pfister’s parts diagram for this model
$56.10 Universal Trim Tub Spt Adp Cu Adp Cu
Verified fit On Pfister’s parts diagram for this model
$20.40
About the Pfister Arkitek 1-Handle Tub & Shower Trim Kit
This sleek faucet is sculpted with a forward stance to travel down the path of new possibilities. The metropolitan design has been refined and tailored to interact harmoniously with countless environments. The Arkitek family offers a beautiful contrast of clean modern elegance and stirring visual angularity. Intended to quietly add design momentum to interior surroundings.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Valve body sold separately
- Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
- Wipe Clean Nozzles allows you to wipe away mineral deposits with the swipe of a finger
- 3-hole installation
- Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
- Hot/Cold indicator on trim
- Quick trim wall flange eliminates exposed screws and cuts installation time by 50%
- QuickConnect allows easy installation of the tub spout by slipping the adapter over a copper pipe and securing with a set screw
- Featuring SecurePfit™, fixed hub handle threads directly to the valve cartridge providing a more seamless design to the flange and eliminating any potential wobble.
| GPM Flow Rate | 2.0 |
|---|---|
| # of Handles | 1 |
| Functions Included | Wipe Clean Nozzles |
| Showerhead Diameter | 4-3/10 |
| Tub/Shower Diverter Type | Push/Pull |
Arkitek 1-Handle Tub & Shower Trim Kit parts questions
What cartridge does the Pfister Arkitek 1-Handle Tub & Shower Trim Kit (G89-8LPMC) use?
Pfister's parts diagram for the G89-8LPMC does not list a separate cartridge. The valve may be sold separately; check the valve model on the diagram or ask our counter.
How many replacement parts are on the G89-8LPMC diagram?
Pfister's parts diagram for the Arkitek 1-Handle Tub & Shower Trim Kit shows 11 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
G89-8LPMC, G89-8LPMK, LG89-8LPMK. The letters at the end of a Pfister model number are the finish.
