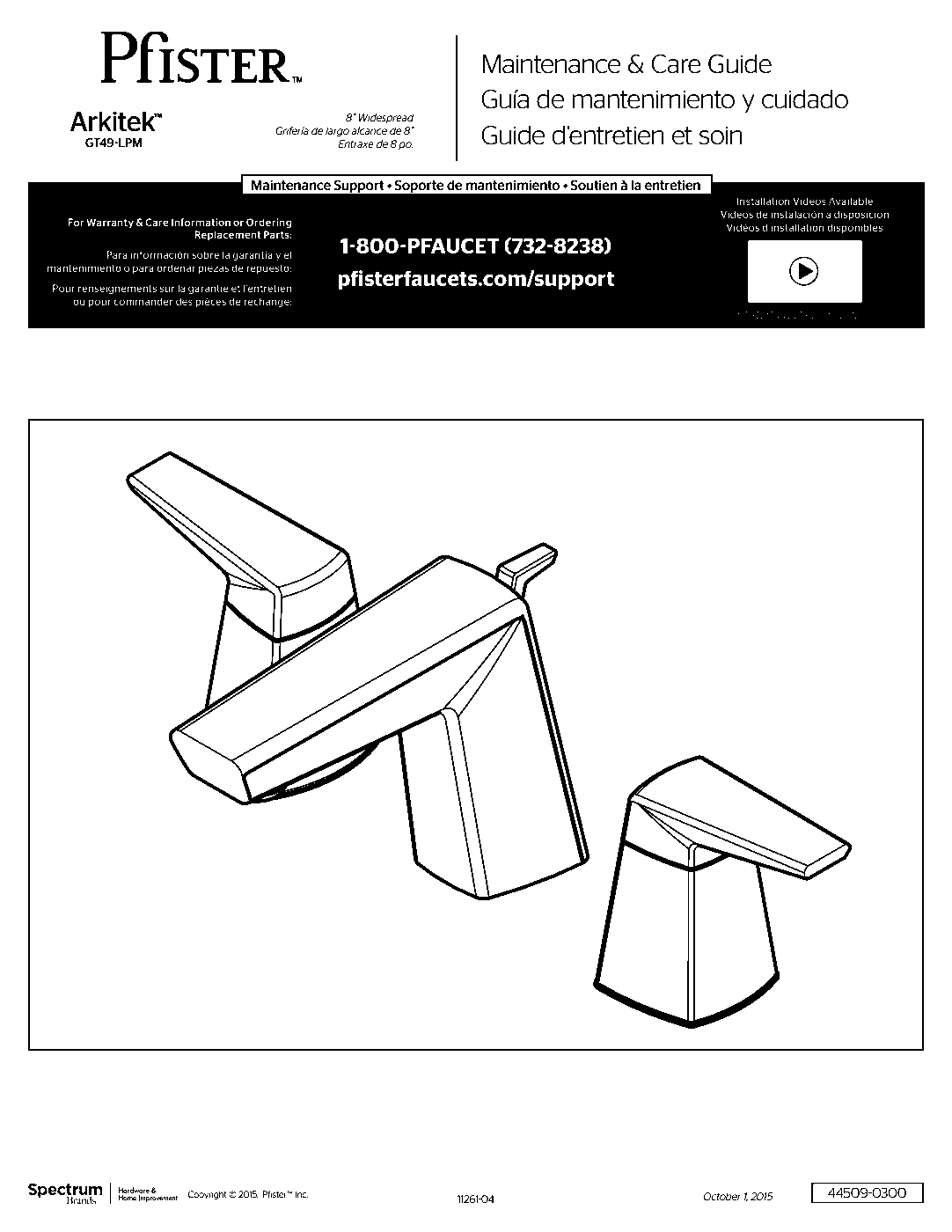

Arkitek 2-Handle 8" Widespread Bathroom Faucet parts diagram
Pfister · Bathroom Faucets / Widespread

Arkitek 2-Handle 8" Widespread Bathroom Faucet parts

1 part numbers on Pfister’s parts diagram. 0 in our catalog, the rest we order in.

Model numbers: GT49-LPMCGT49-LPMKLG49-LPMC

Open the diagramPfister’s PDF

Arkitek 2-Handle 8" Widespread Bathroom Faucet exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Arkitek 2-Handle 8" Widespread Bathroom Faucet exploded parts diagram

Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.

Arkitek 2-Handle 8" Widespread Bathroom Faucet parts list

About the Pfister Arkitek 2-Handle 8" Widespread Bathroom Faucet

This sleek faucet is sculpted with a forward stance to travel down the path of new possibilities. The metropolitan design has been refined and tailored to interact harmoniously with countless environments. The Arkitek family offers a beautiful contrast of clean modern elegance and stirring visual angularity. Intended to quietly add design momentum to interior surroundings.

  • Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
  • Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
  • Complies with Federal and State safe drinking water legislation.
  • Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
  • Faucet mounted on sink deck or countertop
  • Trade exclusive faucet
  • Includes metal supply nuts
  • Includes valve and cartridge
  • 3-hole installation
  • Features an all metal pop-up drain assembly
Specifications
GPM Flow Rate1.5
# of Handles2
Total Spout Height4-15/16
Deck To Aerator Height3-5/8
Drain AssemblyAmerican All Metal
Max Deck Thickness1-3/8
Configurations3-Hole

Arkitek 2-Handle 8" Widespread Bathroom Faucet parts questions

What cartridge does the Pfister Arkitek 2-Handle 8" Widespread Bathroom Faucet (GT49-LPMC) use?

Pfister's parts diagram for the GT49-LPMC does not list a separate cartridge. The valve may be sold separately; check the valve model on the diagram or ask our counter.

How many replacement parts are on the GT49-LPMC diagram?

Pfister's parts diagram for the Arkitek 2-Handle 8" Widespread Bathroom Faucet shows 1 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.

Which model numbers are covered on this page?

GT49-LPMC, GT49-LPMK, LG49-LPMC. The letters at the end of a Pfister model number are the finish.
