Deckard 1-Handle Roman Tub parts
14 part numbers on Pfister’s parts diagram. 14 in our catalog, the rest we order in.

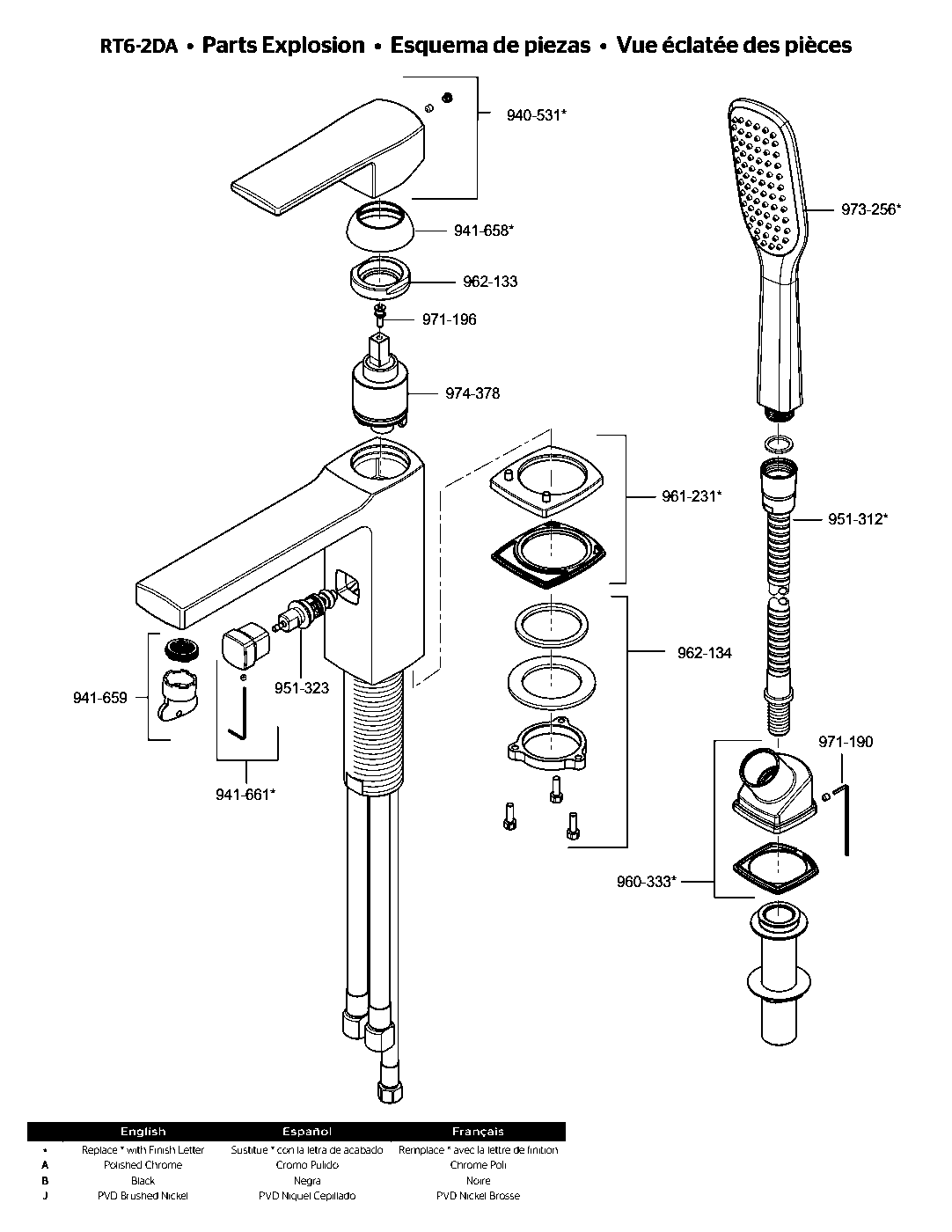

Deckard 1-Handle Roman Tub exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
971-190
Verified fit On Pfister’s Deckard 1-Handle Roman Tub parts diagram
Deckard 1-Handle Roman Tub parts list
- 940-5313 finishes
Deckard Hdl W/set Scr Rt6-1da/2da Rt6-1da/2da
Verified fit On Pfister’s parts diagram for this model
$30.60 - 973-2563 finishes
Verified fit On Pfister’s parts diagram for this model
$26.35 - 941-6583 finishes
Deckard Dome Cap Rt6-1da/2da Da
Verified fit On Pfister’s parts diagram for this model
$5.10 Deckard Lcknut 40mm Cart Rt6-1da /2da /2da
Verified fit On Pfister’s parts diagram for this model
$5.95Stm Ext M4x0.7 42 Nct/da ..8gpm
Verified fit On Pfister’s parts diagram for this model
$4.25Ceramic Disc Cartridge for Rt61mf/lg61mf
Verified fit On Pfister’s parts diagram for this model
$26.35- 961-2313 finishes
Deckard Dkplt W/putty Plt-foam Rt6-1da/2da
Verified fit On Pfister’s parts diagram for this model
$11.05 - 951-3123 finishes
Verified fit On Pfister’s parts diagram for this model
$11.90 Deckard Mntg Hdw Assy Rt6-1da/2da Rt6-1da/2da
Verified fit On Pfister’s parts diagram for this model
$9.35Deckard Dvtr S/a 2h Rt6-2da ..8gpm
Verified fit On Pfister’s parts diagram for this model
$9.35Flw Reg And Key Rt6-1da/2da/5da Rt6-1da/2da/5da
Verified fit On Pfister’s parts diagram for this model
$7.65Verified fit On Pfister’s parts diagram for this model
$0.85- 941-6613 finishes
Verified fit On Pfister’s parts diagram for this model
$6.80 - 960-3333 finishes
Deckard Hndshwr Flg Rt6-2da Da
Verified fit On Pfister’s parts diagram for this model
$17.85
About the Pfister Deckard 1-Handle Roman Tub
The Deckard collection embodies soft-modern design by incorporating curves into the familiar sleek, hard-edge motif of modern aesthetics. The clean, horizontal lines in this design create a precise aesthetic as the contrasting subtle curves offer balance. The small footprint of this faucet and the thin profile of the spout and handle make this a clean design that is optimum for any modern space.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
- Includes coordinating tub Hand Shower
- 2-hole installation
- Mid-arc spout to help provide easy access
- Includes single post mounting ring for 1-hole installation
- No Additional Valve Required
| GPM Flow Rate | 8.0 |
|---|---|
| # of Handles | 1 |
| Total Spout Height | 8-11/16 |
| Deck To Aerator Height | 5-11/16 |
| Roman Tub Valve Included | true |
| Faucet Arc Type | Medium-Arc |
Deckard 1-Handle Roman Tub parts questions
What cartridge does the Pfister Deckard 1-Handle Roman Tub (RT6-2DAB) use?
Pfister's parts diagram for the RT6-2DAB lists 974-378 (Ceramic Disc Cartridge for Rt61mf/lg61mf).
How many replacement parts are on the RT6-2DAB diagram?
Pfister's parts diagram for the Deckard 1-Handle Roman Tub shows 14 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
RT6-2DAB, RT6-2DAC, RT6-2DAK. The letters at the end of a Pfister model number are the finish.
