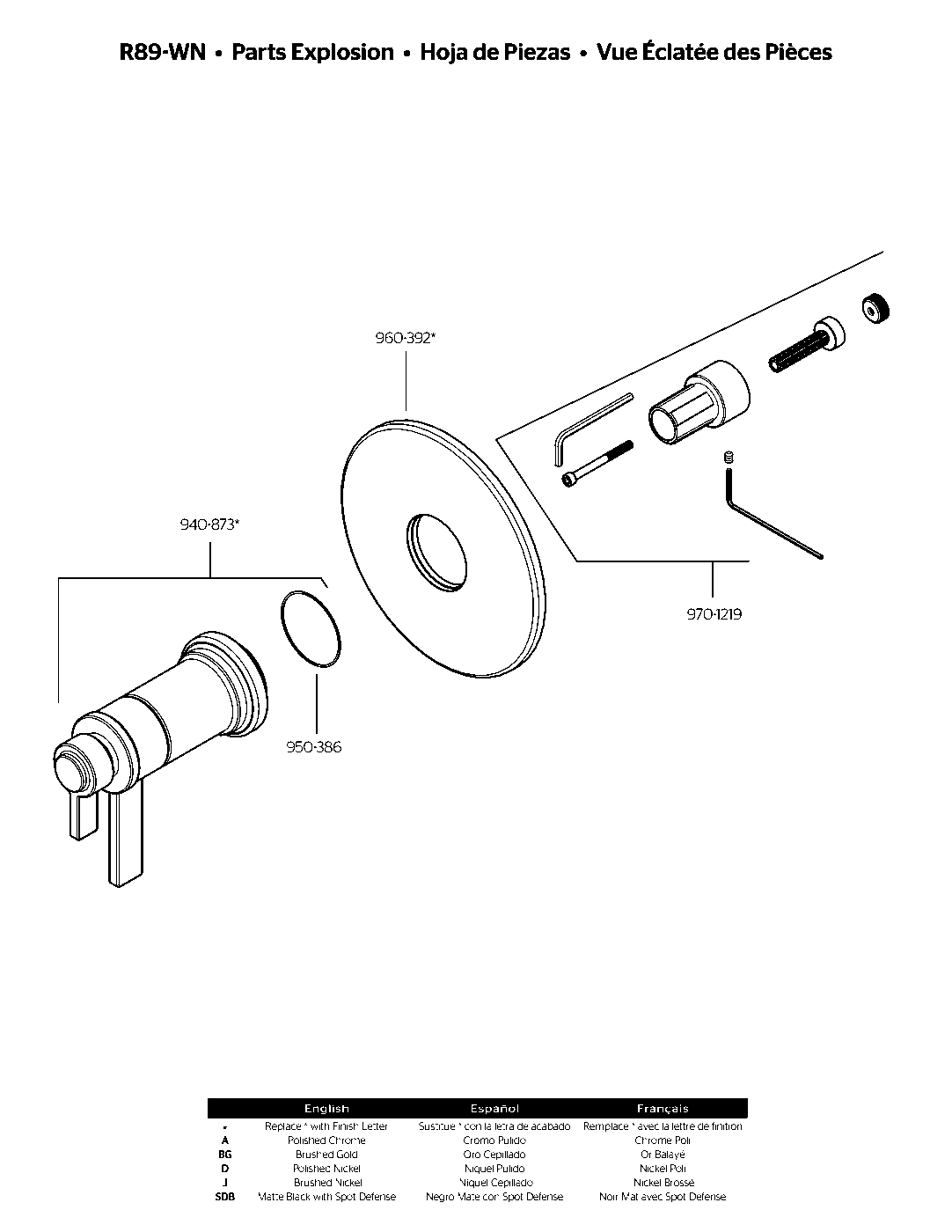

Winter Park Thermostatic Trim Kit exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
970-1219
Verve Stm Adpt Scr W/hx Wrnch Thermo Vrv
Verified fit On Pfister’s Winter Park Thermostatic Trim Kit parts diagram
Winter Park Thermostatic Trim Kit parts list
Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
Verve Stm Adpt Scr W/hx Wrnch Thermo Vrv
Verified fit On Pfister’s parts diagram for this model
$68.85Verified fit On Pfister’s parts diagram for this model
About the Pfister Winter Park Thermostatic Trim Kit
The refined Winter Park™ collection is a modern take on traditional design. Coining details update classic silhouettes, and clean lines blend into stepped bases. Every component is carefully executed and purposefully placed, delivering a bold, balanced look for the contemporary home.
- All Metal Construction
- Featuring SecurePfit™, fixed hub handle threads directly to the valve cartridge providing a more seamless design to the flange and eliminating any potential wobble
- Back Handle Controls Volume
- Front handle Controls Temperature
- Must order TX9 Valve Separately
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- SecurePfit®
- All Metal Construction
| # of Handles | 2 |
|---|
Winter Park Thermostatic Trim Kit parts questions
What cartridge does the Pfister Winter Park Thermostatic Trim Kit (R89-WNBG) use?
Pfister's parts diagram for the R89-WNBG does not list a separate cartridge. The valve may be sold separately; check the valve model on the diagram or ask our counter.
How many replacement parts are on the R89-WNBG diagram?
Pfister's parts diagram for the Winter Park Thermostatic Trim Kit shows 4 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
R89-WNBG, R89-WNC, R89-WND, R89-WNK, R89-WNSDB, TX9-0001, TX9-310A, TX9-340A. The letters at the end of a Pfister model number are the finish.
