Highbury 1-Handle Pull-Down Kitchen Faucet parts
16 part numbers on Pfister’s parts diagram. 16 in our catalog, the rest we order in.

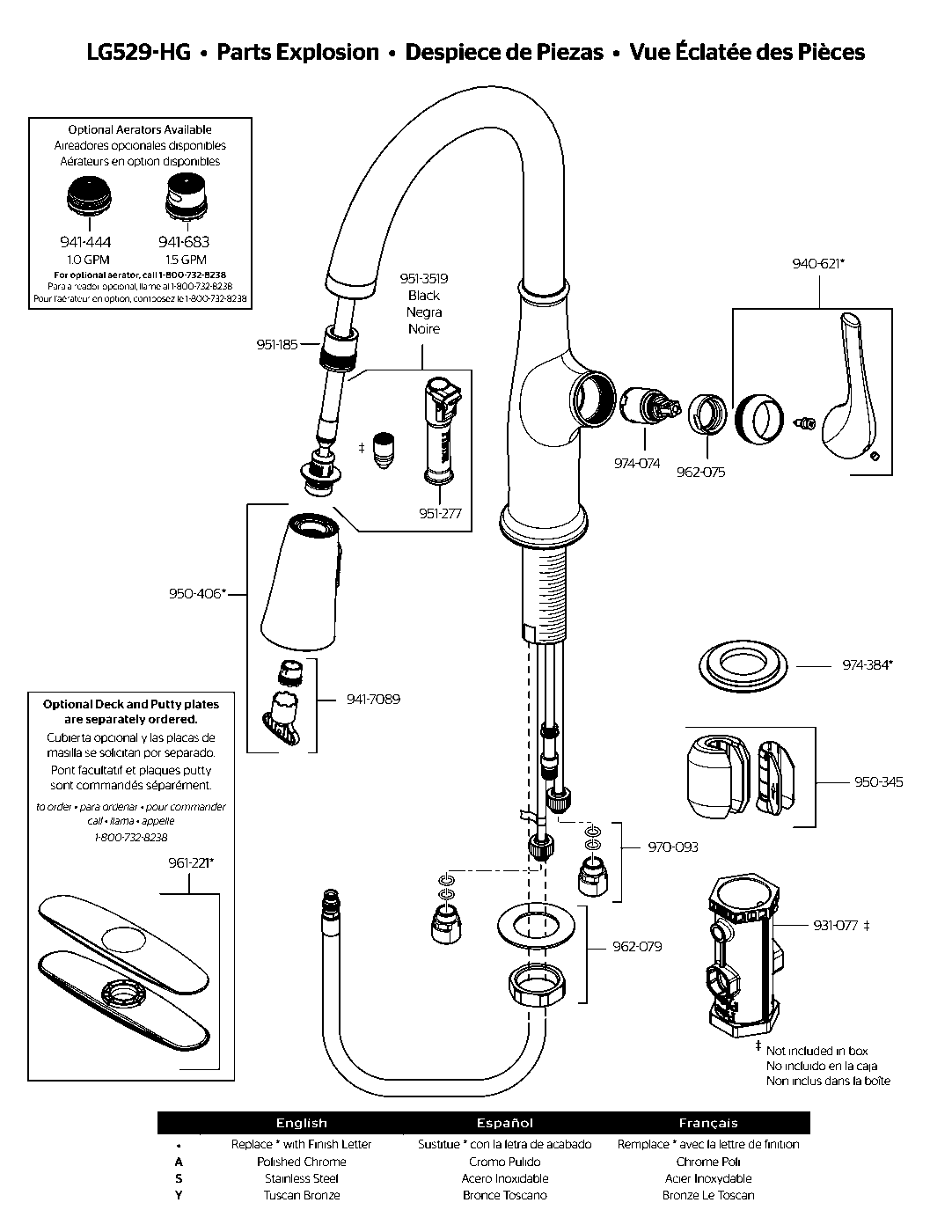

Highbury 1-Handle Pull-Down Kitchen Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
950-345
Verified fit On Pfister’s Highbury 1-Handle Pull-Down Kitchen Faucet parts diagram
Highbury 1-Handle Pull-Down Kitchen Faucet parts list
Verified fit On Pfister’s parts diagram for this model
$13.60Verified fit On Pfister’s parts diagram for this model
$7.65- 940-6214 finishes
Highbury Hdl W/ext-dome Cap-scr 529 Hg 529 Hg
Verified fit On Pfister’s parts diagram for this model
$26.35 Highbury P/o Hs W/q/c 529 Hg C 529 Hg
Verified fit On Pfister’s parts diagram for this model
$43.35Verified fit On Pfister’s parts diagram for this model
$5.95Verified fit On Pfister’s parts diagram for this model
$20.40Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
$16.15- 950-4063 finishes
Verified fit On Pfister’s parts diagram for this model
$45.05 - 974-3846 finishes
Raya Base Rng W/putty Plt 1h 529 Ry 529 Ry
Verified fit On Pfister’s parts diagram for this model
$10.20 Aer W/key Cache Tt F/flw F/flw
Verified fit On Pfister’s parts diagram for this model
$11.90Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
$5.95- 961-2214 finishes
Dkplt W/putty Plt-foam 3h 529 Dm
Verified fit On Pfister’s parts diagram for this model
$38.25 Kitchen and Lavatory Installation Tool
Verified fit On Pfister’s parts diagram for this model
$13.60Lock Nut and Washer For Elevate 529 Series Faucet, metal
Verified fit On Pfister’s parts diagram for this model
$15.30
About the Pfister Highbury 1-Handle Pull-Down Kitchen Faucet
The new traditional aesthetic is softer than previous generations. Like a raised eyebrow above classic bone structure, Highbury invites you in on the secret of lasting style: clean, proportionate lines with just enough detail to stand out in any gathering. Lingering brunch, anyone?
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
- Complies with Federal and State safe drinking water legislation.
- Optional decorative deck plate sold separately
- 1-hole installation
- High arc spout for added clearance and reach
- Pull-down spray head, select from 3 water settings conveniently in the palm of your hand
- Advanced spray head docking system ensures a secure, tight connection to the faucet spout
- Elegant forward handle design underscores ergonomic function and helps where space behind the faucet is limited
- HydroBlade’s™ high pressure water blade uses concentrated force to clean away tough messes
| GPM Flow Rate | 1.8 |
|---|---|
| # of Handles | 1 |
| Total Spout Height | 16-13/16 |
| Deck To Aerator Height | 8-13/16 |
| Deckplate Included | No |
| Max Deck Thickness | 3 |
| Soap Dispenser | No |
| Spray Functions | Spray, Stream, HydroBlade |
| Pull-Out/Down Hose Length | 13.5 |
| Pull-Out/Down Hose Material | Braided Nylon |
| Faucet Arc Type | High-Arc |
| Configurations | 1-Hole |
Highbury 1-Handle Pull-Down Kitchen Faucet parts questions
What cartridge does the Pfister Highbury 1-Handle Pull-Down Kitchen Faucet (LG529-HGC) use?
Pfister's parts diagram for the LG529-HGC lists 974-074 (Ceramic Disc Cartridge), 962-075 (Cartridge Retainer Nut).
How many replacement parts are on the LG529-HGC diagram?
Pfister's parts diagram for the Highbury 1-Handle Pull-Down Kitchen Faucet shows 16 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
LG529-HGC, LG529-HGS, LG529-HGY. The letters at the end of a Pfister model number are the finish.
