Pfister Winter Park 2-Handle 8" Widespread Bathroom Faucet in Brushed Gold
Pfister · Bathroom Faucets / Widespread

Winter Park 2-Handle 8" Widespread Bathroom Faucet parts

17 part numbers on Pfister’s parts diagram. 15 in our catalog, the rest we order in.

Model numbers: LG49-WN1BGLG49-WN1CLG49-WN1DLG49-WN1KLG49-WN1SDB

Open the diagramShop this faucetPfister’s PDF

Winter Park 2-Handle 8" Widespread Bathroom Faucet exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

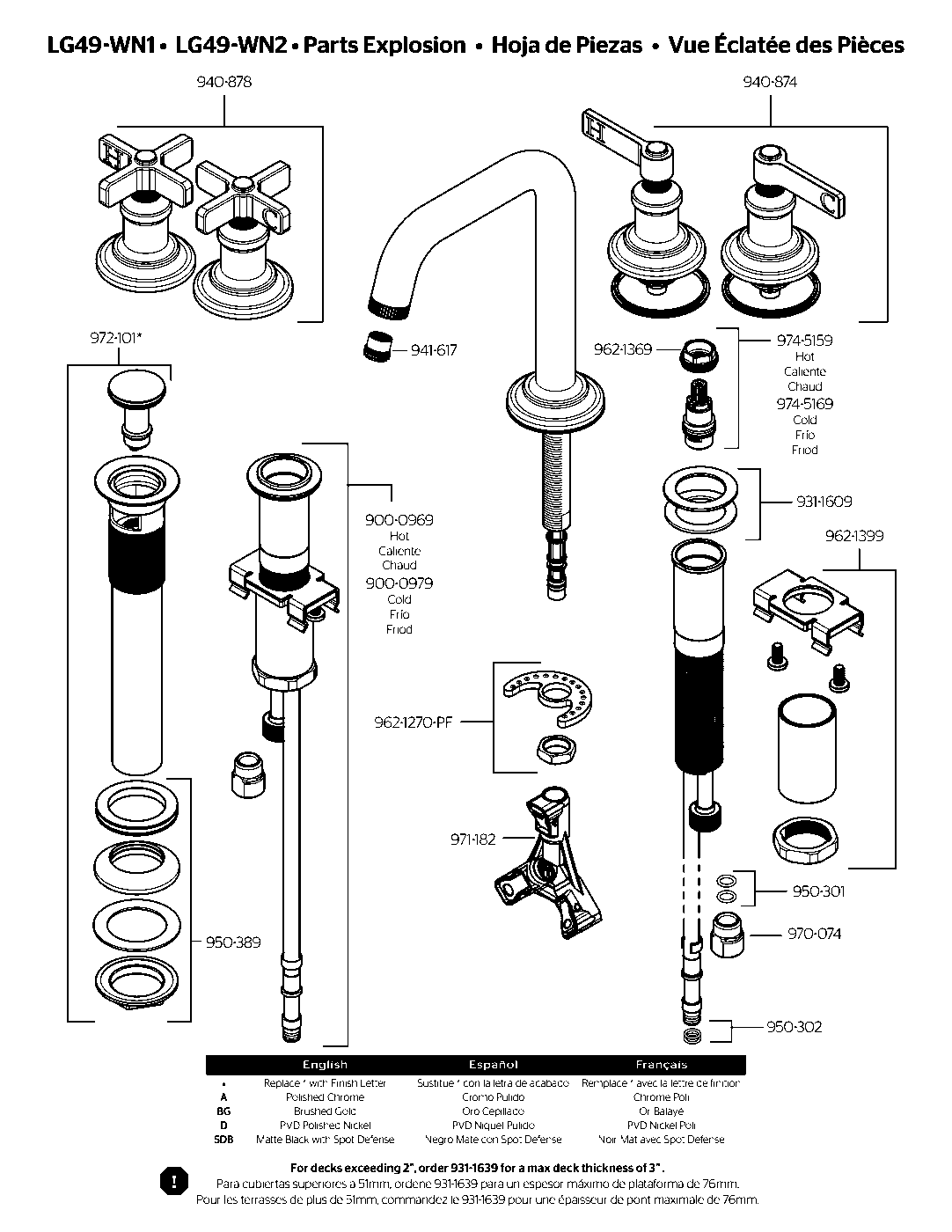

Winter Park 2-Handle 8" Widespread Bathroom Faucet exploded parts diagram

Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.

Winter Park 2-Handle 8" Widespread Bathroom Faucet parts list

About the Pfister Winter Park 2-Handle 8" Widespread Bathroom Faucet

The refined Winter Park™ collection is a modern take on traditional design. Coining details update classic silhouettes, and clean lines blend into stepped bases. Every component is carefully executed and purposefully placed, delivering a bold, balanced look for the contemporary home.

  • Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
  • UltraSeal™—advanced ceramic disc valve technology with a never leak guarantee
  • Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
  • Faucet mounted on sink deck or countertop
  • 3-hole installation
  • Features an all metal Push & Seal drain assembly
  • Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
  • All Metal Construction
  • Adjustable Widespread
  • Push & Seal Drain®
Specifications
GPM Flow Rate1.2
# of Handles2
Total Spout Height8-5/16
Deck To Aerator Height5-7/8
Drain AssemblyAmerican All Metal Push & Seal
Max Deck Thickness3
Configurations3-Hole

Winter Park 2-Handle 8" Widespread Bathroom Faucet parts questions

What cartridge does the Pfister Winter Park 2-Handle 8" Widespread Bathroom Faucet (LG49-WN1BG) use?

Pfister's parts diagram for the LG49-WN1BG does not list a separate cartridge. The valve may be sold separately; check the valve model on the diagram or ask our counter.

How many replacement parts are on the LG49-WN1BG diagram?

Pfister's parts diagram for the Winter Park 2-Handle 8" Widespread Bathroom Faucet shows 17 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.

Which model numbers are covered on this page?

LG49-WN1BG, LG49-WN1C, LG49-WN1D, LG49-WN1K, LG49-WN1SDB. The letters at the end of a Pfister model number are the finish.
