Pfister Winfield 2-Handle 8" Widespread Bathroom Faucet in Polished Chrome
Pfister · Bathroom Faucets / Widespread

Winfield 2-Handle 8" Widespread Bathroom Faucet parts

23 part numbers on Pfister’s parts diagram. 15 in our catalog, the rest we order in.

Model numbers: LG49-WF0CLG49-WF0KLG49-WF0Y

Open the diagramShop this faucetPfister’s PDF
Dripping or hard to turn? The usual fix on this model is the or .

Winfield 2-Handle 8" Widespread Bathroom Faucet exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

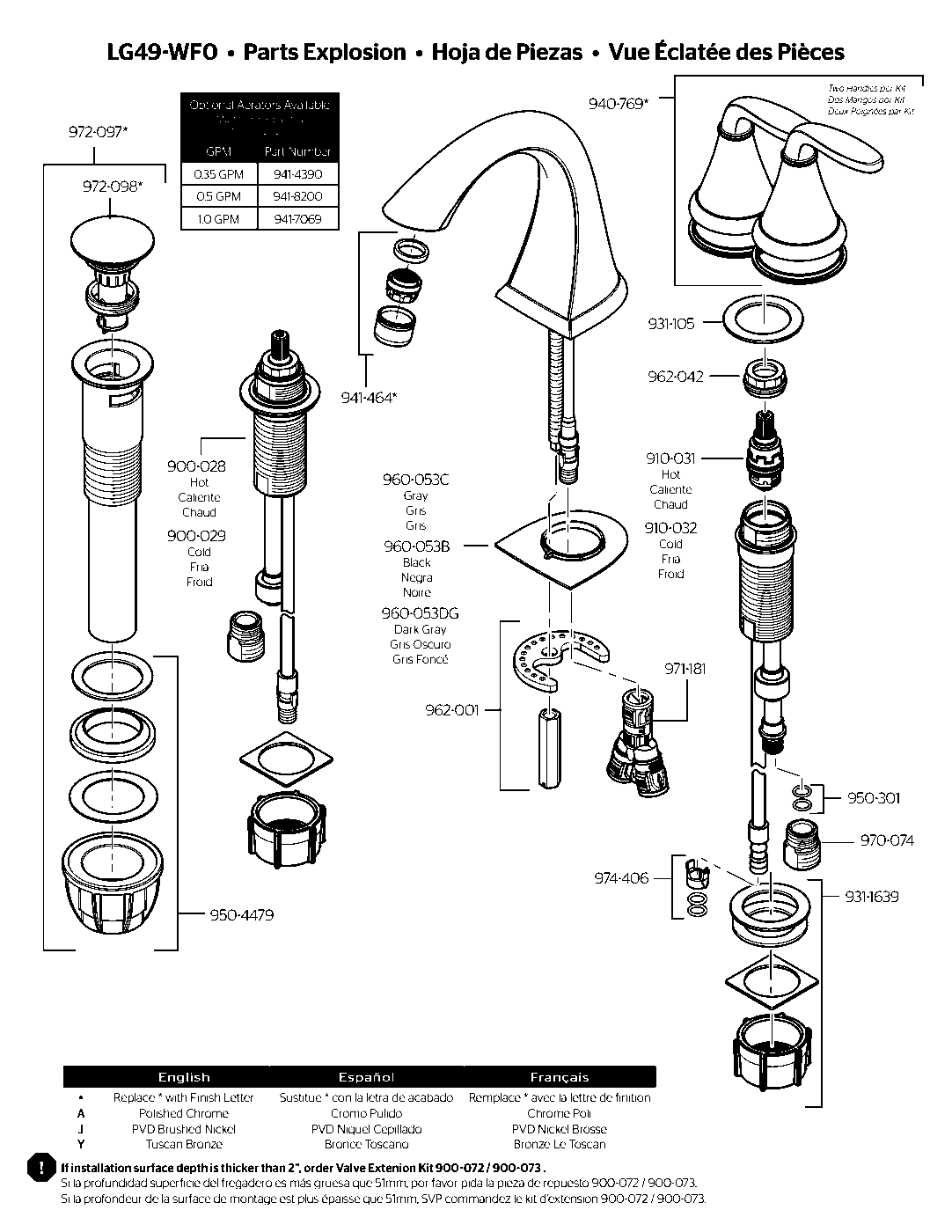

Winfield 2-Handle 8" Widespread Bathroom Faucet exploded parts diagram

941-464

Aer W/hsg-wshr

Verified fit On Pfister’s Winfield 2-Handle 8" Widespread Bathroom Faucet parts diagram

$13.60

Winfield 2-Handle 8" Widespread Bathroom Faucet parts list

About the Pfister Winfield 2-Handle 8" Widespread Bathroom Faucet

The Winfield bathroom collection offers a design that complements a variety of home styles. Clean curves and a solid foundation make this family of products a favorable choice for any setting. Winfield offers a range of faucet, tub and shower, and accessory options in three popular finishes that are a perfect fit for all projects.

  • Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
  • Pforever Seal™—advanced ceramic disc valve technology with a never leak guarantee
  • Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
  • Faucet mounted on sink deck or countertop
  • Pfast Connect™ reduces installation time and guarantees a secure connection to water supply lines
  • Includes valve and cartridge
  • 3-hole installation
  • Push & Seal™ drain requires no tools and installs in less than half the time of a standard pop-up drain, Guaranteed tight seal each and every use - simply press to seal and again to open
  • Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
  • Adjustable Widespread
Specifications
GPM Flow Rate1.2
# of Handles2
Total Spout Height5-25/32
Deck To Aerator Height4-7/32
Drain AssemblyAmerican Push & Seal
Max Deck Thickness2
Configurations3-Hole

Winfield 2-Handle 8" Widespread Bathroom Faucet parts questions

What cartridge does the Pfister Winfield 2-Handle 8" Widespread Bathroom Faucet (LG49-WF0C) use?

Pfister's parts diagram for the LG49-WF0C lists 962-042 (Cartridge Retainer Nut), 910-031 (Ceramic Disc Hot Side 1/4 Turn Cartridge), 910-032 (Ceramic Disc Cold Side 1/4 Turn Cartridge).

How many replacement parts are on the LG49-WF0C diagram?

Pfister's parts diagram for the Winfield 2-Handle 8" Widespread Bathroom Faucet shows 23 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.

Which model numbers are covered on this page?

LG49-WF0C, LG49-WF0K, LG49-WF0Y. The letters at the end of a Pfister model number are the finish.
