Tisbury 2-Handle 8" Widespread Bathroom Faucet parts diagram
Pfister · Bathroom Faucets / Widespread

Tisbury 2-Handle 8" Widespread Bathroom Faucet parts

16 part numbers on Pfister’s parts diagram. 11 in our catalog, the rest we order in.

Model numbers: LG49-TB0TCBGLG49-TB0TCCLG49-TB0TCDLG49-TB0TCKLG49-TB0TCSDB

Open the diagramPfister’s PDF

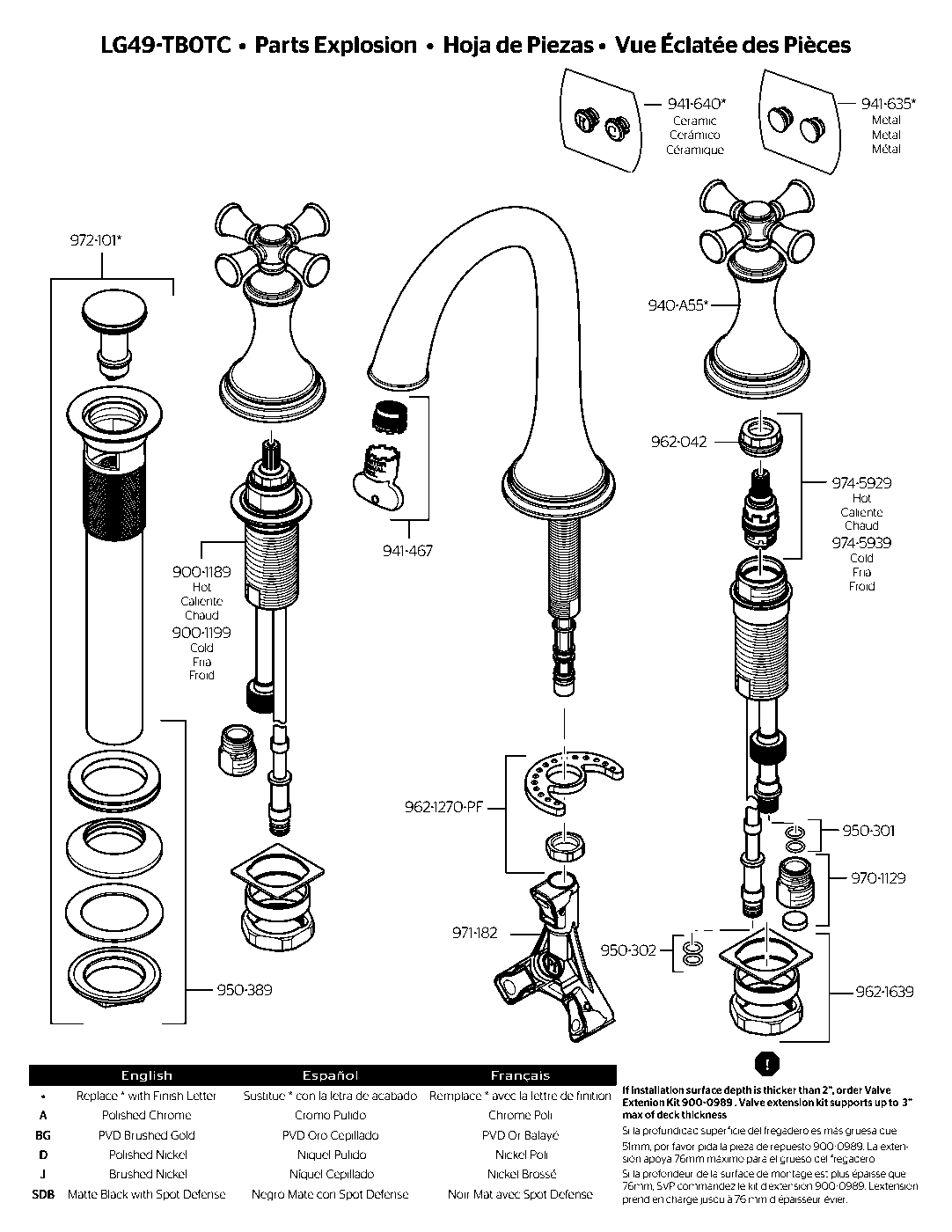

Tisbury 2-Handle 8" Widespread Bathroom Faucet exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Tisbury 2-Handle 8" Widespread Bathroom Faucet exploded parts diagram

941-640

Tisbury Crmc Cap Kit Ts

Verified fit On Pfister’s Tisbury 2-Handle 8" Widespread Bathroom Faucet parts diagram

$11.90

Tisbury 2-Handle 8" Widespread Bathroom Faucet parts list

About the Pfister Tisbury 2-Handle 8" Widespread Bathroom Faucet

Tisbury is the ultimate classic bath collection. Grace in action, this expansive line of extraordinary fixtures and faucets showcase complementary elements ranging from robe hooks to free-standing tub fillers. Styled with the elegance of golden-era travel, each piece is made of all-metal construction for lasting performance and effortless functionality. The very best of old-world craftsmanship ble

  • The traditional style takes its cues from past centuries, incorporating the classics with history
  • Constructed from premium metal for durability
  • Elegant forward-handle design underscores ergonomic function and helps where space behind the faucet is limited
  • Features an all metal pop-up drain assembly
  • Pfast Connect™ reduces installation time and guarantees a secure connection to water supply lines
  • 3-hole installation
  • TiteSeal™ mounting technology eliminates the need for putty or silicone and simplifies installation
  • Water flows at 1.2 gallons per minute, creating a strong, consistent flow while minimizing water waste
  • Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
  • Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
Specifications
GPM Flow Rate1.2
# of Handles2
Total Spout Height8-9/16
Deck To Aerator Height5-21/32
Deckplate IncludedNo
Drain AssemblyAmerican All Metal Push & Seal
Max Deck Thickness2
Configurations3-Hole

Tisbury 2-Handle 8" Widespread Bathroom Faucet parts questions

What cartridge does the Pfister Tisbury 2-Handle 8" Widespread Bathroom Faucet (LG49-TB0TCBG) use?

Pfister's parts diagram for the LG49-TB0TCBG lists 962-042 (Cartridge Retainer Nut).

How many replacement parts are on the LG49-TB0TCBG diagram?

Pfister's parts diagram for the Tisbury 2-Handle 8" Widespread Bathroom Faucet shows 16 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.

Which model numbers are covered on this page?

LG49-TB0TCBG, LG49-TB0TCC, LG49-TB0TCD, LG49-TB0TCK, LG49-TB0TCSDB. The letters at the end of a Pfister model number are the finish.
