Rhen 2-Handle 8" Widespread Bathroom Faucet parts
19 part numbers on Pfister’s parts diagram. 18 in our catalog, the rest we order in.
Model numbers: LG49-RH1BLG49-RH1BGLG49-RH1CLG49-RH1KLG49-RH3K

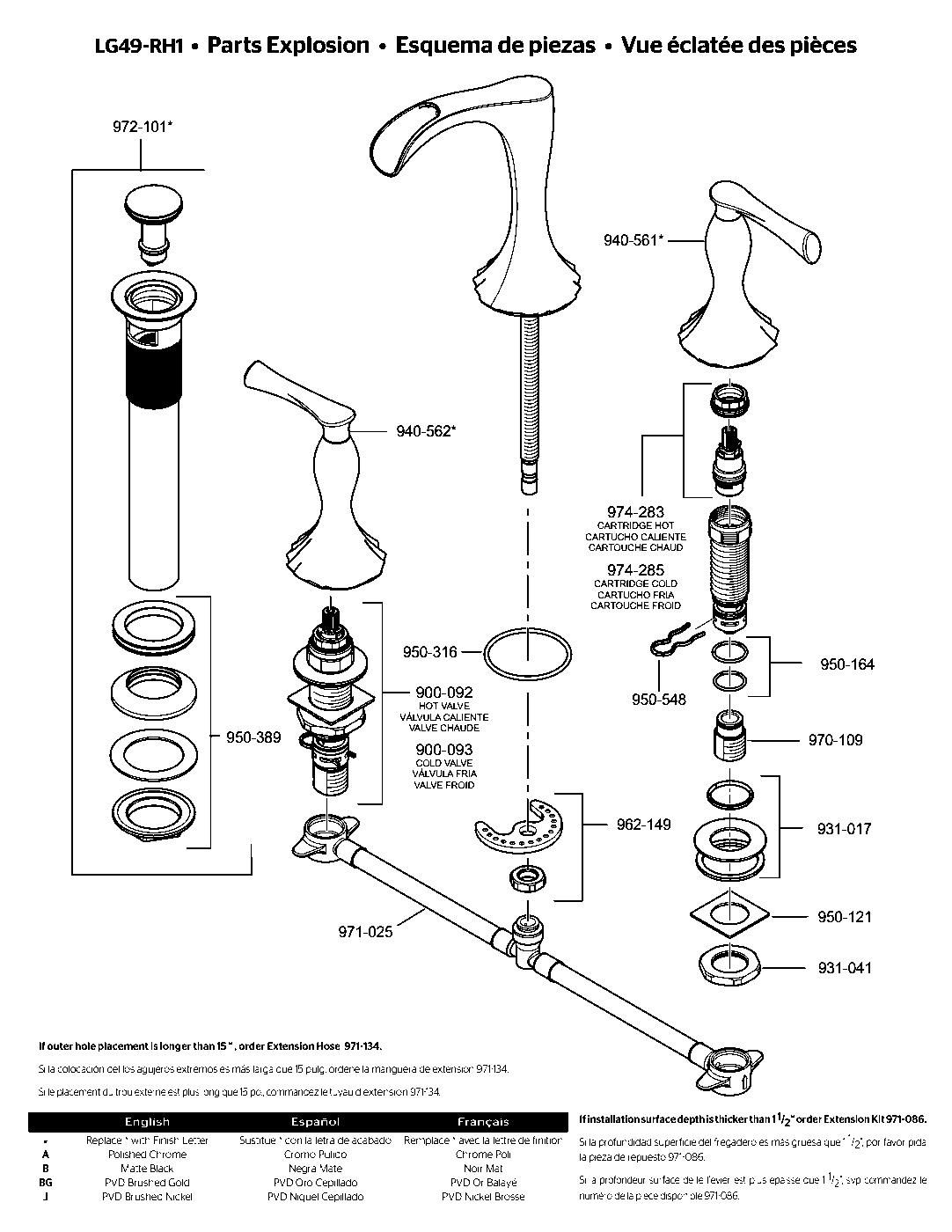

Rhen 2-Handle 8" Widespread Bathroom Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
900-093
Vlv Qtr Turn Mtl C 49-ser Ldf 49-ser Ldf
Verified fit On Pfister’s Rhen 2-Handle 8" Widespread Bathroom Faucet parts diagram
Rhen 2-Handle 8" Widespread Bathroom Faucet parts list
- 972-1016 finishes
Verified fit On Pfister’s parts diagram for this model
$96.90 - 940-5614 finishes
Verified fit On Pfister’s parts diagram for this model
$100.30 - 940-5624 finishes
Verified fit On Pfister’s parts diagram for this model
$100.30 Metal 1/4 Turn Cartridge - Hot Side
Verified fit On Pfister’s parts diagram for this model
$33.15Metal 1/4 Turn Cartridge - Cold Side
Verified fit On Pfister’s parts diagram for this model
$33.15Verified fit On Pfister’s parts diagram for this model
$2.55Verified fit On Pfister’s parts diagram for this model
$6.80Vlv Qtr Turn Mtl H 49-ser Ldf 49-ser Ldf
Verified fit On Pfister’s parts diagram for this model
$74.80Verified fit On Pfister’s parts diagram for this model
$5.95Mtl Psh-seal Mntg Nut W/seal-gskt W/seal-gskt
Verified fit On Pfister’s parts diagram for this model
$11.05Ilt Conn W/scrn 49-ser Ldf Ldf
Verified fit On Pfister’s parts diagram for this model
$11.05Vlv Qtr Turn Mtl C 49-ser Ldf 49-ser Ldf
Verified fit On Pfister’s parts diagram for this model
$74.80Replacement Mounting Bracket for Ashfield Series Bathroom Faucet
Verified fit On Pfister’s parts diagram for this model
$7.65Verified fit On Pfister’s parts diagram for this model
$6.80Verified fit On Pfister’s parts diagram for this model
$6.80Quick Connect Hose Assembly for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$33.15Sput Locknut for 26/49/531 Series
Verified fit On Pfister’s parts diagram for this model
$6.80Verified fit On Pfister’s parts diagram for this model
Widespread 49 Series Extension Kit
Verified fit On Pfister’s parts diagram for this model
$123.25
About the Pfister Rhen 2-Handle 8" Widespread Bathroom Faucet
A curvy silhouette gives the Rhen collection breathtaking beauty. Part sculpture, part engineering achievement, Rhen pushes the boundaries of water delivery and everyday tasks while looking elegant. Update your bathroom with this expansive line of exceptional fixtures.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- UltraSeal™—advanced ceramic disc valve technology with a never leak guarantee
- Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
- Faucet mounted on sink deck or countertop
- 3-hole installation
- Features an all metal Push & Seal drain assembly
- Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
- Adjustable Widespread
- All Metal Construction
- Pfast Connect Side Clip
| GPM Flow Rate | 1.2 |
|---|---|
| # of Handles | 2 |
| Total Spout Height | 7-13/32 |
| Deck To Aerator Height | 6-5/32 |
| Drain Assembly | American All Metal Push & Seal |
| Max Deck Thickness | 1-5/16 |
| Configurations | 3-Hole |
Rhen 2-Handle 8" Widespread Bathroom Faucet parts questions
What cartridge does the Pfister Rhen 2-Handle 8" Widespread Bathroom Faucet (LG49-RH1B) use?
Pfister's parts diagram for the LG49-RH1B lists 974-283 (Metal 1/4 Turn Cartridge - Hot Side), 974-285 (Metal 1/4 Turn Cartridge - Cold Side).
How many replacement parts are on the LG49-RH1B diagram?
Pfister's parts diagram for the Rhen 2-Handle 8" Widespread Bathroom Faucet shows 19 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
LG49-RH1B, LG49-RH1BG, LG49-RH1C, LG49-RH1K, LG49-RH3K. The letters at the end of a Pfister model number are the finish.
