Havenridge 2-Handle 8" Widespread Bathroom Faucet parts diagram
Pfister · Bathroom Faucets / Widespread

Havenridge 2-Handle 8" Widespread Bathroom Faucet parts

16 part numbers on Pfister’s parts diagram. 11 in our catalog, the rest we order in.

Model numbers: LG49-HV0BGLG49-HV0CLG49-HV0DLG49-HV0GSLG49-HV0SDB

Open the diagramPfister’s PDF
Dripping or hard to turn? The usual fix on this model is the or .

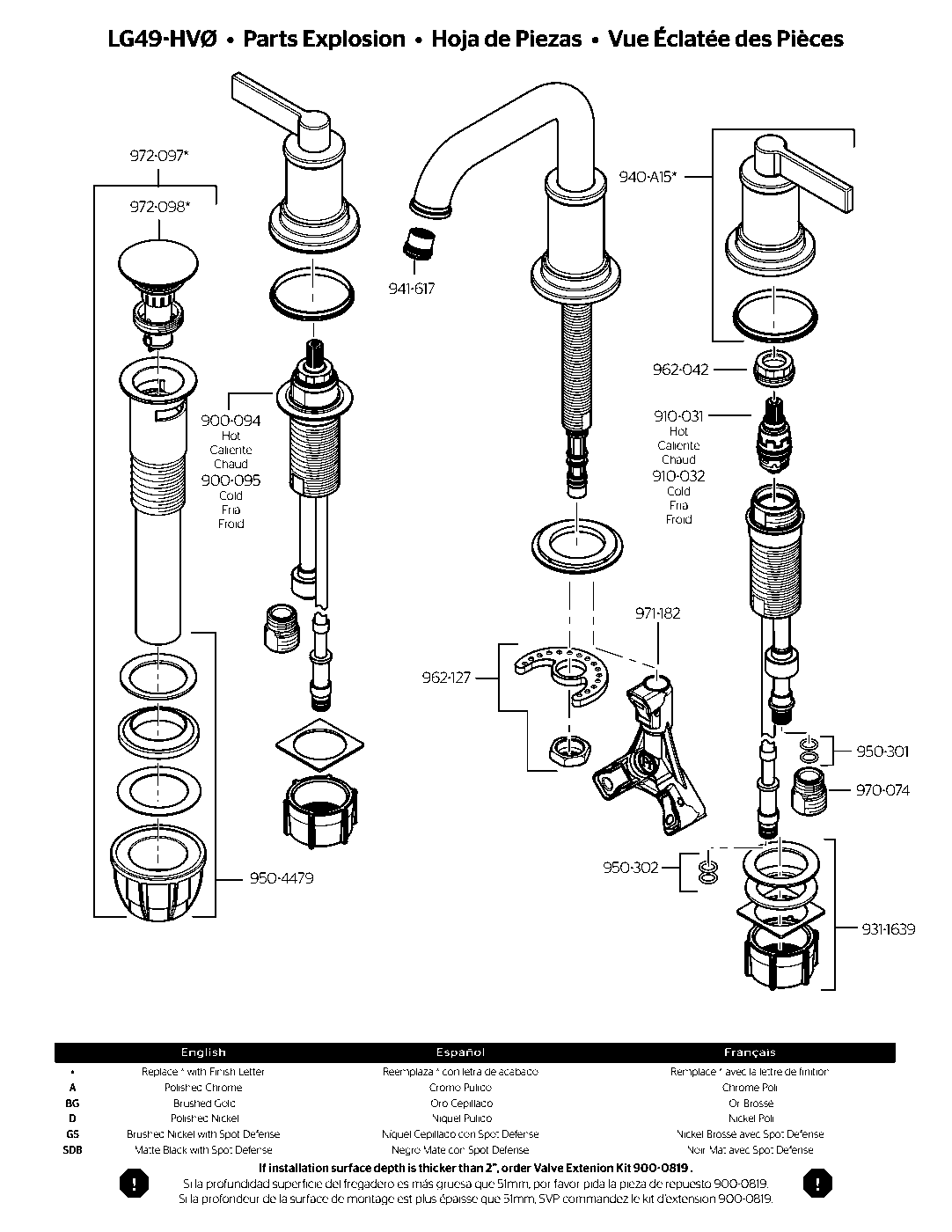

Havenridge 2-Handle 8" Widespread Bathroom Faucet exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Havenridge 2-Handle 8" Widespread Bathroom Faucet exploded parts diagram

972-098

Push & Seal Drain Stopper without Logo in Polished Chrome

Verified fit On Pfister’s Havenridge 2-Handle 8" Widespread Bathroom Faucet parts diagram

$11.90

Havenridge 2-Handle 8" Widespread Bathroom Faucet parts list

About the Pfister Havenridge 2-Handle 8" Widespread Bathroom Faucet

Elevate your kitchen and bath spaces with the traditional style of Havenridge™. Minimalist industrial design evokes an era of urban simplicity, while offering the modern features and functionality you demand.

  • Water flows at 1.2 gallons per minute, creating a strong, consistent flow while minimizing water waste
  • Push & Seal™ Drain requires no tools and installs in less than half the time of a standard pop-up drain; guaranteed tight seal each and every use - simply press to seal and again to open
  • Pfast Connect™ reduces installation time and guarantees a secure connection to water supply lines
  • TiteSeal™ mounting technology eliminates the need for putty or silicone and simplifies installation
  • Fixed hubs for smooth handle rotation
  • Push & Seal Drain®
  • Pforever Seal®
  • Pfast Connect
Specifications
GPM Flow Rate1.2
# of Handles2
Total Spout Height6-3/16
Deck To Aerator Height4-9/16
Deckplate IncludedNo
Drain AssemblyAmerican Push & Seal
Configurations3-Hole

Havenridge 2-Handle 8" Widespread Bathroom Faucet parts questions

What cartridge does the Pfister Havenridge 2-Handle 8" Widespread Bathroom Faucet (LG49-HV0BG) use?

Pfister's parts diagram for the LG49-HV0BG lists 962-042 (Cartridge Retainer Nut), 910-031 (Ceramic Disc Hot Side 1/4 Turn Cartridge), 910-032 (Ceramic Disc Cold Side 1/4 Turn Cartridge).

How many replacement parts are on the LG49-HV0BG diagram?

Pfister's parts diagram for the Havenridge 2-Handle 8" Widespread Bathroom Faucet shows 16 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.

Which model numbers are covered on this page?

LG49-HV0BG, LG49-HV0C, LG49-HV0D, LG49-HV0GS, LG49-HV0SDB. The letters at the end of a Pfister model number are the finish.
