Deckard 2-Handle 8" Widespread Bathroom Faucet parts
23 part numbers on Pfister’s parts diagram. 21 in our catalog, the rest we order in.
Model numbers: LG49-DA0BLG49-DA0CLG49-DA0KLG49-DAPK

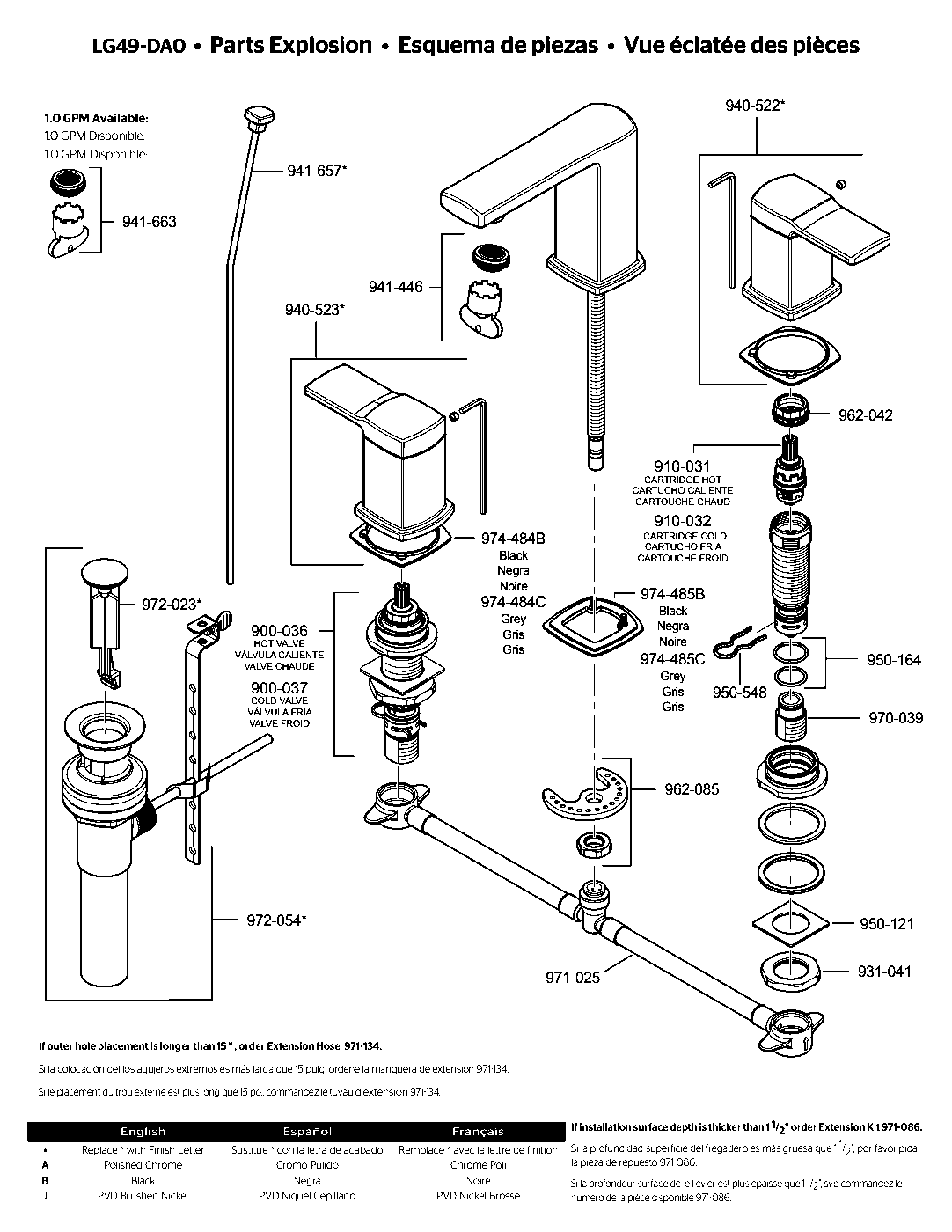

Deckard 2-Handle 8" Widespread Bathroom Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
900-037
Cold Side Valve Body for Widespread 49 Series
Verified fit On Pfister’s Deckard 2-Handle 8" Widespread Bathroom Faucet parts diagram
Deckard 2-Handle 8" Widespread Bathroom Faucet parts list
- 940-5223 finishes
Deckard Hdl W/set Scr-wrnch C 49 /rt6-5 Da /rt6-5 Da
Verified fit On Pfister’s parts diagram for this model
$38.25 - 941-6573 finishes
Verified fit On Pfister’s parts diagram for this model
$11.90 Verified fit On Pfister’s parts diagram for this model
$11.90Verified fit On Pfister’s parts diagram for this model
- 940-5233 finishes
Deckard Hdl W/set Scr-wrnch H 49 /rt6-5 Da /rt6-5 Da
Verified fit On Pfister’s parts diagram for this model
$51.85 Verified fit On Pfister’s parts diagram for this model
$6.80Ceramic Disc Hot Side 1/4 Turn Cartridge
Verified fit On Pfister’s parts diagram for this model
$13.60Ceramic Disc Cold Side 1/4 Turn Cartridge
Verified fit On Pfister’s parts diagram for this model
$13.60- 974-4842 finishes
Deckard Hdl Gskt 49 Da Bk Da Bk
Verified fit On Pfister’s parts diagram for this model
$2.55 - 974-4852 finishes
Deckard Putty Plt W/eva Foam 49 Da Bk
Verified fit On Pfister’s parts diagram for this model
$3.40 - 972-0235 finishes
Verified fit On Pfister’s parts diagram for this model
$9.35 Hot Side Valve Body for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$61.20Verified fit On Pfister’s parts diagram for this model
$6.80Cold Side Valve Body for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$61.20Verified fit On Pfister’s parts diagram for this model
$5.95Inlet Connector for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$19.55Verified fit On Pfister’s parts diagram for this model
$9.35- 972-0547 finishes
Verified fit On Pfister’s parts diagram for this model
$62.05 Verified fit On Pfister’s parts diagram for this model
$6.80Sput Locknut for 26/49/531 Series
Verified fit On Pfister’s parts diagram for this model
$6.80Quick Connect Hose Assembly for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$33.15Verified fit On Pfister’s parts diagram for this model
Widespread 49 Series Extension Kit
Verified fit On Pfister’s parts diagram for this model
$123.25
About the Pfister Deckard 2-Handle 8" Widespread Bathroom Faucet
The Deckard collection embodies soft-modern design by incorporating curves into the familiar sleek, hard-edge motif of modern aesthetics. The clean, horizontal lines in this design create a precise aesthetic as the contrasting subtle curves offer balance. The small footprint of this faucet and the thin profile of the spout and handle make this a clean design that is optimum for any modern space.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Pforever Seal™—advanced ceramic disc valve technology with a never leak guarantee
- Product complies with NSF/ANSI 372 and conforms with lead content requirements for “lead-free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act.
- Faucet mounted on sink deck or countertop
- Trade exclusive faucet
- Includes valve and cartridge
- 3-hole installation
- Features an all metal pop-up drain assembly
- Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
- Adjustable Widespread
| GPM Flow Rate | 1.2 |
|---|---|
| # of Handles | 2 |
| Total Spout Height | 4-5/8 |
| Deck To Aerator Height | 3-13/16 |
| Drain Assembly | American All Metal |
| Max Deck Thickness | 3 |
| Configurations | 3-Hole |
Deckard 2-Handle 8" Widespread Bathroom Faucet parts questions
What cartridge does the Pfister Deckard 2-Handle 8" Widespread Bathroom Faucet (LG49-DA0B) use?
Pfister's parts diagram for the LG49-DA0B lists 962-042 (Cartridge Retainer Nut), 910-031 (Ceramic Disc Hot Side 1/4 Turn Cartridge), 910-032 (Ceramic Disc Cold Side 1/4 Turn Cartridge), 900-036 (Hot Side Valve Body for Widespread 49 Series).
How many replacement parts are on the LG49-DA0B diagram?
Pfister's parts diagram for the Deckard 2-Handle 8" Widespread Bathroom Faucet shows 23 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
LG49-DA0B, LG49-DA0C, LG49-DA0K, LG49-DAPK. The letters at the end of a Pfister model number are the finish.
