Avalon 2-Handle 8" Widespread Bathroom Faucet parts
21 part numbers on Pfister’s parts diagram. 20 in our catalog, the rest we order in.

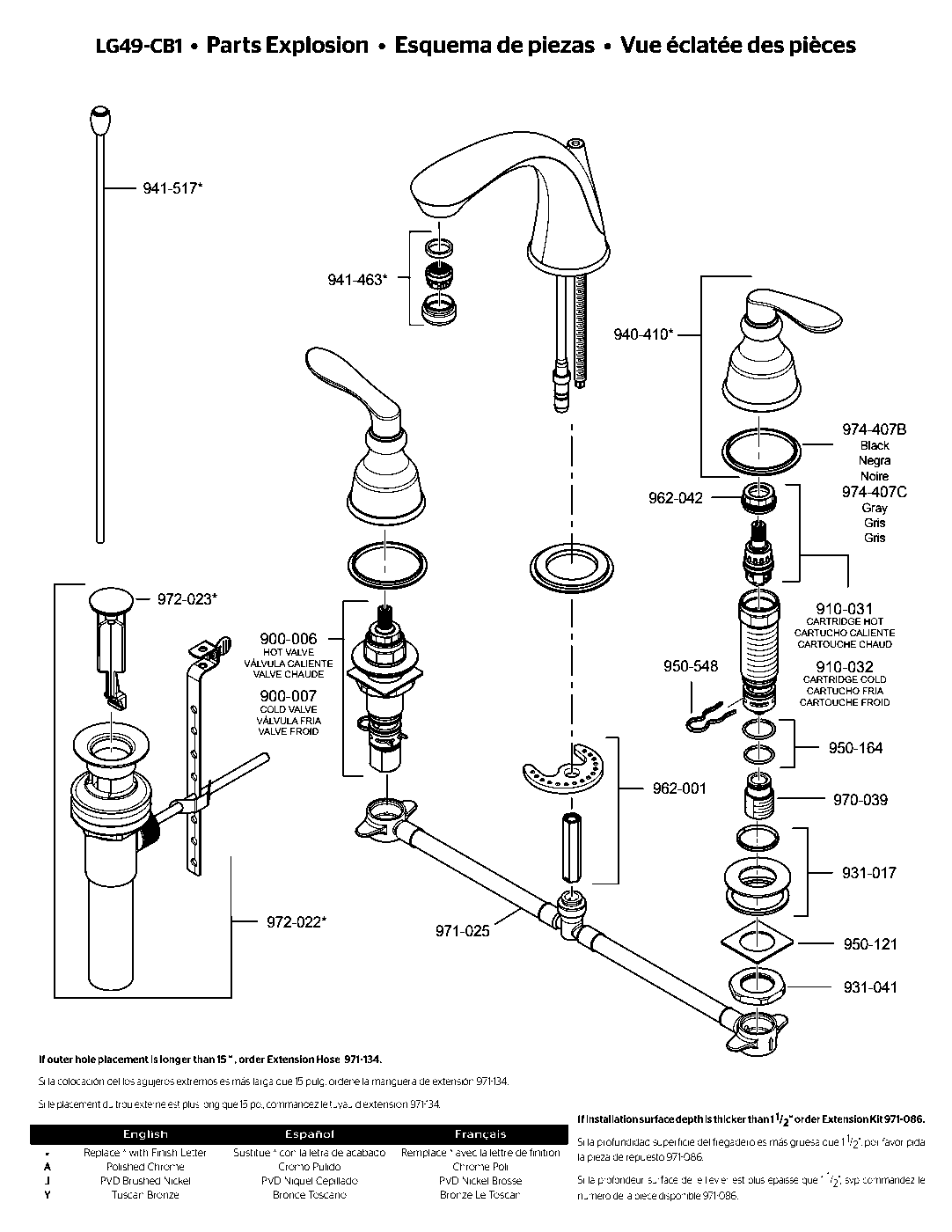

Avalon 2-Handle 8" Widespread Bathroom Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
940-410
Verified fit On Pfister’s Avalon 2-Handle 8" Widespread Bathroom Faucet parts diagram
Avalon 2-Handle 8" Widespread Bathroom Faucet parts list
- 941-5173 finishes
Avalon P/u Rod And Knb 48/49 Av
Verified fit On Pfister’s parts diagram for this model
$10.20 - 941-4634 finishes
Replacement Aerator for LF-048-SLCC
Verified fit On Pfister’s parts diagram for this model
$14.45 - 940-4103 finishes
Verified fit On Pfister’s parts diagram for this model
$68.85 - 974-4072 finishes
Avalon Hdl Gskt 49 Av Bk Av Bk - Black
Verified fit On Pfister’s parts diagram for this model
$2.55 Verified fit On Pfister’s parts diagram for this model
$6.80- 972-0235 finishes
Verified fit On Pfister’s parts diagram for this model
$9.35 Ceramic Disc Hot Side 1/4 Turn Cartridge
Verified fit On Pfister’s parts diagram for this model
$13.60Hot Side Valve Body for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$79.05Verified fit On Pfister’s parts diagram for this model
$5.95Ceramic Disc Cold Side 1/4 Turn Cartridge
Verified fit On Pfister’s parts diagram for this model
$13.60Cold Side Valve Body for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$79.05Verified fit On Pfister’s parts diagram for this model
$6.80Verified fit On Pfister’s parts diagram for this model
$7.65Inlet Connector for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$19.55Verified fit On Pfister’s parts diagram for this model
$6.80- 972-0225 finishes
All metal pop up drain assembly
Verified fit On Pfister’s parts diagram for this model
$65.45 Quick Connect Hose Assembly for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$33.15Verified fit On Pfister’s parts diagram for this model
$6.80Sput Locknut for 26/49/531 Series
Verified fit On Pfister’s parts diagram for this model
$6.80Verified fit On Pfister’s parts diagram for this model
Widespread 49 Series Extension Kit
Verified fit On Pfister’s parts diagram for this model
$123.25
About the Pfister Avalon 2-Handle 8" Widespread Bathroom Faucet
Time-honored qualities such as elegance, tradition, and symmetry are gracefully reflected in the Avalon collection. With smooth and sleek curves reminiscent of a seaside escape, it's no wonder Avalon makes it easy to coordinate the look of your entire home.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Pforever Seal™—advanced ceramic disc valve technology with a never leak guarantee
- Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
- Faucet mounted on sink deck or countertop
- Includes metal supply nuts
- Includes valve and cartridge
- 3-hole installation
- Features an all metal pop-up drain assembly
- Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
- Adjustable Widespread
| GPM Flow Rate | 1.2 |
|---|---|
| # of Handles | 2 |
| Total Spout Height | 5-5/32 |
| Deck To Aerator Height | 3-7/8 |
| Drain Assembly | American All Metal |
| Max Deck Thickness | 1-13/32 |
| Configurations | 3-Hole |
Avalon 2-Handle 8" Widespread Bathroom Faucet parts questions
What cartridge does the Pfister Avalon 2-Handle 8" Widespread Bathroom Faucet (LG49-CB1C) use?
Pfister's parts diagram for the LG49-CB1C lists 962-042 (Cartridge Retainer Nut), 910-031 (Ceramic Disc Hot Side 1/4 Turn Cartridge), 900-006 (Hot Side Valve Body for Widespread 49 Series), 910-032 (Ceramic Disc Cold Side 1/4 Turn Cartridge).
How many replacement parts are on the LG49-CB1C diagram?
Pfister's parts diagram for the Avalon 2-Handle 8" Widespread Bathroom Faucet shows 21 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
LG49-CB1C, LG49-CB1K, LG49-CB1Y. The letters at the end of a Pfister model number are the finish.
