Rhen Single Control Bathroom Faucet parts
11 part numbers on Pfister’s parts diagram. 11 in our catalog, the rest we order in.
Model numbers: LG42-RH2BLG42-RH2BGLG42-RH2CLG42-RH2K

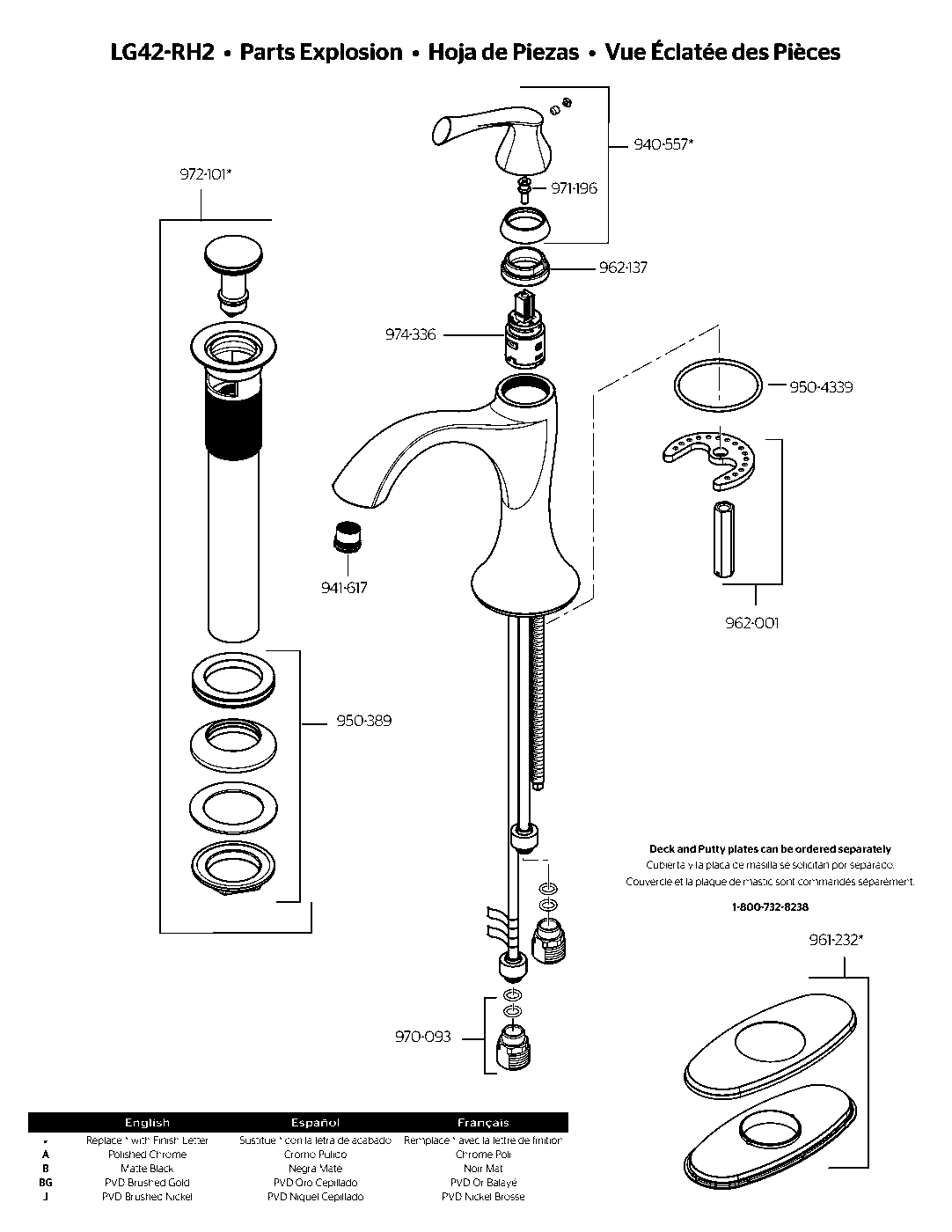

Rhen Single Control Bathroom Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
940-557
Rhen Hdl W/plg-set Dome Cap Scr 42 Rh Scr 42 Rh
Verified fit On Pfister’s Rhen Single Control Bathroom Faucet parts diagram
Rhen Single Control Bathroom Faucet parts list
- 940-5574 finishes
Rhen Hdl W/plg-set Dome Cap Scr 42 Rh Scr 42 Rh
Verified fit On Pfister’s parts diagram for this model
$27.20 - 972-1016 finishes
Verified fit On Pfister’s parts diagram for this model
$96.90 Stm Ext M4x0.7 42 Nct/da ..8gpm
Verified fit On Pfister’s parts diagram for this model
$4.25Verified fit On Pfister’s parts diagram for this model
$6.80Ceramic Disc Cartridge With Temperature Limit Stop
Verified fit On Pfister’s parts diagram for this model
$26.35Verified fit On Pfister’s parts diagram for this model
$3.40Verified fit On Pfister’s parts diagram for this model
$11.90Verified fit On Pfister’s parts diagram for this model
$7.65Mtl Psh-seal Mntg Nut W/seal-gskt W/seal-gskt
Verified fit On Pfister’s parts diagram for this model
$11.05- 961-2324 finishes
Verified fit On Pfister’s parts diagram for this model
$31.45 Verified fit On Pfister’s parts diagram for this model
$5.95
About the Pfister Rhen Single Control Bathroom Faucet
A curvy silhouette gives the Rhen collection breathtaking beauty. Part sculpture, part engineering achievement, Rhen pushes the boundaries of water delivery and everyday tasks while looking elegant. Update your bathroom with this expansive line of exceptional fixtures.
- Faucet mounted on sink deck or countertop
- Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
- Features an all metal Push & Seal™ drain assembly
- Includes single post mounting ring
- Optional deck plate , order 961-232*
- Optional decorative deck plate sold separately
- Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
- Complies with Federal and State safe drinking water legislation.
| GPM Flow Rate | 1.2 |
|---|---|
| # of Handles | 1 |
| Total Spout Height | 7-1/8 |
| Deck To Aerator Height | 5-13/16 |
| Deckplate Included | No |
| Drain Assembly | American All Metal Push & Seal |
| Max Deck Thickness | 3 |
| Configurations | 1-Hole 3-Hole |
Rhen Single Control Bathroom Faucet parts questions
What cartridge does the Pfister Rhen Single Control Bathroom Faucet (LG42-RH2B) use?
Pfister's parts diagram for the LG42-RH2B lists 974-336 (Ceramic Disc Cartridge With Temperature Limit Stop).
How many replacement parts are on the LG42-RH2B diagram?
Pfister's parts diagram for the Rhen Single Control Bathroom Faucet shows 11 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
LG42-RH2B, LG42-RH2BG, LG42-RH2C, LG42-RH2K. The letters at the end of a Pfister model number are the finish.
