Avalon Multifunction Handheld Shower parts
4 part numbers on Pfister’s parts diagram. 3 in our catalog, the rest we order in.

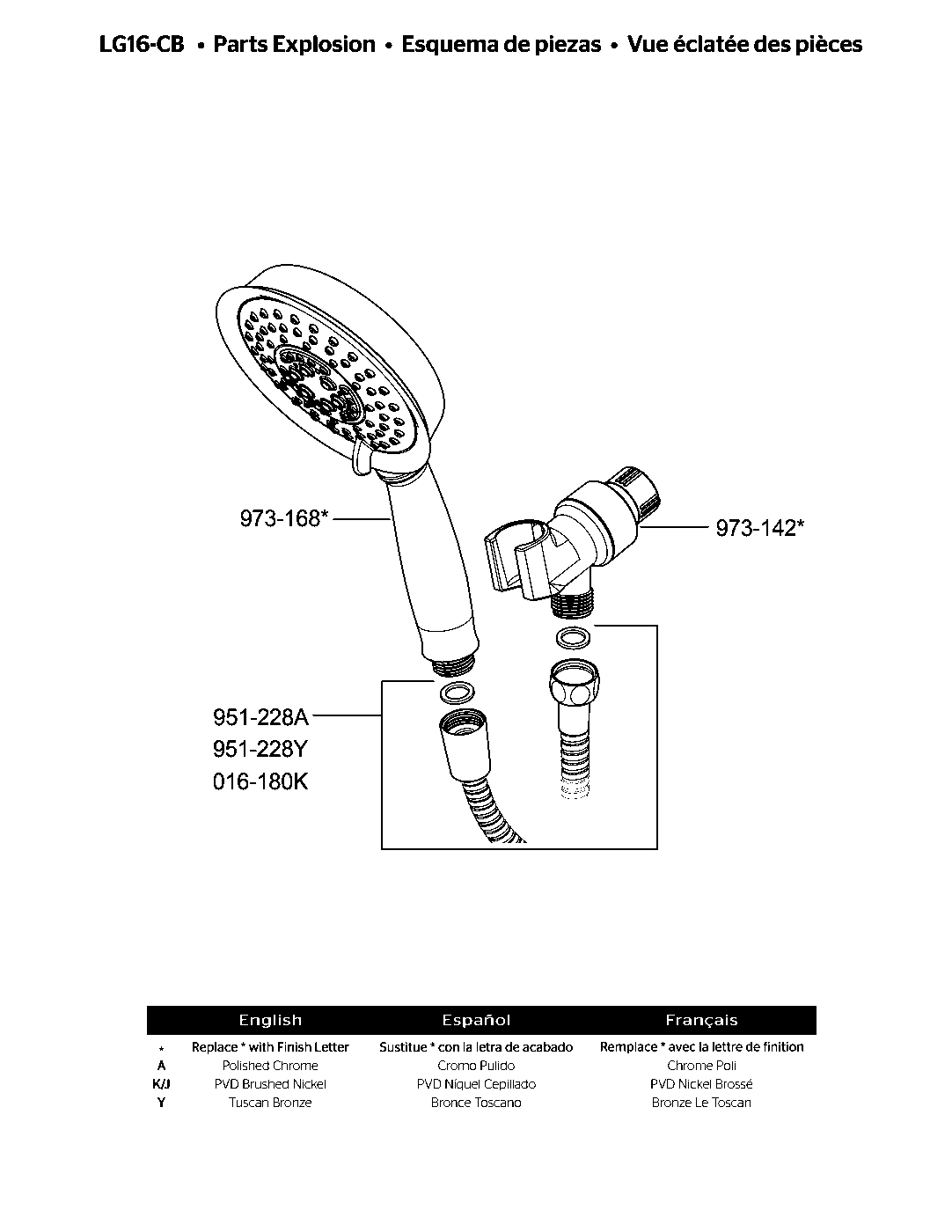

Avalon Multifunction Handheld Shower exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
973-142
Hndshwr Brkt 016-td1 Tb Td1 Tb
Verified fit On Pfister’s Avalon Multifunction Handheld Shower parts diagram
Avalon Multifunction Handheld Shower parts list
- 973-1683 finishes
Verified fit On Pfister’s parts diagram for this model
$58.65 Hndshwr Brkt 016-td1 Tb Td1 Tb
Verified fit On Pfister’s parts diagram for this model
$30.60Verified fit On Pfister’s parts diagram for this model
$29.75Verified fit On Pfister’s parts diagram for this model
About the Pfister Avalon Multifunction Handheld Shower
Time-honored qualities such as elegance, tradition, and symmetry are gracefully reflected in the Avalon collection. With smooth and sleek curves reminiscent of a seaside escape, it's no wonder Avalon makes it easy to coordinate the look of your entire home.
- Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
| GPM Flow Rate | 1.8 |
|---|---|
| Functions Included | Penetrating Massage, Invigorating Spray, Rain Spray |
| Handshower Diameter | 3-27/32 |
| Hose Included | Yes |
| Hose Material | Mylar Hose |
Avalon Multifunction Handheld Shower parts questions
What cartridge does the Pfister Avalon Multifunction Handheld Shower (LG16-CB0C) use?
Pfister's parts diagram for the LG16-CB0C does not list a separate cartridge. The valve may be sold separately; check the valve model on the diagram or ask our counter.
How many replacement parts are on the LG16-CB0C diagram?
Pfister's parts diagram for the Avalon Multifunction Handheld Shower shows 4 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
LG16-CB0C, LG16-CB0K, LG16-CB0Y. The letters at the end of a Pfister model number are the finish.
