Pfirst Series 1-Handle 4" Centerset Bathroom Faucet parts
15 part numbers on Pfister’s parts diagram. 9 in our catalog, the rest we order in.
Model numbers: LG142-5000

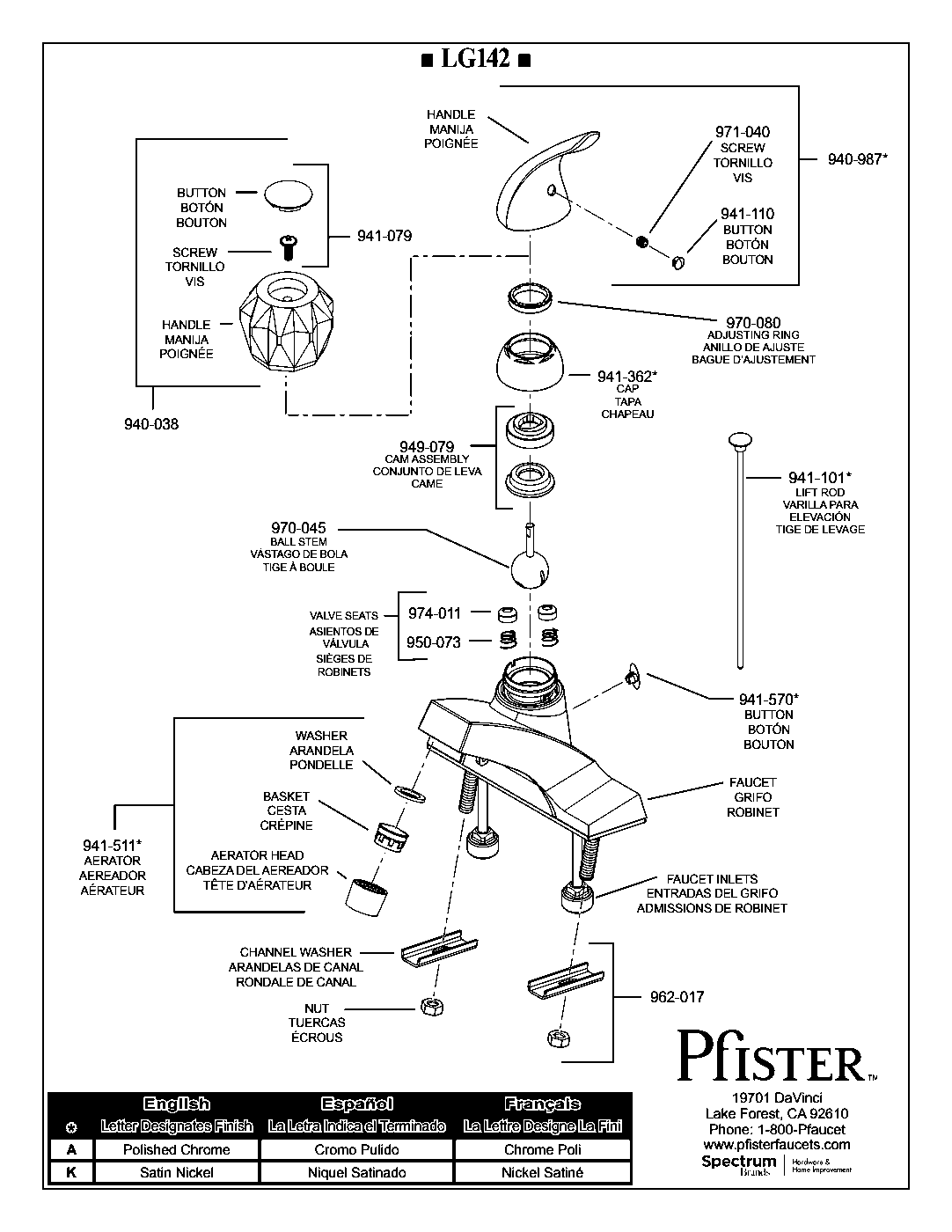

Pfirst Series 1-Handle 4" Centerset Bathroom Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
941-570
Pfirst Series 142 Pi P/u Hole Cover
Verified fit On Pfister’s Pfirst Series 1-Handle 4" Centerset Bathroom Faucet parts diagram
Pfirst Series 1-Handle 4" Centerset Bathroom Faucet parts list
Handle Set Screw For Kitchen Pfirst 134 Series
Verified fit On Pfister’s parts diagram for this model
$5.95- 940-9873 finishes
Pfirst 142 Series Lever Handle with Set Screw and Button
Verified fit On Pfister’s parts diagram for this model
$36.55 Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
- 941-1013 finishes
Pfirst Series Lft Rod Pi 143 142
Verified fit On Pfister’s parts diagram for this model
$7.65 Verified fit On Pfister’s parts diagram for this model
$20.40Verified fit On Pfister’s parts diagram for this model
$5.95Verified fit On Pfister’s parts diagram for this model
$5.95- 941-5702 finishes
Pfirst Series 142 Pi P/u Hole Cover
Verified fit On Pfister’s parts diagram for this model
$5.95 - 941-5113 finishes
Pfirst Series Aer Std Pca W/hsg-wshr 142 Pi
Verified fit On Pfister’s parts diagram for this model
$11.90 Verified fit On Pfister’s parts diagram for this model
$6.80
About the Pfister Pfirst Series 1-Handle 4" Centerset Bathroom Faucet
Pfirst Series™ is a complete line of kitchen, laundry, lavatory, and tub/shower fixtures built for the job. Reliable performance, durable construction, and a clean finish—delivering long-term value where it counts.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
- Faucet mounted on sink deck or countertop
- Includes valve and cartridge
- 3-hole installation
- Drain assembly purchased separately
- Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
- Pforever Seal®
| GPM Flow Rate | 1.2 |
|---|---|
| # of Handles | 1 |
| Total Spout Height | 5-13/16 |
| Deck To Aerator Height | 1-5/8 |
| Deckplate Included | N/A |
| Drain Assembly | Less drain assembly |
| Max Deck Thickness | 1-1/4 |
| Configurations | 3-Hole |
Pfirst Series 1-Handle 4" Centerset Bathroom Faucet parts questions
What cartridge does the Pfister Pfirst Series 1-Handle 4" Centerset Bathroom Faucet (LG142-5000) use?
Pfister's parts diagram for the LG142-5000 lists 970-045 (Ball Stem/Cnctr 142), 974-011 (Shear Valve Seat).
How many replacement parts are on the LG142-5000 diagram?
Pfister's parts diagram for the Pfirst Series 1-Handle 4" Centerset Bathroom Faucet shows 15 part numbers, including handles, trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
LG142-5000. The letters at the end of a Pfister model number are the finish.
