Springville 2-Handle Widespread Lavatory Faucet parts
20 part numbers on Pfister’s parts diagram. 15 in our catalog, the rest we order in.
Model numbers: LF049-SPVBGLF049-SPVCCLF049-SPVGSLF049-SPVSDB

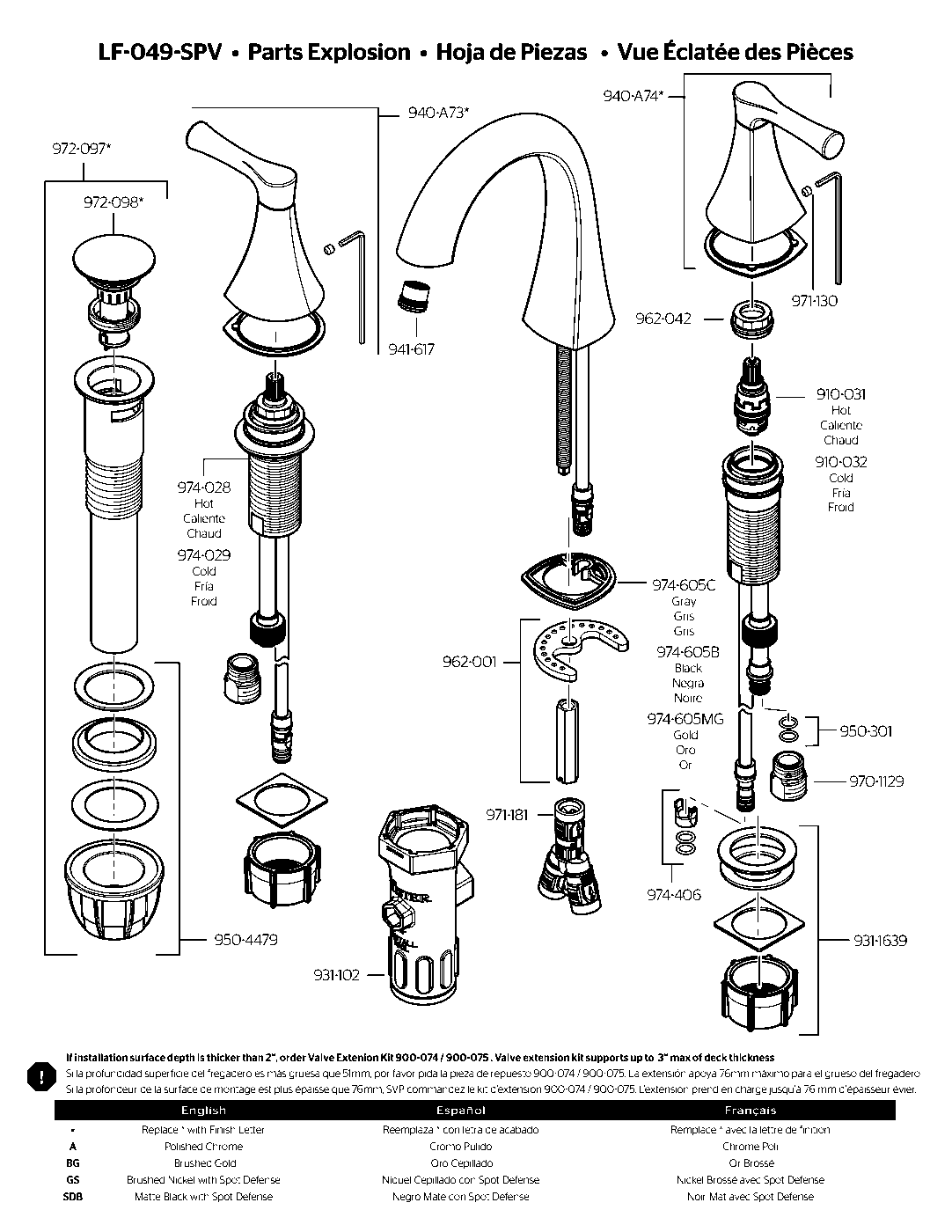

Springville 2-Handle Widespread Lavatory Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
941-617
Verified fit On Pfister’s Springville 2-Handle Widespread Lavatory Faucet parts diagram
Springville 2-Handle Widespread Lavatory Faucet parts list
- 972-0977 finishes
Push & Seal Drain Assembly - No Logo in Polished Chrome
Verified fit On Pfister’s parts diagram for this model
$29.75 - 972-0987 finishes
Push & Seal Drain Stopper without Logo in Polished Chrome
Verified fit On Pfister’s parts diagram for this model
$11.90 Verified fit On Pfister’s parts diagram for this model
$6.80Verified fit On Pfister’s parts diagram for this model
$6.80Verified fit On Pfister’s parts diagram for this model
$11.90Ceramic Disc Hot Side 1/4 Turn Cartridge
Verified fit On Pfister’s parts diagram for this model
$13.60Ceramic Disc Cold Side 1/4 Turn Cartridge
Verified fit On Pfister’s parts diagram for this model
$13.60Verified fit On Pfister’s parts diagram for this model
Marielle Vlv Undrbdy 46 Ma Ldf
Verified fit On Pfister’s parts diagram for this model
$134.30Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$7.65Verified fit On Pfister’s parts diagram for this model
$2.55Ilt Adpt W/ilt Scrn 49nub Trough 49nub Trough
Verified fit On Pfister’s parts diagram for this model
$9.35Y Connector for 49 Series Widespread Faucets
Verified fit On Pfister’s parts diagram for this model
$5.95Verified fit On Pfister’s parts diagram for this model
$3.40Lcknut And Wsher Psh-seal Ver2
Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$4.25Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
About the Pfister Springville 2-Handle Widespread Lavatory Faucet
- Perfect for larger countertops with three holes; includes three pieces — two handles and a spout
- Push & Seal® Drain requires no tools and installs in less than half the time of a standard pop-up drain; guaranteed tight seal each and every use - simply press to seal and again to open
- TiteSeal® mounting plate eliminates the need for putty or silicone and simplifies installation
- Water flows at 1.2 gallons per minute, creating a strong, consistent flow while minimizing water waste
- Quick Install Tool
- TiteSeal® Deckplate
- Pfast Connect
- Push & Seal Drain®
- Pforever Seal®
| GPM Flow Rate | 1.2 |
|---|---|
| # of Handles | 2 |
| Total Spout Height | 6-13/16 |
| Deck To Aerator Height | 4-7/16 |
| Drain Assembly | American Push & Seal |
| Max Deck Thickness | 1-1/4 |
| Configurations | 3-Hole |
Springville 2-Handle Widespread Lavatory Faucet parts questions
What cartridge does the Pfister Springville 2-Handle Widespread Lavatory Faucet (LF049-SPVBG) use?
Pfister's parts diagram for the LF049-SPVBG lists 962-042 (Cartridge Retainer Nut), 910-031 (Ceramic Disc Hot Side 1/4 Turn Cartridge), 910-032 (Ceramic Disc Cold Side 1/4 Turn Cartridge).
How many replacement parts are on the LF049-SPVBG diagram?
Pfister's parts diagram for the Springville 2-Handle Widespread Lavatory Faucet shows 20 part numbers, including handles, trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
LF049-SPVBG, LF049-SPVCC, LF049-SPVGS, LF049-SPVSDB. The letters at the end of a Pfister model number are the finish.
