Sonterra 2-Handle 4" Centerset Bathroom Faucet parts
13 part numbers on Pfister’s parts diagram. 11 in our catalog, the rest we order in.
Model numbers: LF-WL2-45PC

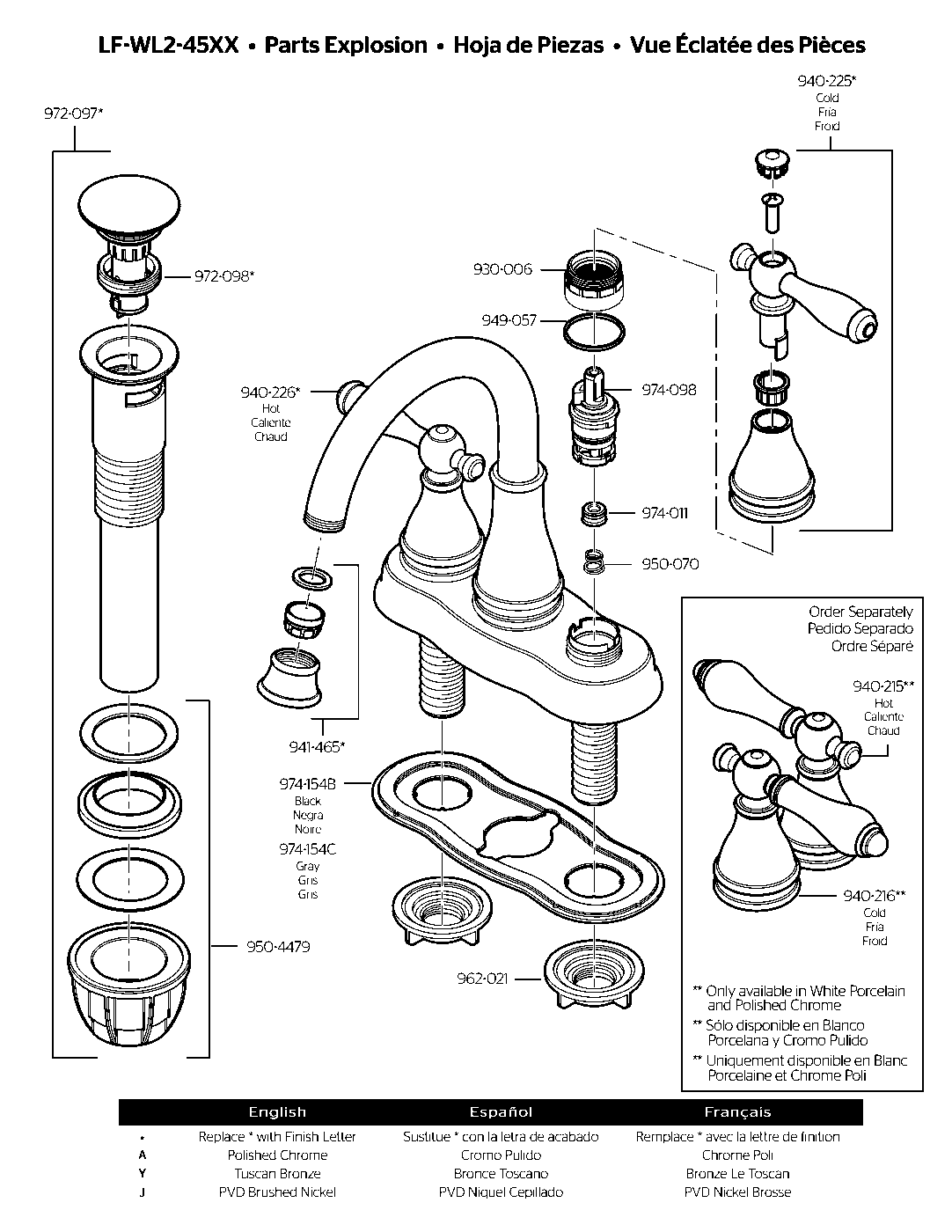

Sonterra 2-Handle 4" Centerset Bathroom Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
941-465
Verified fit On Pfister’s Sonterra 2-Handle 4" Centerset Bathroom Faucet parts diagram
Sonterra 2-Handle 4" Centerset Bathroom Faucet parts list
- 940-2253 finishes
Sonterra Hdl C Son 048 Son 048
Verified fit On Pfister’s parts diagram for this model
$21.25 - 972-0977 finishes
Push & Seal Drain Assembly - No Logo in Polished Chrome
Verified fit On Pfister’s parts diagram for this model
$29.75 Verified fit On Pfister’s parts diagram for this model
$9.35- 972-0987 finishes
Push & Seal Drain Stopper without Logo in Polished Chrome
Verified fit On Pfister’s parts diagram for this model
$11.90 Washer for Shear Valve Cartridge Retainer Nut
Verified fit On Pfister’s parts diagram for this model
$5.95- 940-2263 finishes
Verified fit On Pfister’s parts diagram for this model
$21.25 Shear Valve With Seat and Springs
Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
$5.95Verified fit On Pfister’s parts diagram for this model
- 941-4655 finishes
Verified fit On Pfister’s parts diagram for this model
$14.45 Verified fit On Pfister’s parts diagram for this model
Lcknut And Wsher Psh-seal Ver2
Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
$5.95
About the Pfister Sonterra 2-Handle 4" Centerset Bathroom Faucet
Sonterra's intricate curves, decorative high-arc spout, and classic styling accent the home with timeless sophistication.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Complies with Federal and State safe drinking water legislation.
- Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
- Retail exclusive faucet
- Faucet mounted on sink deck or countertop
- Includes valve and cartridge
- 3-hole installation
- Push & Seal™ drain requires no tools and installs in less than half the time of a standard pop-up drain, Guaranteed tight seal each and every use - simply press to seal and again to open
- Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
- Push & Seal Drain®
| GPM Flow Rate | 1.2 |
|---|---|
| # of Handles | 2 |
| Total Spout Height | 7-29/32 |
| Deck To Aerator Height | 4-13/16 |
| Drain Assembly | American Push & Seal |
| Max Deck Thickness | 1-1/4 |
| Configurations | 3-Hole |
Sonterra 2-Handle 4" Centerset Bathroom Faucet parts questions
What cartridge does the Pfister Sonterra 2-Handle 4" Centerset Bathroom Faucet (LF-WL2-45PC) use?
Pfister's parts diagram for the LF-WL2-45PC lists 949-057 (Washer for Shear Valve Cartridge Retainer Nut), 974-098 (Shear Valve With Seat and Springs), 974-011 (Shear Valve Seat).
How many replacement parts are on the LF-WL2-45PC diagram?
Pfister's parts diagram for the Sonterra 2-Handle 4" Centerset Bathroom Faucet shows 13 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
LF-WL2-45PC. The letters at the end of a Pfister model number are the finish.
