Avalon 2-Handle 8" Widespread Bathroom Faucet parts
22 part numbers on Pfister’s parts diagram. 21 in our catalog, the rest we order in.
Model numbers: LF-049-CB0KLF-049-CBCCLF-M49-CBYY

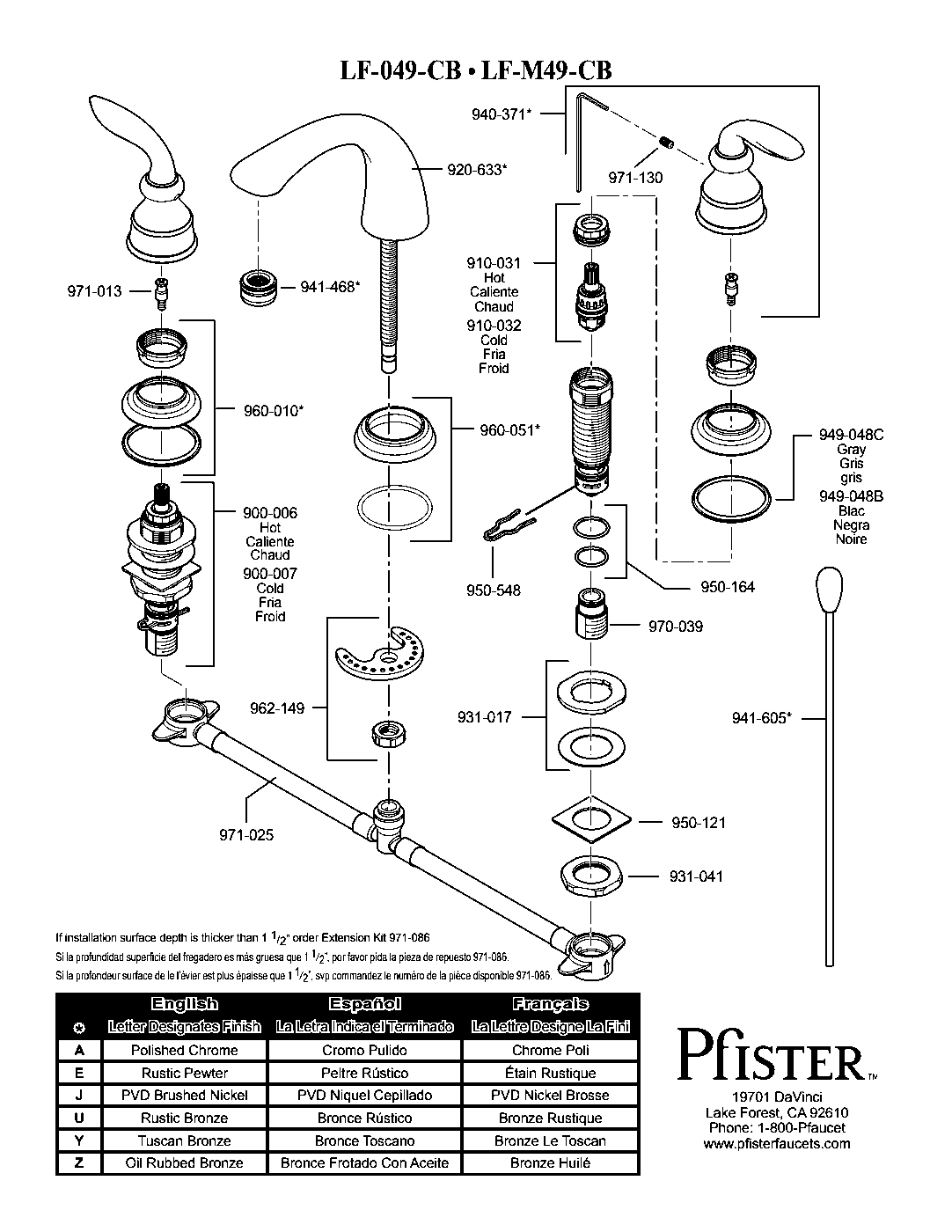

Avalon 2-Handle 8" Widespread Bathroom Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
949-048
Serrano Wshr Hdl Flg 49-ser Bk - Black
Verified fit On Pfister’s Avalon 2-Handle 8" Widespread Bathroom Faucet parts diagram
Avalon 2-Handle 8" Widespread Bathroom Faucet parts list
- 940-3713 finishes
Verified fit On Pfister’s parts diagram for this model
$90.95 Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$6.80Ceramic Disc Hot Side 1/4 Turn Cartridge
Verified fit On Pfister’s parts diagram for this model
$13.60Verified fit On Pfister’s parts diagram for this model
$5.95- 941-4683 finishes
Verified fit On Pfister’s parts diagram for this model
$14.45 Ceramic Disc Cold Side 1/4 Turn Cartridge
Verified fit On Pfister’s parts diagram for this model
$13.60- 960-0104 finishes
Georgetown / Portola / Savannah / Treviso 49 Series Flange Kit
Verified fit On Pfister’s parts diagram for this model
$31.45 - 960-0513 finishes
Verified fit On Pfister’s parts diagram for this model
$49.30 - 949-0482 finishes
Serrano Wshr Hdl Flg 49-ser Bk - Black
Verified fit On Pfister’s parts diagram for this model
$5.95 Hot Side Valve Body for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$79.05Cold Side Valve Body for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$79.05Verified fit On Pfister’s parts diagram for this model
$5.95Verified fit On Pfister’s parts diagram for this model
$6.80Inlet Connector for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$19.55Replacement Mounting Bracket for Ashfield Series Bathroom Faucet
Verified fit On Pfister’s parts diagram for this model
$7.65Verified fit On Pfister’s parts diagram for this model
$6.80- 941-6053 finishes
Replacement Lift Rod for F-042-LT0 Bathroom Faucet
Verified fit On Pfister’s parts diagram for this model
$19.55 Verified fit On Pfister’s parts diagram for this model
$6.80Quick Connect Hose Assembly for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$33.15Sput Locknut for 26/49/531 Series
Verified fit On Pfister’s parts diagram for this model
$6.80Widespread 49 Series Extension Kit
Verified fit On Pfister’s parts diagram for this model
$123.25
About the Pfister Avalon 2-Handle 8" Widespread Bathroom Faucet
Time-honored qualities such as elegance, tradition, and symmetry are gracefully reflected in the Avalon collection. With smooth and sleek curves reminiscent of a seaside escape, it's no wonder Avalon makes it easy to coordinate the look of your entire home.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
- Complies with Federal and State safe drinking water legislation.
- Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
- Faucet mounted on sink deck or countertop
- TiteSeal™ Mounting Technology eliminates the need for putty or silicone and simplifies installation
- Pfast Connect™ reduces installation time and guarantees a secure connection to water supply lines
- Retail exclusive faucet
- Includes valve and cartridge
- 3-hole installation
| GPM Flow Rate | 1.2 |
|---|---|
| # of Handles | 2 |
| Total Spout Height | 4-27/32 |
| Deck To Aerator Height | 3-11/16 |
| Drain Assembly | American All Plastic |
| Max Deck Thickness | 1-1/2 |
| Configurations | 3-Hole |
Avalon 2-Handle 8" Widespread Bathroom Faucet parts questions
What cartridge does the Pfister Avalon 2-Handle 8" Widespread Bathroom Faucet (LF-049-CB0K) use?
Pfister's parts diagram for the LF-049-CB0K lists 910-031 (Ceramic Disc Hot Side 1/4 Turn Cartridge), 971-013 (Stem Extension), 910-032 (Ceramic Disc Cold Side 1/4 Turn Cartridge), 900-006 (Hot Side Valve Body for Widespread 49 Series).
How many replacement parts are on the LF-049-CB0K diagram?
Pfister's parts diagram for the Avalon 2-Handle 8" Widespread Bathroom Faucet shows 22 part numbers, including handles, trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
LF-049-CB0K, LF-049-CBCC, LF-M49-CBYY. The letters at the end of a Pfister model number are the finish.
