Venturi 2-Handle 8" Widespread Bathroom Faucet parts
28 part numbers on Pfister’s parts diagram. 25 in our catalog, the rest we order in.
Model numbers: LF-049-VNBBLF-049-VNBGLF-049-VNCCLF-049-VNGSLF-049-VNKKLF-049-VNYY

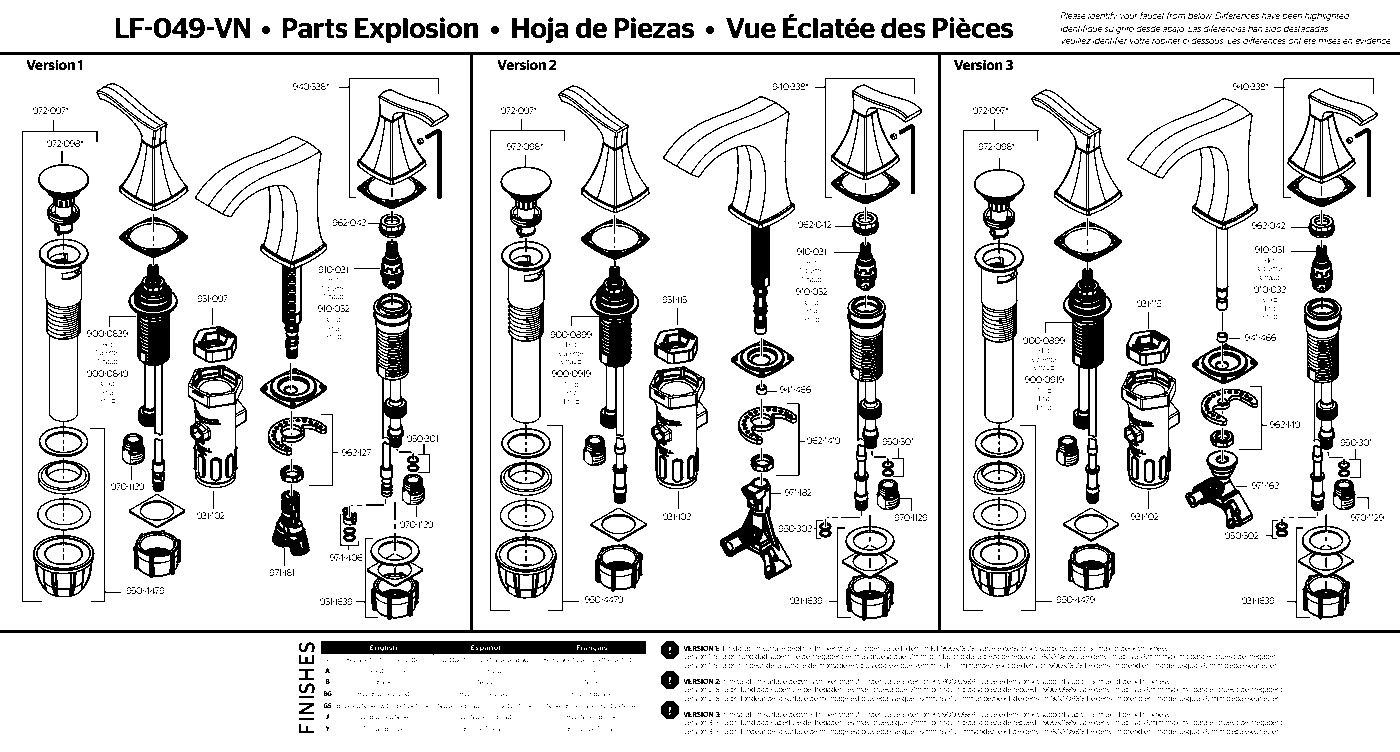

Venturi 2-Handle 8" Widespread Bathroom Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
940-338
Venturi Lvr Hdl S/a 49 Vn .4940338a8a E
Verified fit On Pfister’s Venturi 2-Handle 8" Widespread Bathroom Faucet parts diagram
Venturi 2-Handle 8" Widespread Bathroom Faucet parts list
Ceramic Disc Hot Side 1/4 Turn Cartridge
Verified fit On Pfister’s parts diagram for this model
$13.60Ceramic Disc Cold Side 1/4 Turn Cartridge
Verified fit On Pfister’s parts diagram for this model
$13.60Vlv 49nub W/brs W/ospg- Ld Ilt Con H Trgh Ld Ilt Con H Trgh
Verified fit On Pfister’s parts diagram for this model
$50.15Vlv 49nub W/br Ilt-flg Conn H Trgh Conn H Trgh
Verified fit On Pfister’s parts diagram for this model
$82.45Vlv 49nub W/brs W/ospg- Ld Ilt Con C Trgh Ld Ilt Con C Trgh
Verified fit On Pfister’s parts diagram for this model
$50.15Vlv 49nub W/br Ilt-flg Conn C Trgh Conn C Trgh
Verified fit On Pfister’s parts diagram for this model
$82.45Vlv W/y Conn-clip-ext 49 C Trough C Trough
Verified fit On Pfister’s parts diagram for this model
$102.85Vlv W/brs Ilt Conn Ext 49 Trough 49 Trough
Verified fit On Pfister’s parts diagram for this model
$125.80- 940-3386 finishes
Venturi Lvr Hdl S/a 49 Vn .4940338a8a E
Verified fit On Pfister’s parts diagram for this model
$28.05 - 972-0977 finishes
Push & Seal Drain Assembly - No Logo in Polished Chrome
Verified fit On Pfister’s parts diagram for this model
$29.75 - 972-0987 finishes
Push & Seal Drain Stopper without Logo in Polished Chrome
Verified fit On Pfister’s parts diagram for this model
$11.90 Verified fit On Pfister’s parts diagram for this model
$6.80Verified fit On Pfister’s parts diagram for this model
Adpt Instl Tool 49 Vn Tool 49 Vn
Verified fit On Pfister’s parts diagram for this model
$2.55Verified fit On Pfister’s parts diagram for this model
$9.35Replacement Mounting Bracket for Ashfield Series Bathroom Faucet
Verified fit On Pfister’s parts diagram for this model
$7.65Verified fit On Pfister’s parts diagram for this model
$2.55Mntg Hdw Vlv Bdy Lav Kit Lav Kit
Verified fit On Pfister’s parts diagram for this model
$5.95Verified fit On Pfister’s parts diagram for this model
Ilt Adpt W/ilt Scrn 49nub Trough 49nub Trough
Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
$14.45Verified fit On Pfister’s parts diagram for this model
$10.20Verified fit On Pfister’s parts diagram for this model
$4.25Verified fit On Pfister’s parts diagram for this model
$2.55Verified fit On Pfister’s parts diagram for this model
$3.40Y Connector for 49 Series Widespread Faucets
Verified fit On Pfister’s parts diagram for this model
$5.95Lcknut And Wsher Psh-seal Ver2
Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
About the Pfister Venturi 2-Handle 8" Widespread Bathroom Faucet
The Venturi is a statement piece. Bold yet elegant, Venturi delivers water in a unique ribbon. Its versatile design easily coordinates with a variety of styles, making it an outstanding choice for any remodel project.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
- Complies with Federal and State safe drinking water legislation.
- Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
- TiteSeal™ Mounting Technology eliminates the need for putty or silicone and simplifies installation
- Faucet mounted on sink deck or countertop
- Includes valve and cartridge
- 3-hole installation
- Push & Seal™ drain requires no tools and installs in less than half the time of a standard pop-up drain, Guaranteed tight seal each and every use - simply press to seal and again to open
- Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
| GPM Flow Rate | 1.2 |
|---|---|
| # of Handles | 2 |
| Total Spout Height | 4-31/32 |
| Deck To Aerator Height | 4-5/32 |
| Drain Assembly | American Push & Seal |
| Max Deck Thickness | 2 |
| Configurations | 3-Hole |
Venturi 2-Handle 8" Widespread Bathroom Faucet parts questions
What cartridge does the Pfister Venturi 2-Handle 8" Widespread Bathroom Faucet (LF-049-VNBB) use?
Pfister's parts diagram for the LF-049-VNBB lists 910-031 (Ceramic Disc Hot Side 1/4 Turn Cartridge), 910-032 (Ceramic Disc Cold Side 1/4 Turn Cartridge), 962-042 (Cartridge Retainer Nut).
How many replacement parts are on the LF-049-VNBB diagram?
Pfister's parts diagram for the Venturi 2-Handle 8" Widespread Bathroom Faucet shows 28 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
LF-049-VNBB, LF-049-VNBG, LF-049-VNCC, LF-049-VNGS, LF-049-VNKK, LF-049-VNYY. The letters at the end of a Pfister model number are the finish.
