Vermillion 2-Handle 4" Centerset Bathroom Faucet parts
12 part numbers on Pfister’s parts diagram. 9 in our catalog, the rest we order in.
Model numbers: LF-048-VMGSLF-048-VMSDB

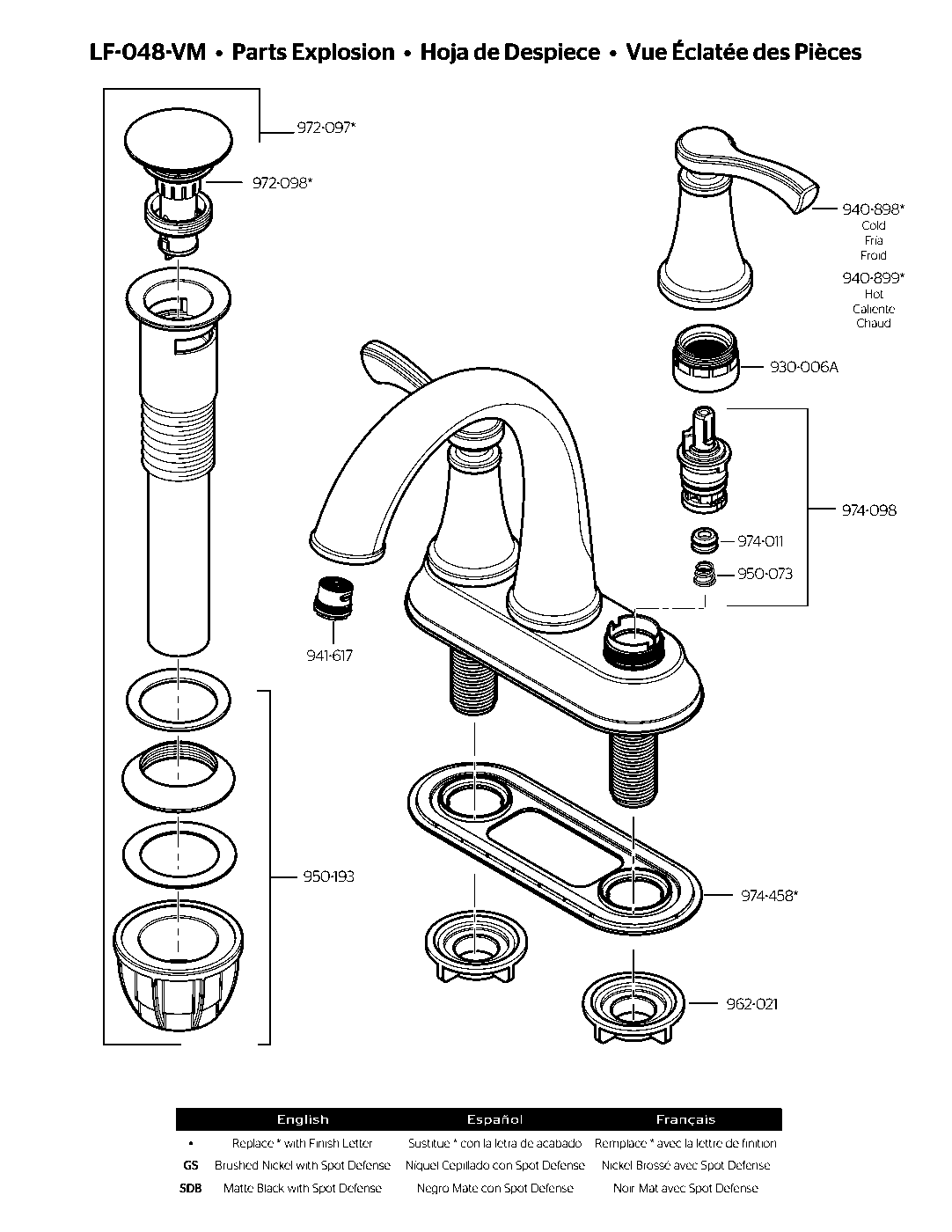

Vermillion 2-Handle 4" Centerset Bathroom Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Vermillion 2-Handle 4" Centerset Bathroom Faucet parts list
- 972-0977 finishes
Push & Seal Drain Assembly - No Logo in Polished Chrome
Verified fit On Pfister’s parts diagram for this model
$29.75 - 972-0987 finishes
Push & Seal Drain Stopper without Logo in Polished Chrome
Verified fit On Pfister’s parts diagram for this model
$11.90 Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$9.35Shear Valve With Seat and Springs
Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
$5.95Verified fit On Pfister’s parts diagram for this model
$5.95Verified fit On Pfister’s parts diagram for this model
$11.90Verified fit On Pfister’s parts diagram for this model
- 974-4582 finishes
Ladera Putty Plt W/gskt 48 Lr Bk
Verified fit On Pfister’s parts diagram for this model
$5.10 Verified fit On Pfister’s parts diagram for this model
$5.95
About the Pfister Vermillion 2-Handle 4" Centerset Bathroom Faucet
Create a tranquil and on-trend space with Vermillion™. This contemporary take on a traditional design is as refreshing as it is sophisticated. Flared bases, elongated lines, and graceful curves form refined yet relaxed silhouettes. Find a sense of serenity with every use.
- TiteSeal™ Mounting Technology eliminates the need for putty or silicone and simplifies installation
- Push & Seal™ Drain requires no tools and installs in less than half the time of a standard pop-up drain; guaranteed tight seal each and every use - simply press to seal and again to open
- Spot Defense® finish protects your faucet from water spots and fingerprints
- 3-hole installation
- Faucet mounted on sink deck or countertop
- Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
- Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20%
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Push & Seal Drain®
- Pforever Seal®
| GPM Flow Rate | 1.2 |
|---|---|
| # of Handles | 2 |
| Total Spout Height | 7-1/8 |
| Deck To Aerator Height | 4-13/16 |
| Drain Assembly | American All Metal Push & Seal |
| Max Deck Thickness | 1-1/4 |
| Configurations | 3-Hole |
Vermillion 2-Handle 4" Centerset Bathroom Faucet parts questions
What cartridge does the Pfister Vermillion 2-Handle 4" Centerset Bathroom Faucet (LF-048-VMGS) use?
Pfister's parts diagram for the LF-048-VMGS lists 974-098 (Shear Valve With Seat and Springs), 974-011 (Shear Valve Seat).
How many replacement parts are on the LF-048-VMGS diagram?
Pfister's parts diagram for the Vermillion 2-Handle 4" Centerset Bathroom Faucet shows 12 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
LF-048-VMGS, LF-048-VMSDB. The letters at the end of a Pfister model number are the finish.
