Treviso 2-Handle 4" Centerset Bathroom Faucet parts
9 part numbers on Pfister’s parts diagram. 8 in our catalog, the rest we order in.
Model numbers: LF-048-DC00LF-048-DK00LF-048-DY00

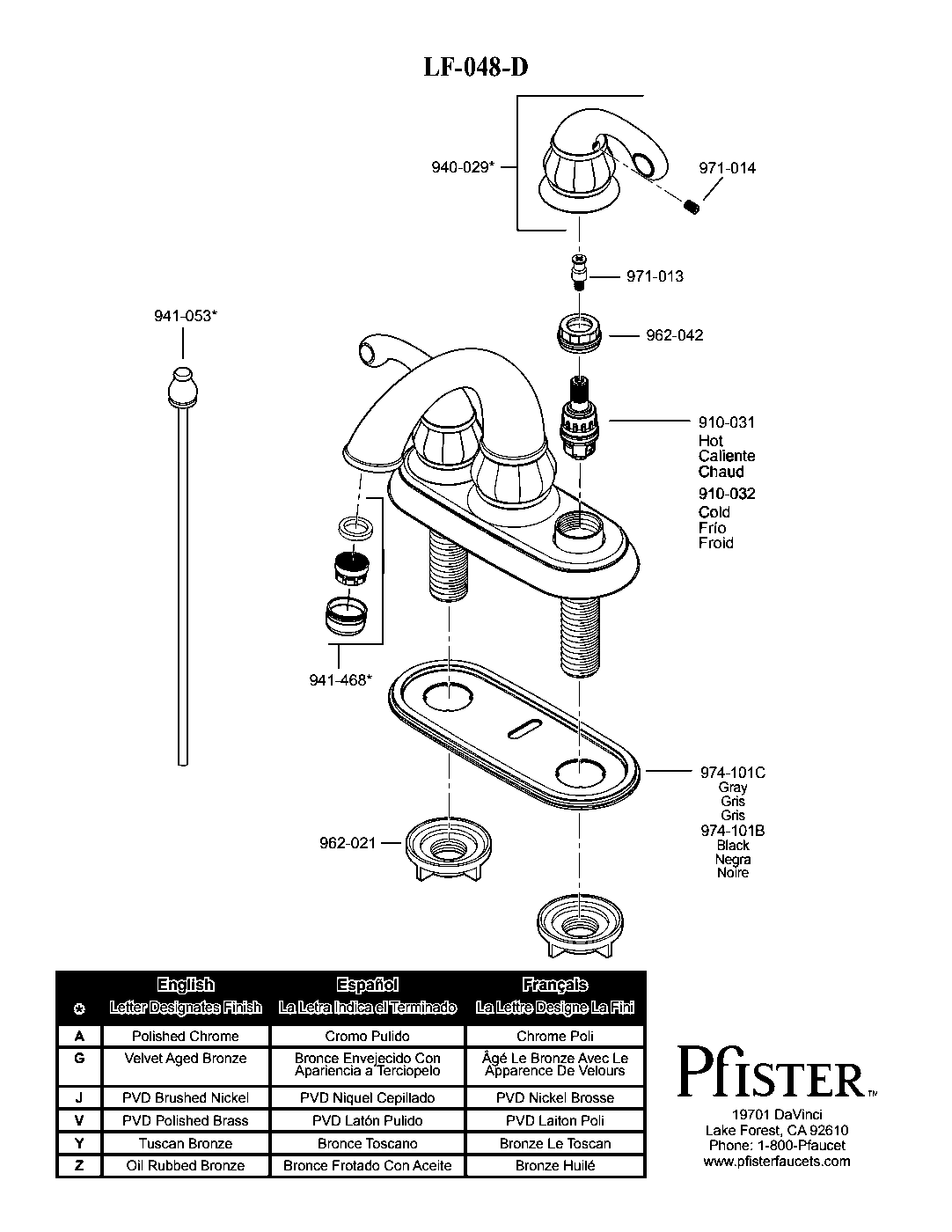

Treviso 2-Handle 4" Centerset Bathroom Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Treviso 2-Handle 4" Centerset Bathroom Faucet parts list
- 940-0294 finishes
Chrome 4" Handle with Set Screw
Verified fit On Pfister’s parts diagram for this model
$57.80 Verified fit On Pfister’s parts diagram for this model
$5.95Verified fit On Pfister’s parts diagram for this model
$5.95- 941-0534 finishes
Treviso 48 / 49 Series Drain Assembly Pull Rod Knob
Verified fit On Pfister’s parts diagram for this model
$11.90 Verified fit On Pfister’s parts diagram for this model
$6.80Ceramic Disc Cold Side 1/4 Turn Cartridge
Verified fit On Pfister’s parts diagram for this model
$13.60- 941-4683 finishes
Verified fit On Pfister’s parts diagram for this model
$14.45 Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$5.95
About the Pfister Treviso 2-Handle 4" Centerset Bathroom Faucet
A fresh and unique design with Italian influences, the Treviso collection's ornate accessories coordinate the bath with a classic European look. Taking cues from traditional designs, Treviso boasts intricate, scalloped details, elongated lines, and soft, flowing curves. Treviso is sure to elevate the bathroom with timeless elegance.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
- Complies with Federal and State safe drinking water legislation.
- Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
- Faucet mounted on sink deck or countertop
- TiteSeal™ Mounting Technology eliminates the need for putty or silicone and simplifies installation
- Pfast Connect™ reduces installation time and guarantees a secure connection to water supply lines
- Retail exclusive faucet
- Includes valve and cartridge
- 3-hole installation
| GPM Flow Rate | 1.2 |
|---|---|
| # of Handles | 2 |
| Total Spout Height | 5-9/16 |
| Deck To Aerator Height | 3-3/4 |
| Drain Assembly | American 50/50 |
| Max Deck Thickness | 1-1/8 |
| Configurations | 3-Hole |
Treviso 2-Handle 4" Centerset Bathroom Faucet parts questions
What cartridge does the Pfister Treviso 2-Handle 4" Centerset Bathroom Faucet (LF-048-DC00) use?
Pfister's parts diagram for the LF-048-DC00 lists 971-013 (Stem Extension), 962-042 (Cartridge Retainer Nut), 910-032 (Ceramic Disc Cold Side 1/4 Turn Cartridge).
How many replacement parts are on the LF-048-DC00 diagram?
Pfister's parts diagram for the Treviso 2-Handle 4" Centerset Bathroom Faucet shows 9 part numbers, including handles, trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
LF-048-DC00, LF-048-DK00, LF-048-DY00. The letters at the end of a Pfister model number are the finish.
