Pfister Pfister Venturi Bathroom Sink Faucet, Single Control, 1-Handle, Single Hole, Brushed Gold Finish, LF042VNBG
Pfister · Bathroom Faucets / Single Handle

Venturi Single Control Bathroom Faucet parts

16 part numbers on Pfister’s parts diagram. 16 in our catalog, the rest we order in.

Model numbers: LF-042-VNBBLF-042-VNBGLF-042-VNCCLF-042-VNGSLF-042-VNKK

Open the diagramShop this faucetPfister’s PDF
Dripping or hard to turn? The usual fix on this model is the .

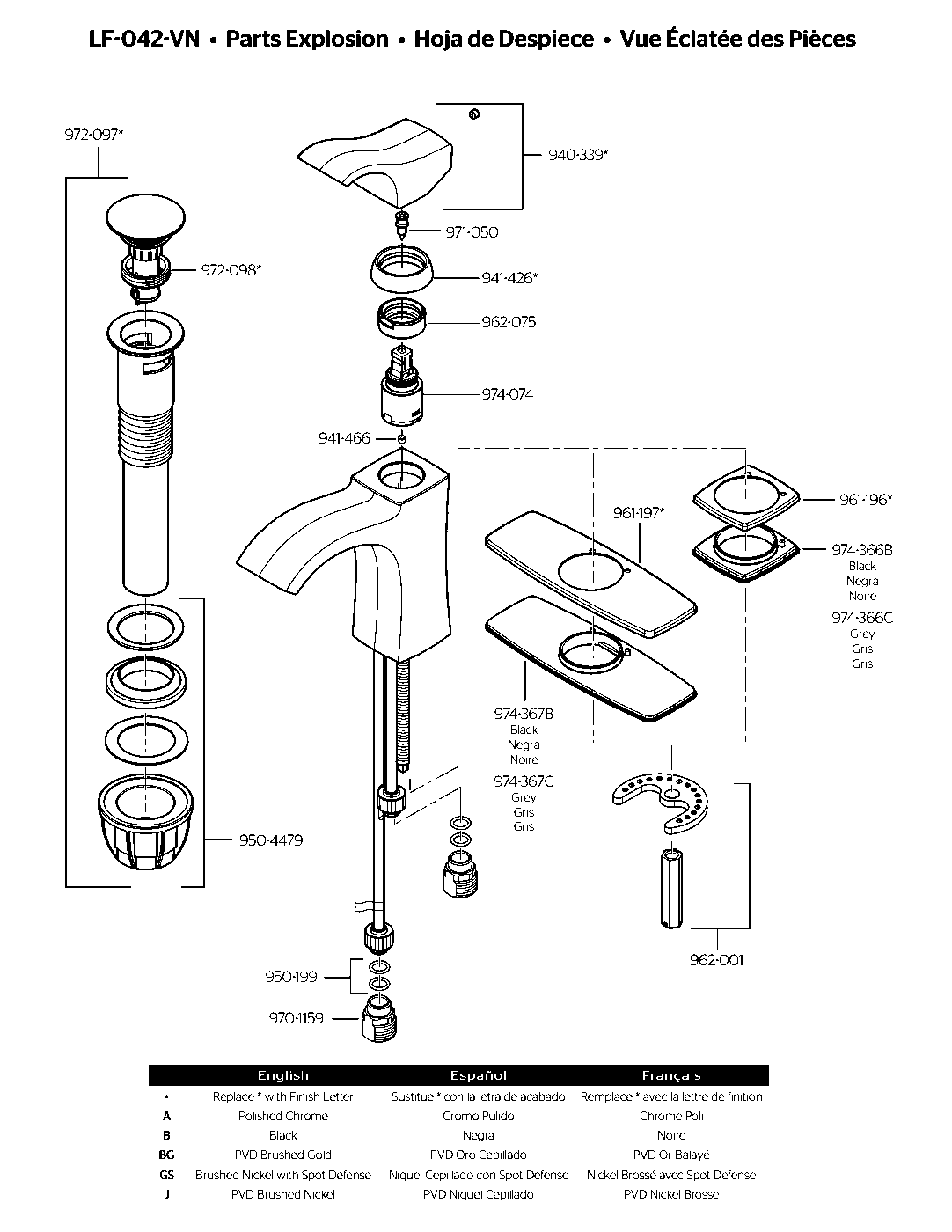

Venturi Single Control Bathroom Faucet exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Venturi Single Control Bathroom Faucet exploded parts diagram

961-197

Venturi Dkplt 3h 42 Vn .4261197a7a A

Verified fit On Pfister’s Venturi Single Control Bathroom Faucet parts diagram

$15.30

Venturi Single Control Bathroom Faucet parts list

About the Pfister Venturi Single Control Bathroom Faucet

The Venturi is a statement piece. Bold yet elegant, Venturi delivers water in a unique ribbon. Its versatile design easily coordinates with a variety of styles, making it an outstanding choice for any remodel project.

  • Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
  • Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
  • Complies with Federal and State safe drinking water legislation.
  • Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
  • TiteSeal™ Mounting Technology eliminates the need for putty or silicone and simplifies installation
  • Includes single post mounting ring
  • Includes valve and cartridge
  • Includes decorative deck plate
  • Push & Seal™ drain requires no tools and installs in less than half the time of a standard pop-up drain, Guaranteed tight seal each and every use - simply press to seal and again to open
  • Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
Specifications
GPM Flow Rate1.2
# of Handles1
Total Spout Height5-1/32
Deck To Aerator Height4-5/32
Deckplate IncludedYes
Drain AssemblyAmerican Push & Seal
Max Deck Thickness3
Configurations1-Hole 3-Hole

Venturi Single Control Bathroom Faucet parts questions

What cartridge does the Pfister Venturi Single Control Bathroom Faucet (LF-042-VNBB) use?

Pfister's parts diagram for the LF-042-VNBB lists 971-050 (Cartridge Stem Extension 7/16), 962-075 (Cartridge Retainer Nut), 974-074 (Ceramic Disc Cartridge).

How many replacement parts are on the LF-042-VNBB diagram?

Pfister's parts diagram for the Venturi Single Control Bathroom Faucet shows 16 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.

Which model numbers are covered on this page?

LF-042-VNBB, LF-042-VNBG, LF-042-VNCC, LF-042-VNGS, LF-042-VNKK. The letters at the end of a Pfister model number are the finish.
