Elden Single Control Bathroom Faucet parts
17 part numbers on Pfister’s parts diagram. 11 in our catalog, the rest we order in.
Model numbers: LF-042-EDCCLF-042-EDKKLF-042-EDYY

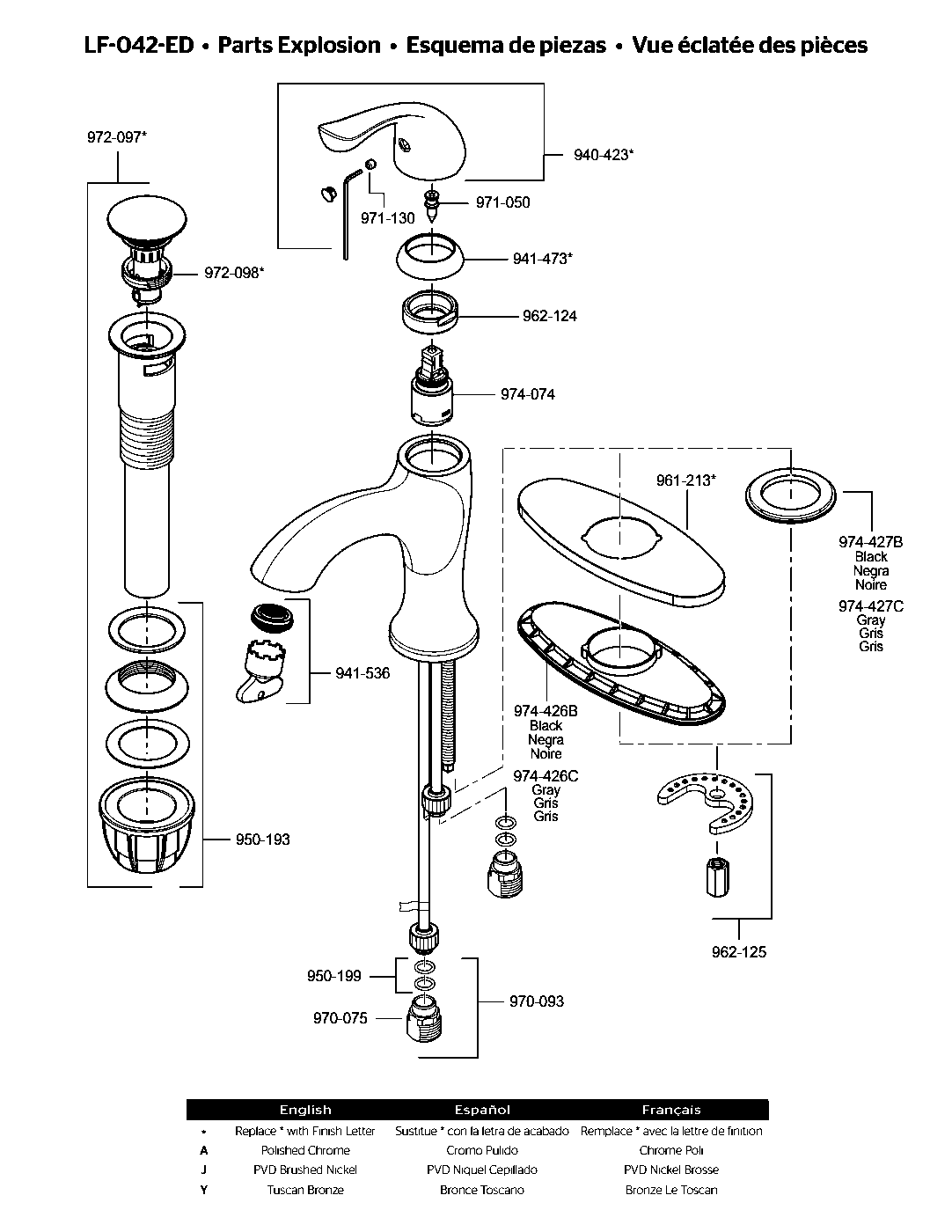

Elden Single Control Bathroom Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
940-423
Verified fit On Pfister’s Elden Single Control Bathroom Faucet parts diagram
Elden Single Control Bathroom Faucet parts list
- 972-0977 finishes
Push & Seal Drain Assembly - No Logo in Polished Chrome
Verified fit On Pfister’s parts diagram for this model
$29.75 - 940-4233 finishes
Verified fit On Pfister’s parts diagram for this model
$11.90 Verified fit On Pfister’s parts diagram for this model
$6.80Verified fit On Pfister’s parts diagram for this model
$6.80Verified fit On Pfister’s parts diagram for this model
- 972-0987 finishes
Push & Seal Drain Stopper without Logo in Polished Chrome
Verified fit On Pfister’s parts diagram for this model
$11.90 Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$20.40- 961-2133 finishes
Elden Dkplt 3h 42 En .4261213a3a A
Verified fit On Pfister’s parts diagram for this model
$13.60 - 974-4272 finishes
Elden Sgl Post Rng W/eva Foam 42 En Bk 42 En Bk - Black
Verified fit On Pfister’s parts diagram for this model
$3.40 Verified fit On Pfister’s parts diagram for this model
- 974-4262 finishes
Elden Putty Plt W/eva Foam 42 En Bk
Verified fit On Pfister’s parts diagram for this model
$4.25 Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$5.95Verified fit On Pfister’s parts diagram for this model
$5.95Verified fit On Pfister’s parts diagram for this model
About the Pfister Elden Single Control Bathroom Faucet
For the faucet that fits in anywhere, Elden is the answer. Slightly flared, curving lines complement contemporary bathroom elements while simplicity of design updates more traditional bathroom decor. Elden is the “go-to” faucet that ties it all together in today’s bathroom.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
- Complies with Federal and State safe drinking water legislation.
- Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
- Faucet mounted on sink deck or countertop
- Pfast Connect™ reduces installation time and guarantees a secure connection to water supply lines
- TiteSeal™ Mounting Technology eliminates the need for putty or silicone and simplifies installation
- Includes single post mounting ring
- Includes valve and cartridge
- Includes decorative deck plate
| GPM Flow Rate | 1.2 |
|---|---|
| # of Handles | 1 |
| Deckplate Included | Yes |
| Drain Assembly | American Push & Seal |
| Max Deck Thickness | 3 |
| Configurations | 1-Hole 3-Hole |
Elden Single Control Bathroom Faucet parts questions
What cartridge does the Pfister Elden Single Control Bathroom Faucet (LF-042-EDCC) use?
Pfister's parts diagram for the LF-042-EDCC lists 971-050 (Cartridge Stem Extension 7/16), 974-074 (Ceramic Disc Cartridge).
How many replacement parts are on the LF-042-EDCC diagram?
Pfister's parts diagram for the Elden Single Control Bathroom Faucet shows 17 part numbers, including handles, trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
LF-042-EDCC, LF-042-EDKK, LF-042-EDYY. The letters at the end of a Pfister model number are the finish.
