Pfirst Series 1-Handle Tub & Shower Trim Kit parts
10 part numbers on Pfister’s parts diagram. 10 in our catalog, the rest we order in.
Model numbers: J89-030CJ89-030KLJ89-030C

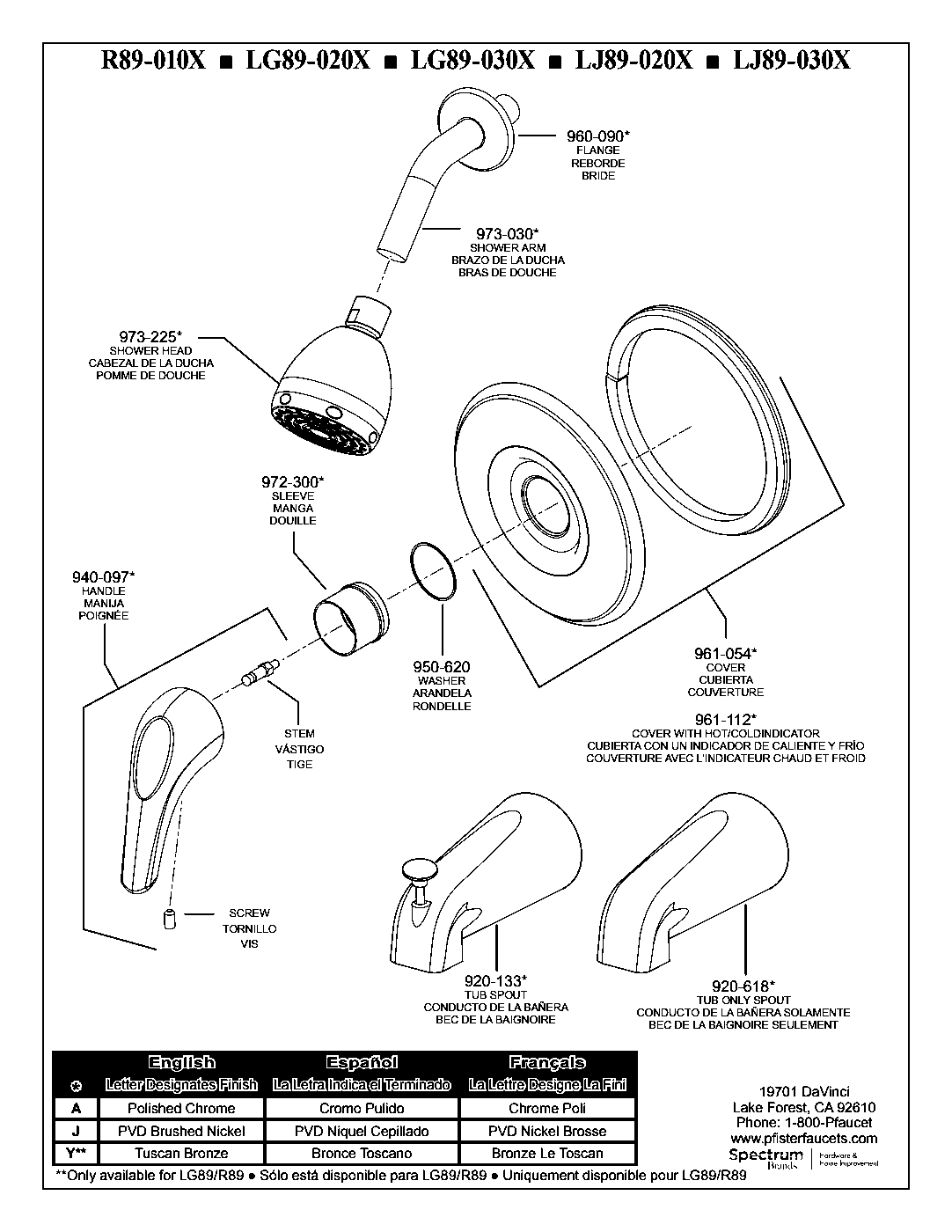

Pfirst Series 1-Handle Tub & Shower Trim Kit exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
961-054
Verified fit On Pfister’s Pfirst Series 1-Handle Tub & Shower Trim Kit parts diagram
Pfirst Series 1-Handle Tub & Shower Trim Kit parts list
- 960-0902 finishes
Verified fit On Pfister’s parts diagram for this model
$13.60 - 973-03011 finishes
Verified fit On Pfister’s parts diagram for this model
$28.90 Pfirst Modern Shwhd 1f Wtrsns Bk Bk
Verified fit On Pfister’s parts diagram for this model
$45.05- 972-3006 finishes
Verified fit On Pfister’s parts diagram for this model
$29.75 - 940-0973 finishes
Tub and Shower Faucets and Accessories
Verified fit On Pfister’s parts diagram for this model
$54.40 - 961-0543 finishes
Verified fit On Pfister’s parts diagram for this model
$52.70 Protective Washer for Tub & Shower Trim Kits
Verified fit On Pfister’s parts diagram for this model
$5.95Verified fit On Pfister’s parts diagram for this model
$4.25- 920-1334 finishes
Verified fit On Pfister’s parts diagram for this model
$88.40 - 920-6183 finishes
Verified fit On Pfister’s parts diagram for this model
$56.95
About the Pfister Pfirst Series 1-Handle Tub & Shower Trim Kit
Pfirst Series™ is a complete line of kitchen, laundry, lavatory, and tub/shower fixtures built for the job. Reliable performance, durable construction, and a clean finish—delivering long-term value where it counts.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Valve body sold separately
- Invigorating spray helps relieve tension
- 3-hole installation
- Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
- Hot/Cold indicator on trim
- Quick trim wall flange eliminates exposed screws and cuts installation time by 50%
- QuickConnect allows easy installation of the tub spout by slipping the adapter over a copper pipe and securing with a set screw
- QuickConnect Spout™
| GPM Flow Rate | 2.0 |
|---|---|
| # of Handles | 1 |
| Functions Included | Invigorating Spray |
| Showerhead Diameter | 2-13/32 |
| Tub/Shower Diverter Type | Push/Pull |
Pfirst Series 1-Handle Tub & Shower Trim Kit parts questions
What cartridge does the Pfister Pfirst Series 1-Handle Tub & Shower Trim Kit (J89-030C) use?
Pfister's parts diagram for the J89-030C does not list a separate cartridge. The valve may be sold separately; check the valve model on the diagram or ask our counter.
How many replacement parts are on the J89-030C diagram?
Pfister's parts diagram for the Pfirst Series 1-Handle Tub & Shower Trim Kit shows 10 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
J89-030C, J89-030K, LJ89-030C. The letters at the end of a Pfister model number are the finish.
