Kai 1-Handle Pull-Down Kitchen Faucet parts
14 part numbers on Pfister’s parts diagram. 10 in our catalog, the rest we order in.
Model numbers: GT529-IHBGT529-IHCGT529-IHS

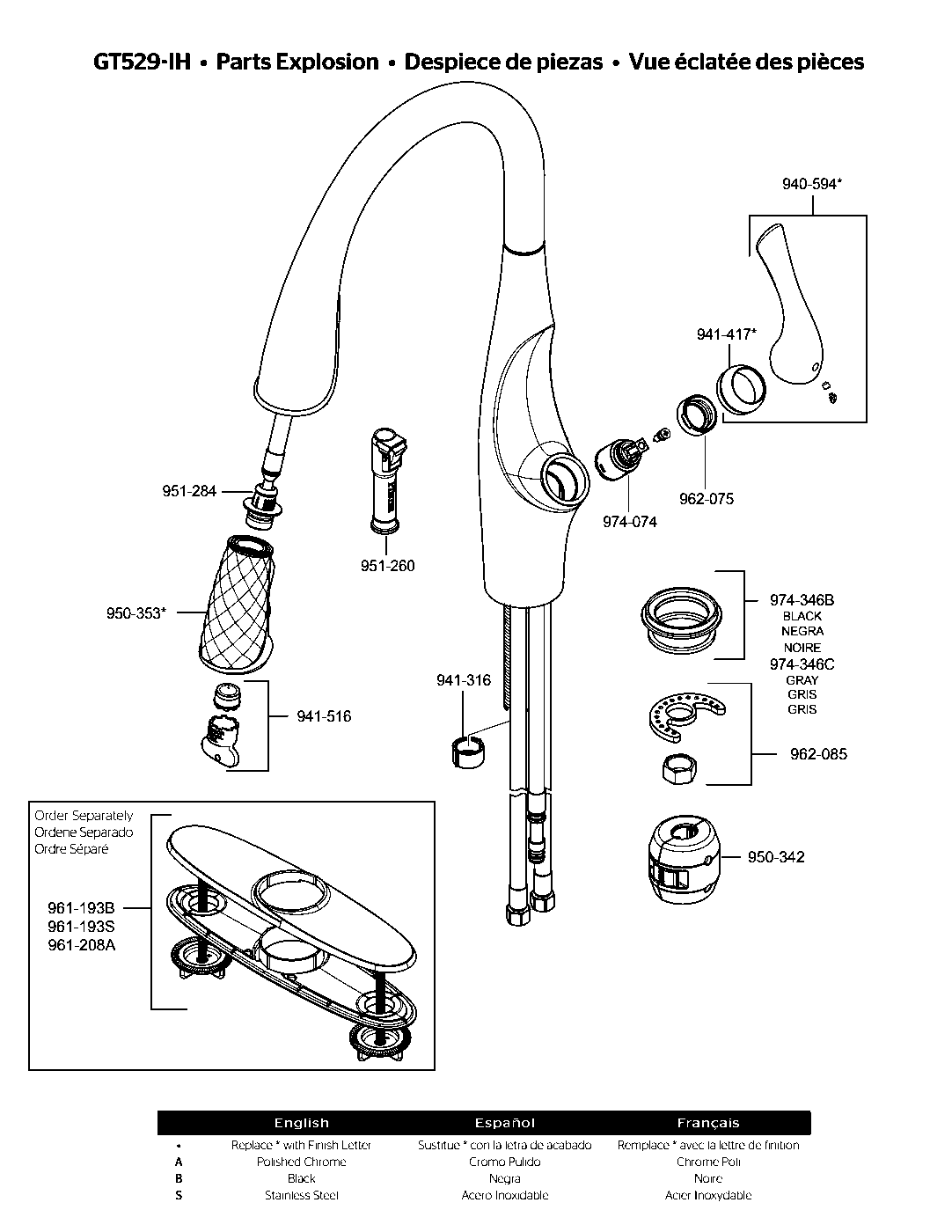

Kai 1-Handle Pull-Down Kitchen Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
961-193
Verified fit On Pfister’s Kai 1-Handle Pull-Down Kitchen Faucet parts diagram
Kai 1-Handle Pull-Down Kitchen Faucet parts list
- 940-5944 finishes
Indira Lvr Hdl W/dome Cap-set Scr 529 Nd Scr 529 Nd
Verified fit On Pfister’s parts diagram for this model
$54.40 Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
$20.40Verified fit On Pfister’s parts diagram for this model
- 974-3462 finishes
Renato Putty Plt W/eva Foam Rn 1h Bk
Verified fit On Pfister’s parts diagram for this model
$5.10 Kai Sprhd S/a Gt529 Kai Bk Kai Bk
Verified fit On Pfister’s parts diagram for this model
$62.05Connection Nut for Installing Faucet to Deck
Verified fit On Pfister’s parts diagram for this model
$5.95Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
$27.20- 961-1934 finishes
Verified fit On Pfister’s parts diagram for this model
$38.25 Verified fit On Pfister’s parts diagram for this model
$51.85
About the Pfister Kai 1-Handle Pull-Down Kitchen Faucet
The art of home now delivered in the kitchen. It’s the very first of its kind – never before has a faucet handle been integrated into the whole essence to create a single, fluid form. Everything about Kai functions from within this unique and innovative design, from the dual-function pull-down spray head to the ergonomic yet oh-so-elegantly integrated handle. Modern and artful deliver bold innovat
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
- Complies with Federal and State safe drinking water legislation.
- Optional decorative deck plate sold separately
- 1-hole installation
- High arc spout for added clearance and reach
- Pull-down spray head, select from 3 water settings conveniently in the palm of your hand
- Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
- 3-Function Spray Head
- Concealed Spray Head
| GPM Flow Rate | 1.8 |
|---|---|
| # of Handles | 1 |
| Total Spout Height | 19-17/32 |
| Deck To Aerator Height | 11-9/16 |
| Deckplate Included | No |
| Max Deck Thickness | 4 |
| Soap Dispenser | No |
| Spray Functions | Spray and Stream with Pause Control |
| Pull-Out/Down Hose Length | 68 |
| Pull-Out/Down Hose Material | Braided Nylon |
| Faucet Arc Type | High-Arc |
| Configurations | 1-Hole |
Kai 1-Handle Pull-Down Kitchen Faucet parts questions
What cartridge does the Pfister Kai 1-Handle Pull-Down Kitchen Faucet (GT529-IHB) use?
Pfister's parts diagram for the GT529-IHB lists 962-075 (Cartridge Retainer Nut), 974-074 (Ceramic Disc Cartridge).
How many replacement parts are on the GT529-IHB diagram?
Pfister's parts diagram for the Kai 1-Handle Pull-Down Kitchen Faucet shows 14 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
GT529-IHB, GT529-IHC, GT529-IHS. The letters at the end of a Pfister model number are the finish.
