Bixby 1-Handle Pull-Out Kitchen Faucet parts
16 part numbers on Pfister’s parts diagram. 9 in our catalog, the rest we order in.
Model numbers: F-538-5LCCF-538-5LCSF-538-5LCYLF-538-5LCS

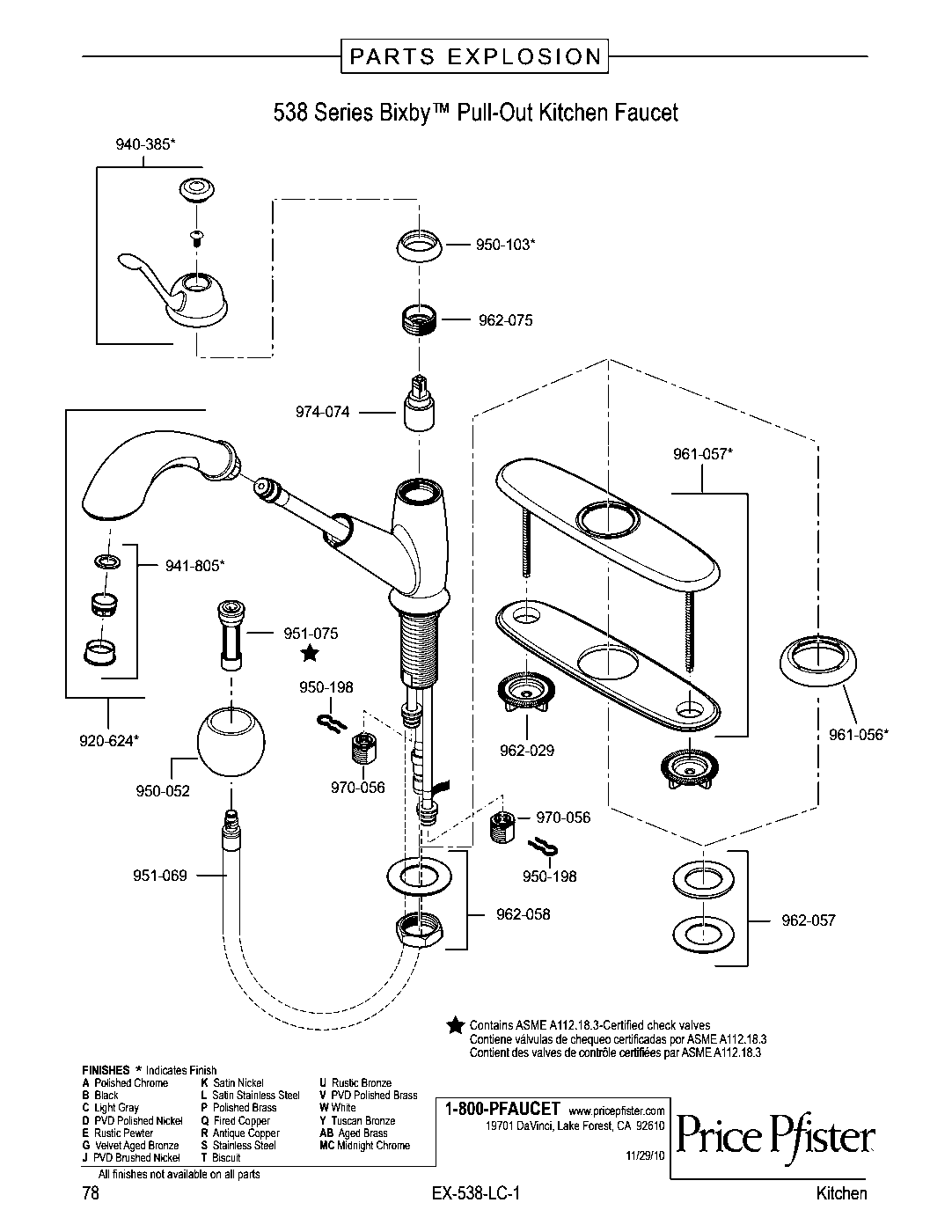

Bixby 1-Handle Pull-Out Kitchen Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Bixby 1-Handle Pull-Out Kitchen Faucet parts list
- 940-3852 finishes
Parts Bixby Handle Ss Stainless Steel
Verified fit On Pfister’s parts diagram for this model
$55.25 Verified fit On Pfister’s parts diagram for this model
$19.55Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
$20.40Bixby 538 Series Escutcheon Assembly
Verified fit On Pfister’s parts diagram for this model
$95.20Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
Bixby Base RNG F538 BX TB Tuscan Bronze
Verified fit On Pfister’s parts diagram for this model
$21.25Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$5.95Verified fit On Pfister’s parts diagram for this model
$28.05Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$130.05Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
About the Pfister Bixby 1-Handle Pull-Out Kitchen Faucet
Bixby features a comfortable pull-out spray head, providing a stylish yet practical upgrade for today's kitchen. The spray head includes concealed activation buttons for easier control. Bixby offers chic style and practical functionality to complement any kitchen decor.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
- Complies with Federal and State safe drinking water legislation.
- Includes decorative deck plate
- Mid-arc spout to help provide easy access
- Pull-Out spray head with toggle button to select spray or stream modes conveniently in the palm of your hand
- Pull-Out spray head can be detached and extended for more efficient cleaning and rinsing
- Convenient Quick Install Tool included to speed up installation
- Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
- 2-Function Spray Head
| GPM Flow Rate | 2.2 |
|---|---|
| # of Handles | 1 |
| Total Spout Height | 9-30/32 |
| Deck To Aerator Height | 6 |
| Deckplate Included | Yes |
| Max Deck Thickness | 2-1/4 |
| Soap Dispenser | No |
| Spray Functions | Spray, Stream |
| Pull-Out/Down Hose Length | 55 |
| Pull-Out/Down Hose Material | Braided Nylon |
| Faucet Arc Type | Medium-Arc |
| Configurations | 1-Hole 3-Hole |
Bixby 1-Handle Pull-Out Kitchen Faucet parts questions
What cartridge does the Pfister Bixby 1-Handle Pull-Out Kitchen Faucet (F-538-5LCC) use?
Pfister's parts diagram for the F-538-5LCC lists 962-075 (Cartridge Retainer Nut), 974-074 (Ceramic Disc Cartridge).
How many replacement parts are on the F-538-5LCC diagram?
Pfister's parts diagram for the Bixby 1-Handle Pull-Out Kitchen Faucet shows 16 part numbers, including handles, trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
F-538-5LCC, F-538-5LCS, F-538-5LCY, LF-538-5LCS. The letters at the end of a Pfister model number are the finish.
