Pasadena 1-Handle Touchless Kitchen Faucet parts
23 part numbers on Pfister’s parts diagram. 14 in our catalog, the rest we order in.
Model numbers: F-529-EPDS

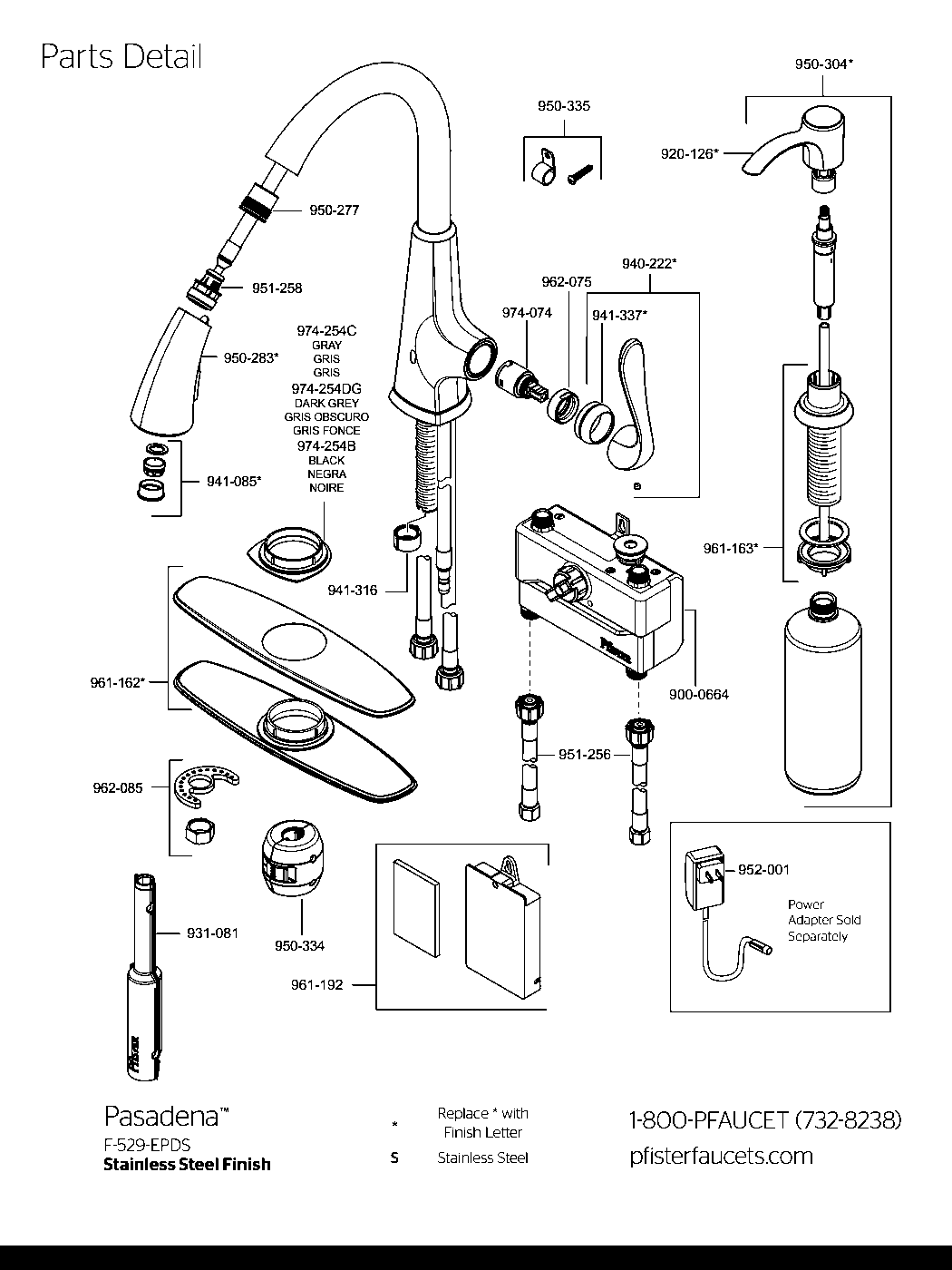

Pasadena 1-Handle Touchless Kitchen Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
961-163
Pasadena Soap Dspnsr Mntg Shnk 529 Pd
Verified fit On Pfister’s Pasadena 1-Handle Touchless Kitchen Faucet parts diagram
Pasadena 1-Handle Touchless Kitchen Faucet parts list
- 950-3046 finishes
Pasadena Soap Dspnsr S/a F529 Pd
Verified fit On Pfister’s parts diagram for this model
$45.05 Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
Accudock Docking Assembly for 534sl/534gf
Verified fit On Pfister’s parts diagram for this model
$7.65- 940-2224 finishes
HDL SA WDOME CAP 529 Polished Chrome
Verified fit On Pfister’s parts diagram for this model
$48.45 Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
$20.40- 941-3374 finishes
Verified fit On Pfister’s parts diagram for this model
$7.65 - 974-2542 finishes
Pasadena Putty Plt S/a 529 Pd Bk .52974254b4b A
Verified fit On Pfister’s parts diagram for this model
$3.40 - 950-2833 finishes
Verified fit On Pfister’s parts diagram for this model
$73.10 - 941-0859 finishes
Verified fit On Pfister’s parts diagram for this model
$11.90 - 961-1632 finishes
Pasadena Soap Dspnsr Mntg Shnk 529 Pd
Verified fit On Pfister’s parts diagram for this model
$20.40 Connection Nut for Installing Faucet to Deck
Verified fit On Pfister’s parts diagram for this model
$5.95- 961-1623 finishes
DKPLT SA 529 PD CR Polished Chrome
Verified fit On Pfister’s parts diagram for this model
$61.20 Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
About the Pfister Pasadena 1-Handle Touchless Kitchen Faucet
A truly versatile design, the Pasadena collection is a transitional piece that defies definition to complement a variety of decorative settings. Its clean curves and sturdy foundation radiate style, making this fixture a favorable choice for any home decor. Pasadena simplifies remodeling by offering a full range of faucet options from bath faucets to kitchen faucets, giving you a convenient way t
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
- Complies with Federal and State safe drinking water legislation.
- Includes decorative deck plate
- Includes coordinating soap dispenser
- High arc spout for added clearance and reach
- Pull-down spray head with toggle button to select spray or stream modes conveniently in the palm of your hand
- Advanced spray head docking system ensures a secure, tight connection to the faucet spout
- Wipe Clean Nozzles allows you to wipe away mineral deposits with the swipe of a finger
- Includes 36” integrated PE-RT supply lines with 3/8” female fittings. No need to purchase separate water-supply connection lines.
| GPM Flow Rate | 1.8 |
|---|---|
| # of Handles | 1 |
| Total Spout Height | 15-9/16 |
| Deck To Aerator Height | 9-23/32 |
| Deckplate Included | Yes |
| Max Deck Thickness | 3.0 |
| Soap Dispenser | Yes |
| Spray Functions | Spray and Stream |
| Pull-Out/Down Hose Length | 18 |
| Faucet Arc Type | High-Arc |
| Configurations | 1-Hole 2-Hole 3-Hole 4-Hole |
Pasadena 1-Handle Touchless Kitchen Faucet parts questions
What cartridge does the Pfister Pasadena 1-Handle Touchless Kitchen Faucet (F-529-EPDS) use?
Pfister's parts diagram for the F-529-EPDS lists 962-075 (Cartridge Retainer Nut), 974-074 (Ceramic Disc Cartridge).
How many replacement parts are on the F-529-EPDS diagram?
Pfister's parts diagram for the Pasadena 1-Handle Touchless Kitchen Faucet shows 23 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
F-529-EPDS. The letters at the end of a Pfister model number are the finish.
