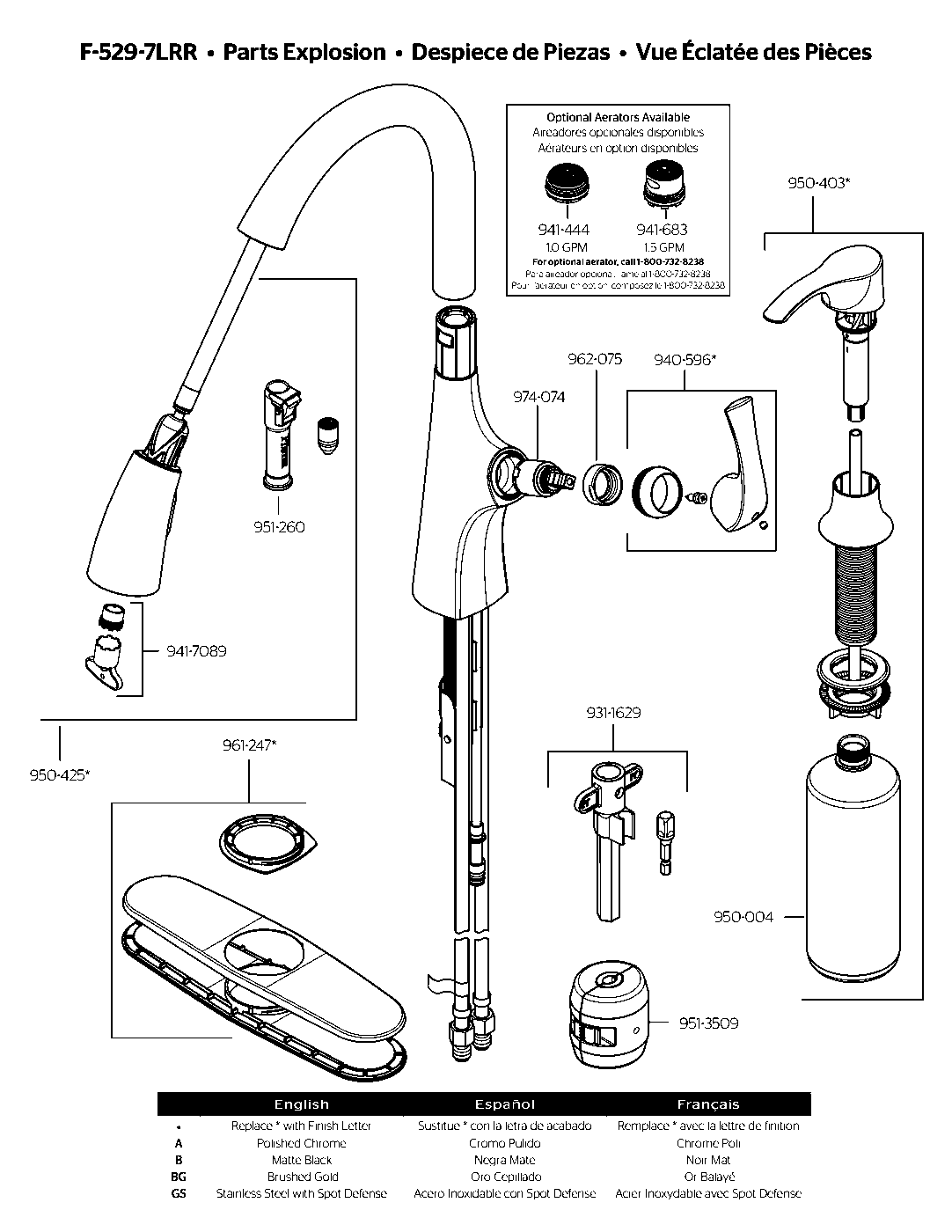

Ladera 1-Handle Pull-Down Kitchen Faucet parts diagram
Pfister · Kitchen Faucets / Pull-Down

Ladera 1-Handle Pull-Down Kitchen Faucet parts

13 part numbers on Pfister’s parts diagram. 12 in our catalog, the rest we order in.

Model numbers: F-529-7LRRBF-529-7LRRBGF-529-7LRRCF-529-7LRRGS

Open the diagramPfister’s PDF
Dripping or hard to turn? The usual fix on this model is the .

Ladera 1-Handle Pull-Down Kitchen Faucet exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Ladera 1-Handle Pull-Down Kitchen Faucet exploded parts diagram

940-596

Ladera Hdl W/ext-dome Cap-scr 529 Lr 529 Lr

Verified fit On Pfister’s Ladera 1-Handle Pull-Down Kitchen Faucet parts diagram

$28.90

Ladera 1-Handle Pull-Down Kitchen Faucet parts list

About the Pfister Ladera 1-Handle Pull-Down Kitchen Faucet

The Ladera family offers a simplicity that seamlessly ties together your decor. Modern and traditional elements marry using straight lines and sweeping curves to create aesthetic harmony and visual balance in a transitional design. The blend of styles makes the Ladera collection the perfect option for an easy refresh or an entire remodel that will update your current look and stand the test of tim

  • TopPfit™ technology allows you to easily install your kitchen faucet from above the sink in minutes
  • MagnePfit™ uses powerful magnetic docking to keep your spray head firmly secured
  • HydroBlade’s™ high pressure water blade uses concentrated force to clean away tough messes
  • Auto-Align™ ensures your spray head aligns correctly all on its own
  • Pull-down spray head, select from 3 water settings conveniently in the palm of your hand
  • High arc spout for added clearance and reach
  • Rotating spout allows for greater versatility like hand washing delicates and sink cleaning
  • Wipe Clean Nozzles allows you to wipe away mineral deposits with the swipe of a finger
  • Elegant forward handle design underscores ergonomic function and helps where space behind the faucet is limited
  • 1, 2, 3 or 4-hole installation
Specifications
GPM Flow Rate1.8
# of Handles1
Total Spout Height16
Deck To Aerator Height9-13/16
Deckplate IncludedYes
Max Deck Thickness3
Soap DispenserYes
Spray FunctionsSpray and Stream, HydroBlade
Supply LinesPERT Flex-Line
Pull-Out/Down Hose Length14.5
Pull-Out/Down Hose MaterialBraided Nylon
Faucet Arc TypeHigh-Arc
Configurations1-Hole 2-Hole 3-Hole 4-Hole

Ladera 1-Handle Pull-Down Kitchen Faucet parts questions

What cartridge does the Pfister Ladera 1-Handle Pull-Down Kitchen Faucet (F-529-7LRRB) use?

Pfister's parts diagram for the F-529-7LRRB lists 962-075 (Cartridge Retainer Nut), 974-074 (Ceramic Disc Cartridge).

How many replacement parts are on the F-529-7LRRB diagram?

Pfister's parts diagram for the Ladera 1-Handle Pull-Down Kitchen Faucet shows 13 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.

Which model numbers are covered on this page?

F-529-7LRRB, F-529-7LRRBG, F-529-7LRRC, F-529-7LRRGS. The letters at the end of a Pfister model number are the finish.
