Exemplar 1-Handle Pull-Down Kitchen Faucet parts
11 part numbers on Pfister’s parts diagram. 10 in our catalog, the rest we order in.
Model numbers: F-529-7EPCF-529-7EPGSF-529-7EPSDB

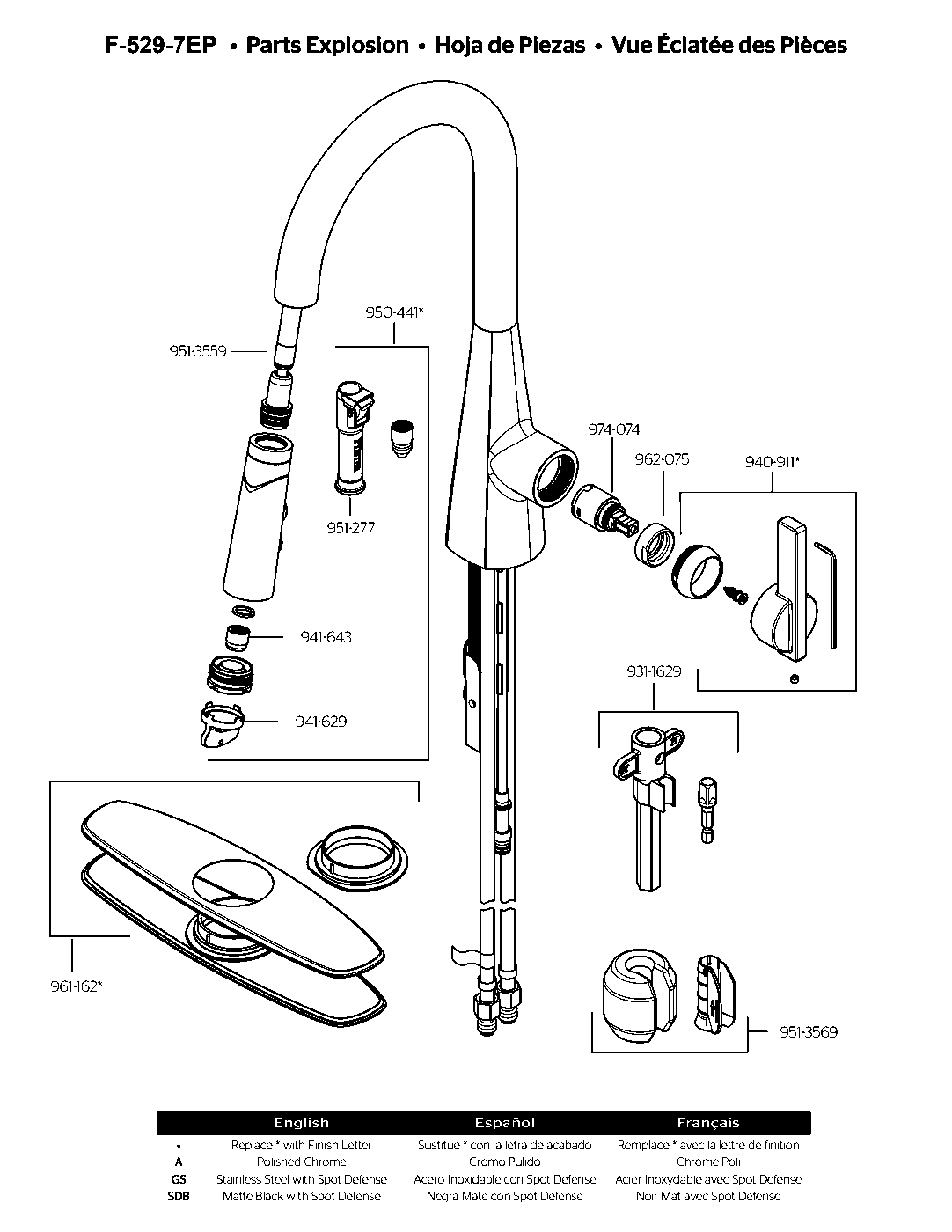

Exemplar 1-Handle Pull-Down Kitchen Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
950-441
Ceylon Sprhd S/a W/p/o Hs W/q/c 529 Clo Pc
Verified fit On Pfister’s Exemplar 1-Handle Pull-Down Kitchen Faucet parts diagram
Exemplar 1-Handle Pull-Down Kitchen Faucet parts list
- 950-4414 finishes
Ceylon Sprhd S/a W/p/o Hs W/q/c 529 Clo Pc
Verified fit On Pfister’s parts diagram for this model
$69.70 Verified fit On Pfister’s parts diagram for this model
$37.40Verified fit On Pfister’s parts diagram for this model
$20.40Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$16.15Verified fit On Pfister’s parts diagram for this model
$4.25Mntg Nut W/instl Tool Lr Tool Lr
Verified fit On Pfister’s parts diagram for this model
$21.25Stellen Sprfc Remvl Tool 529/572 Stn Stn - Black
Verified fit On Pfister’s parts diagram for this model
$3.40- 961-1623 finishes
DKPLT SA 529 PD CR Polished Chrome
Verified fit On Pfister’s parts diagram for this model
$61.20 Verified fit On Pfister’s parts diagram for this model
$21.25
About the Pfister Exemplar 1-Handle Pull-Down Kitchen Faucet
Picture this: an eye-catching yet minimalist kitchen faucet that elevates any home décor. A distinctive tapered silhouette that’s as bold as it is elegant. Geometric forms that emphasize precision and an ergonomic pivoting spray head. It’s the epitome of modern design and innovation. It’s Exemplar™.
- Pivot™ spray head easily tilts forward or backward to clean dishes, rinse the sink and fill pots and pans
- TopPfit™ technology allows you to easily install your kitchen faucet from above the sink in minutes
- MagnePfit™ features powerful magnets that keep your kitchen faucet spray head firmly secured
- Spot Defense® finish protects your faucet from water spots and fingerprints
- Pull-down spray head with toggle button to select Stream, Spray, or Pause mode conveniently in the palm of your hand
- High arc spout for added clearance and reach
- 360 degree rotating spout allows for greater versatility and maneuverability
- Elegant forward-handle design underscores ergonomic function and helps where space behind the faucet is limited
- Includes optional decorative deck plate
- Includes 36" integrated PE-RT supply lines with 3/8" female fittings
| GPM Flow Rate | 1.8 |
|---|---|
| # of Handles | 1 |
| Total Spout Height | 16-3/4 |
| Deck To Aerator Height | 7-9/16 |
| Deckplate Included | No |
| Max Deck Thickness | 3 |
| Soap Dispenser | No |
| Spray Functions | Spray, Stream, Pause Control |
| Supply Lines | PERT Flex-Line |
| Pull-Out/Down Hose Length | 12.7 |
| Pull-Out/Down Hose Material | Braided Nylon |
| Faucet Arc Type | High-Arc |
| Configurations | 1-Hole 3-Hole |
Exemplar 1-Handle Pull-Down Kitchen Faucet parts questions
What cartridge does the Pfister Exemplar 1-Handle Pull-Down Kitchen Faucet (F-529-7EPC) use?
Pfister's parts diagram for the F-529-7EPC lists 974-074 (Ceramic Disc Cartridge), 962-075 (Cartridge Retainer Nut).
How many replacement parts are on the F-529-7EPC diagram?
Pfister's parts diagram for the Exemplar 1-Handle Pull-Down Kitchen Faucet shows 11 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
F-529-7EPC, F-529-7EPGS, F-529-7EPSDB. The letters at the end of a Pfister model number are the finish.
