Treviso 2-Handle 8" Widespread Bathroom Faucet parts
22 part numbers on Pfister’s parts diagram. 20 in our catalog, the rest we order in.
Model numbers: F-049-DC00F-049-DK00F-049-DV00F-049-DY00LF-049-DK00

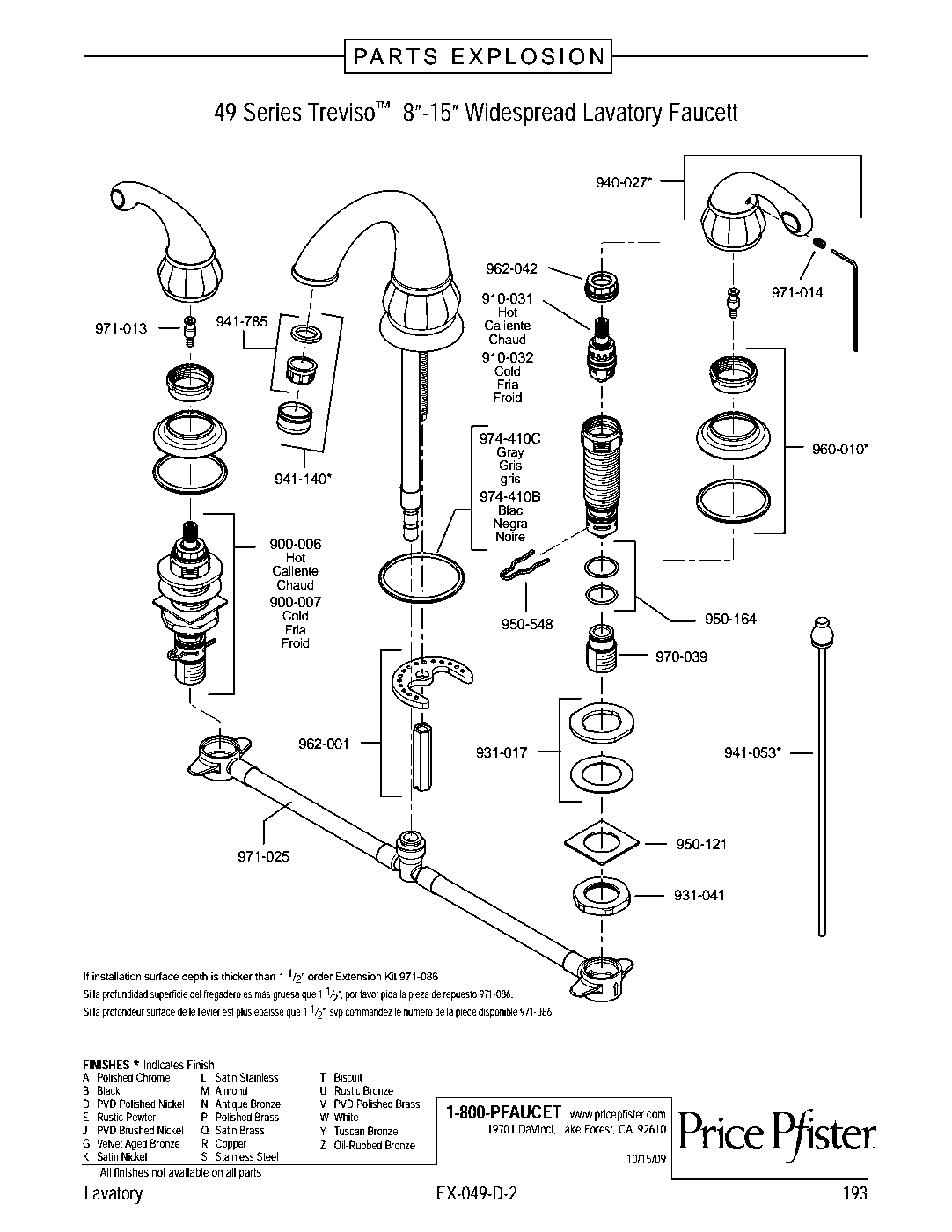

Treviso 2-Handle 8" Widespread Bathroom Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
900-006
Hot Side Valve Body for Widespread 49 Series
Verified fit On Pfister’s Treviso 2-Handle 8" Widespread Bathroom Faucet parts diagram
Treviso 2-Handle 8" Widespread Bathroom Faucet parts list
- 940-0274 finishes
Verified fit On Pfister’s parts diagram for this model
$54.40 Verified fit On Pfister’s parts diagram for this model
$6.80Verified fit On Pfister’s parts diagram for this model
$5.95Ceramic Disc Hot Side 1/4 Turn Cartridge
Verified fit On Pfister’s parts diagram for this model
$13.60Verified fit On Pfister’s parts diagram for this model
$13.60Verified fit On Pfister’s parts diagram for this model
$5.95Ceramic Disc Cold Side 1/4 Turn Cartridge
Verified fit On Pfister’s parts diagram for this model
$13.60Verified fit On Pfister’s parts diagram for this model
- 960-0104 finishes
Georgetown / Portola / Savannah / Treviso 49 Series Flange Kit
Verified fit On Pfister’s parts diagram for this model
$31.45 Verified fit On Pfister’s parts diagram for this model
Hot Side Valve Body for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$79.05Cold Side Valve Body for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$79.05Verified fit On Pfister’s parts diagram for this model
$6.80Verified fit On Pfister’s parts diagram for this model
$5.95Inlet Connector for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$19.55Verified fit On Pfister’s parts diagram for this model
$7.65Verified fit On Pfister’s parts diagram for this model
$6.80- 941-0534 finishes
Treviso 48 / 49 Series Drain Assembly Pull Rod Knob
Verified fit On Pfister’s parts diagram for this model
$11.90 Verified fit On Pfister’s parts diagram for this model
$6.80Quick Connect Hose Assembly for Widespread 49 Series
Verified fit On Pfister’s parts diagram for this model
$33.15Sput Locknut for 26/49/531 Series
Verified fit On Pfister’s parts diagram for this model
$6.80Widespread 49 Series Extension Kit
Verified fit On Pfister’s parts diagram for this model
$123.25
About the Pfister Treviso 2-Handle 8" Widespread Bathroom Faucet
A fresh and unique design with Italian influences, the Treviso collection's ornate accessories coordinate the bath with a classic European look. Taking cues from traditional designs, Treviso boasts intricate, scalloped details, elongated lines, and soft, flowing curves. Treviso is sure to elevate the bathroom with timeless elegance.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
- Complies with Federal and State safe drinking water legislation.
- Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
- Faucet mounted on sink deck or countertop
- TiteSeal™ Mounting Technology eliminates the need for putty or silicone and simplifies installation
- Pfast Connect™ reduces installation time and guarantees a secure connection to water supply lines
- Retail exclusive faucet
- Includes valve and cartridge
- 3-hole installation
| GPM Flow Rate | 1.5 |
|---|---|
| # of Handles | 2 |
| Total Spout Height | 5-9/16 |
| Deck To Aerator Height | 3-3/4 |
| Drain Assembly | American All Plastic |
| Max Deck Thickness | 1-1/2 |
| Configurations | 3-Hole |
Treviso 2-Handle 8" Widespread Bathroom Faucet parts questions
What cartridge does the Pfister Treviso 2-Handle 8" Widespread Bathroom Faucet (F-049-DC00) use?
Pfister's parts diagram for the F-049-DC00 lists 962-042 (Cartridge Retainer Nut), 910-031 (Ceramic Disc Hot Side 1/4 Turn Cartridge), 971-013 (Stem Extension), 910-032 (Ceramic Disc Cold Side 1/4 Turn Cartridge).
How many replacement parts are on the F-049-DC00 diagram?
Pfister's parts diagram for the Treviso 2-Handle 8" Widespread Bathroom Faucet shows 22 part numbers, including handles, trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
F-049-DC00, F-049-DK00, F-049-DV00, F-049-DY00, LF-049-DK00. The letters at the end of a Pfister model number are the finish.
