Treviso Single Control Vessel Bathroom Faucet parts
10 part numbers on Pfister’s parts diagram. 5 in our catalog, the rest we order in.
Model numbers: F-040-DK00

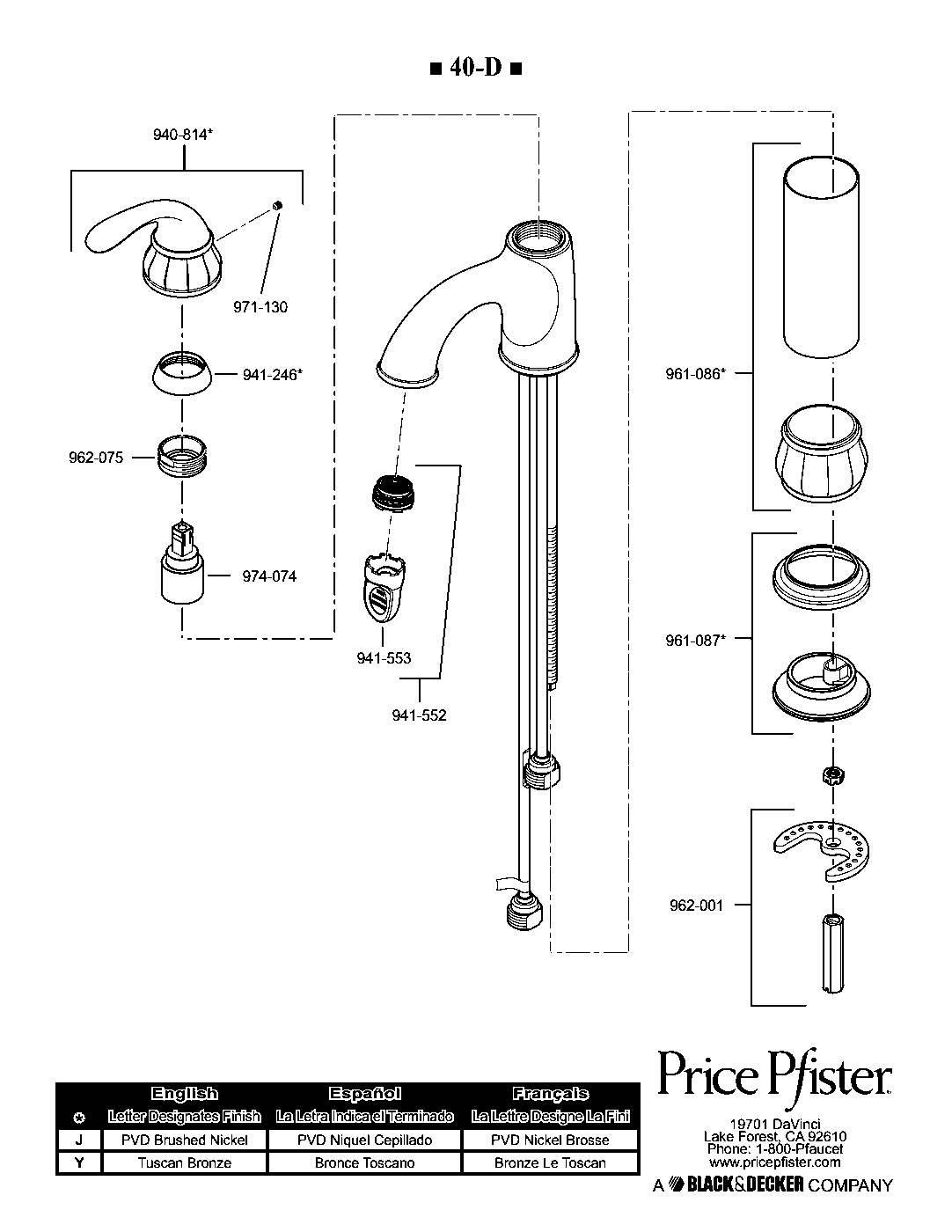

Treviso Single Control Vessel Bathroom Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
941-246
Verified fit On Pfister’s Treviso Single Control Vessel Bathroom Faucet parts diagram
Treviso Single Control Vessel Bathroom Faucet parts list
Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$6.80- 941-2464 finishes
Verified fit On Pfister’s parts diagram for this model
$6.80 Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
$20.40Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$7.65
About the Pfister Treviso Single Control Vessel Bathroom Faucet
A fresh and unique design with Italian influences, the Treviso collection's ornate accessories coordinate the bath with a classic European look. Taking cues from traditional designs, Treviso boasts intricate, scalloped details, elongated lines, and soft, flowing curves. Treviso is sure to elevate the bathroom with timeless elegance.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
- Complies with Federal and State safe drinking water legislation.
- Meets or exceeds EPA WaterSense Standards, which reduces water consumption by 30% and helps average households save up to $200 in their annual water bill
- Faucet mounted on sink deck or countertop
- Includes single post mounting ring
- Includes valve and cartridge
- 1-hole installation
- Features a grid drain assembly
- Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
| GPM Flow Rate | 1.5 |
|---|---|
| # of Handles | 1 |
| Total Spout Height | 12.875 |
| Deck To Aerator Height | 8.3125 |
| Deckplate Included | N/A |
| Drain Assembly | Grid Strainer |
| Configurations | 1-Hole |
Treviso Single Control Vessel Bathroom Faucet parts questions
What cartridge does the Pfister Treviso Single Control Vessel Bathroom Faucet (F-040-DK00) use?
Pfister's parts diagram for the F-040-DK00 lists 962-075 (Cartridge Retainer Nut), 974-074 (Ceramic Disc Cartridge).
How many replacement parts are on the F-040-DK00 diagram?
Pfister's parts diagram for the Treviso Single Control Vessel Bathroom Faucet shows 10 part numbers, including handles, trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
F-040-DK00. The letters at the end of a Pfister model number are the finish.
