Lima 1-Handle Kitchen Faucet parts
11 part numbers on Pfister’s parts diagram. 11 in our catalog, the rest we order in.
Model numbers: F-034-4LMGS

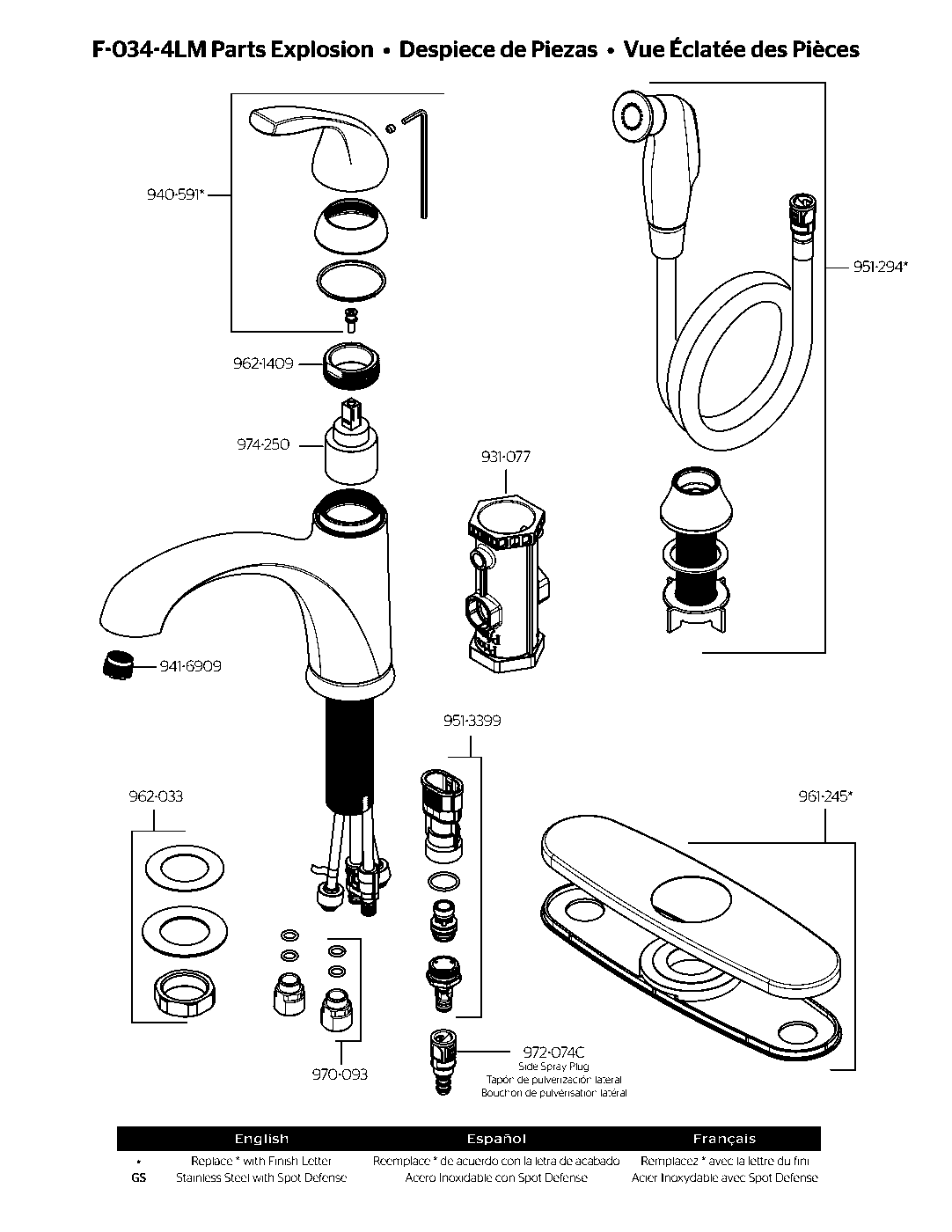

Lima 1-Handle Kitchen Faucet exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Lima 1-Handle Kitchen Faucet parts list
Lima Hdl S/a 34 Lm Gs Lm Gs - Spot Defense Brushed Nickel
Verified fit On Pfister’s parts diagram for this model
$47.60- 951-2942 finishes
Verified fit On Pfister’s parts diagram for this model
$45.90 Lima Nut 35mm Cart 34 Lm Cart 34 Lm
Verified fit On Pfister’s parts diagram for this model
$9.35Verified fit On Pfister’s parts diagram for this model
$28.05Kitchen and Lavatory Installation Tool
Verified fit On Pfister’s parts diagram for this model
$13.60Verified fit On Pfister’s parts diagram for this model
$6.80Lima Q/c S/a W/dvtr 34 Lm Dvtr 34 Lm
Verified fit On Pfister’s parts diagram for this model
$16.15Verified fit On Pfister’s parts diagram for this model
$20.40Lima Dkplt S/a 34 Lm Gs Lm Gs - Spot Defense Brushed Nickel
Verified fit On Pfister’s parts diagram for this model
$39.95Henlow Plg W/blu Snap 036 Hl Ltg Ltg
Verified fit On Pfister’s parts diagram for this model
$3.40Verified fit On Pfister’s parts diagram for this model
$5.95
About the Pfister Lima 1-Handle Kitchen Faucet
Never underestimate simplicity. Stout and sweet with a softly-ergonomic handle, Lima is the perfect starting point for your update. Balance your traditional side with a touch of modern and see how well all your accent pieces and new color choices play well with Lima.
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
- Complies with Federal and State safe drinking water legislation.
- Optional side spray included
- Includes decorative deck plate
- TiteSeal™ Mounting Technology eliminates the need for putty or silicone and simplifies installation
- Pfast Connect™ technology securely connects water supply lines with a quick click
- Spout swivels 360 degrees for maximum maneuverability
- Mid-arc spout to help provide easy access
- Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
| GPM Flow Rate | 1.8 |
|---|---|
| # of Handles | 1 |
| Deck To Aerator Height | 5-25/32 |
| Deckplate Included | Yes |
| Max Deck Thickness | 3 |
| Soap Dispenser | No |
| Type Side Spray | Optional Side Spray |
| Faucet Arc Type | Medium-Arc |
| Configurations | 1-Hole 2-Hole 3-Hole 4-Hole |
Lima 1-Handle Kitchen Faucet parts questions
What cartridge does the Pfister Lima 1-Handle Kitchen Faucet (F-034-4LMGS) use?
Pfister's parts diagram for the F-034-4LMGS lists 974-250 (35mm Cartridge).
How many replacement parts are on the F-034-4LMGS diagram?
Pfister's parts diagram for the Lima 1-Handle Kitchen Faucet shows 11 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
F-034-4LMGS. The letters at the end of a Pfister model number are the finish.
