Sedona 1-Handle Tub & Shower Trim with Valve parts diagram
Pfister · Tub & Shower / Tub & Shower Trim Kits

Sedona 1-Handle Tub & Shower Trim with Valve parts

10 part numbers on Pfister’s parts diagram. 4 in our catalog, the rest we order in.

Model numbers: 808-LT0K808-LT0Y

Open the diagramPfister’s PDF

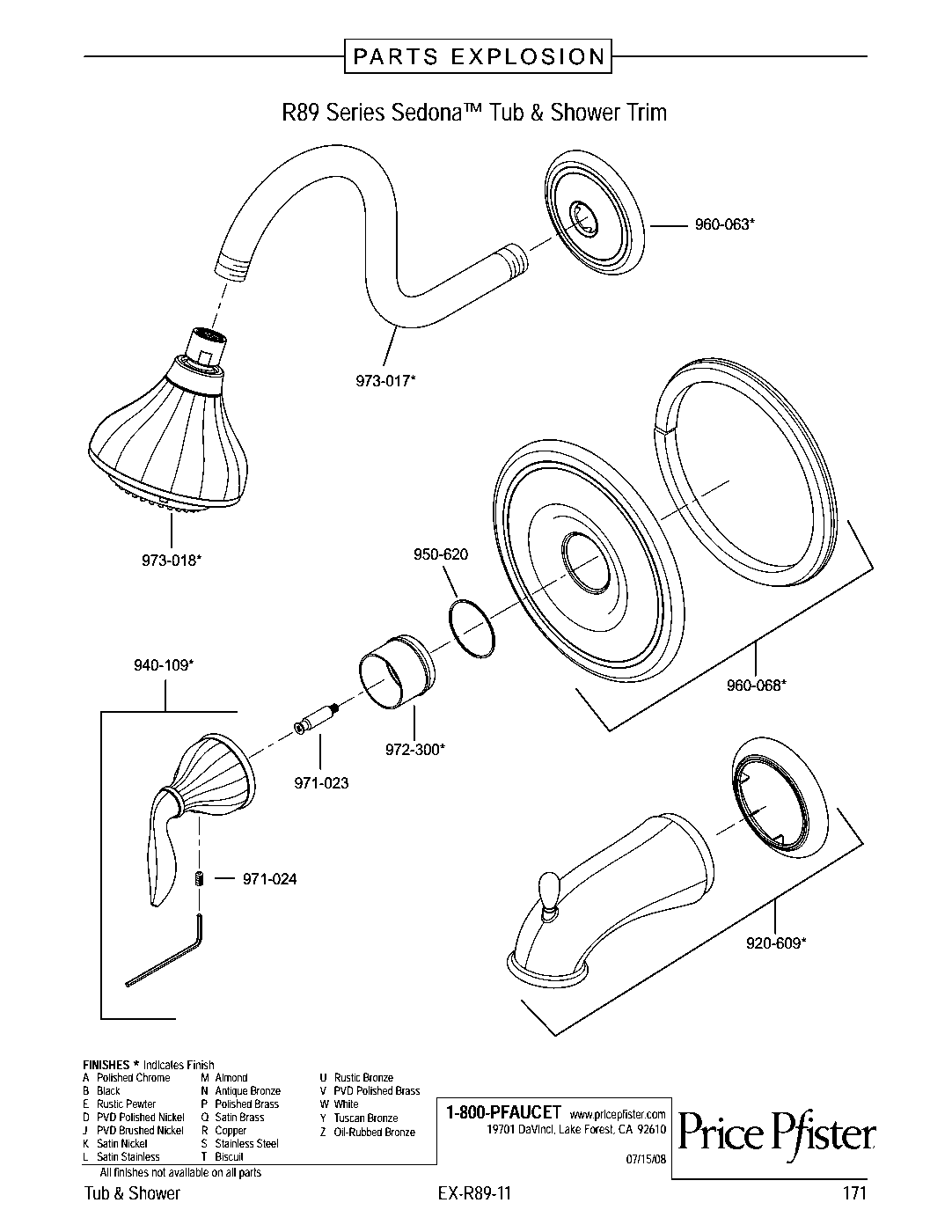

Sedona 1-Handle Tub & Shower Trim with Valve exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Sedona 1-Handle Tub & Shower Trim with Valve exploded parts diagram

972-300

Sleeve Retainer

Verified fit On Pfister’s Sedona 1-Handle Tub & Shower Trim with Valve parts diagram

$29.75

Sedona 1-Handle Tub & Shower Trim with Valve parts list

About the Pfister Sedona 1-Handle Tub & Shower Trim with Valve

The Sedona collection, with its high arc and soft curves reminiscent of flowing water, will add grace and elegance to any bathroom. The smooth curve extending from the base to the handle lever mimics the contour of a leaf, bringing together basic elements of nature. This inspired faucet collection delivers beauty and function, and is sure to bring calm and harmony to any setting.

  • Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
  • Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
  • Includes valve and cartridge
  • Invigorating and pulsating spray applies direct pressure to help relieve tension
  • Rain spray provides more coverage and a soft, even flow for a relaxing shower experience
  • Invigorating spray helps relieve tension
  • 3-hole installation
  • Quick trim wall flange eliminates exposed screws and cuts installation time by 50%
  • Wipe Clean Nozzles allows you to wipe away mineral deposits with the swipe of a finger
  • Includes complete valve and trim
Specifications
GPM Flow Rate2.5
# of Handles1
Functions IncludedInvigorating Spray, Penetrating Massage, Rain Spray
Showerhead Diameter4.38
Tub/Shower Diverter TypePush/Pull

Sedona 1-Handle Tub & Shower Trim with Valve parts questions

What cartridge does the Pfister Sedona 1-Handle Tub & Shower Trim with Valve (808-LT0K) use?

Pfister's parts diagram for the 808-LT0K lists 971-023 (Tub Shower Trim Extension Stem for Quick Trims).

How many replacement parts are on the 808-LT0K diagram?

Pfister's parts diagram for the Sedona 1-Handle Tub & Shower Trim with Valve shows 10 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.

Which model numbers are covered on this page?

808-LT0K, 808-LT0Y. The letters at the end of a Pfister model number are the finish.
