Pfister · Tub & Shower / Shower Trim

Bronson Valve Only Trim Kit parts

10 part numbers on Pfister’s parts diagram. 9 in our catalog, the rest we order in.

Model numbers: 0X8-310A 0X8-340A974-3210R89-1BSC R89-1BSK R89-1BSY VB8-310A VB8-340A

Open the diagram Shop this faucet Pfister’s PDF

Dripping or hard to turn? The usual fix on this model is the .

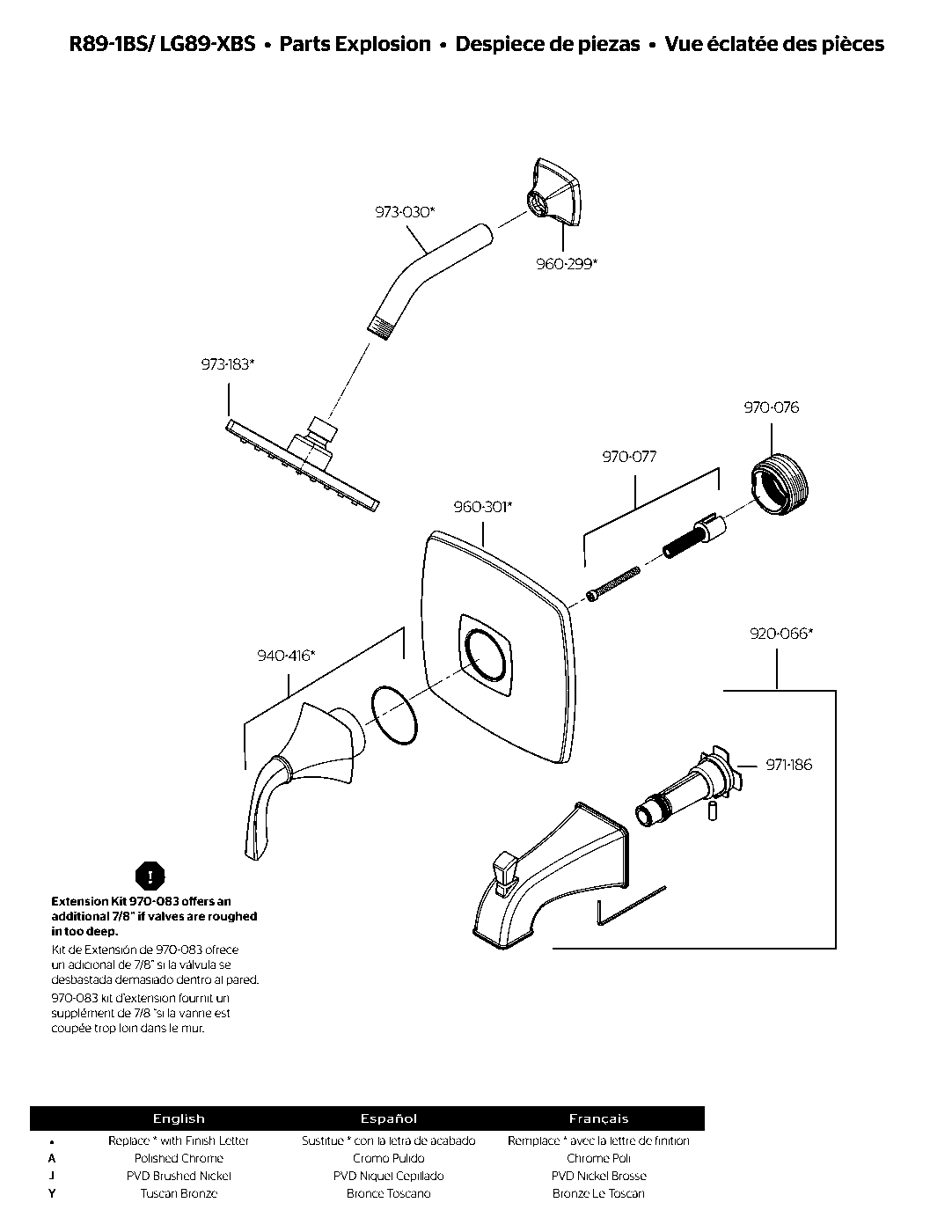

Bronson Valve Only Trim Kit exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Bronson Valve Only Trim Kit exploded parts diagram

960-299

Shw Arm Flg G89 Bs Bs

Verified fit On Pfister’s Bronson Valve Only Trim Kit parts diagram

$21.25

Bronson Valve Only Trim Kit parts list

973-03011 finishes
Shower arm
Verified fit On Pfister’s parts diagram for this model
$28.90
960-2996 finishes
Shw Arm Flg G89 Bs Bs
Verified fit On Pfister’s parts diagram for this model
$21.25
973-183
Pfister part 973-183
Verified fit On Pfister’s parts diagram for this model
Request this part
970-076
Securepfit Metal Adapter Nut
Verified fit On Pfister’s parts diagram for this model
$19.55
970-077
Unfinished Securepfit Stem Adapter
Verified fit On Pfister’s parts diagram for this model
$36.55
960-3014 finishes
Bronson Wall Flg W/gskt G89 Bs
Verified fit On Pfister’s parts diagram for this model
$77.35
920-0664 finishes
Quick connect tub spout
Verified fit On Pfister’s parts diagram for this model
$108.80
940-4163 finishes
Bronson Hdl W/wshr G89 Bs
Verified fit On Pfister’s parts diagram for this model
$62.90
971-186
Tub Spt Q/c Adpt C Adpt
Verified fit On Pfister’s parts diagram for this model
$9.35
970-083
Securepfit Trim Extension Kit
Verified fit On Pfister’s parts diagram for this model
$78.20

About the Pfister Bronson Valve Only Trim Kit

Stay current with transitional design trends while making a statement all your own. The Bronson collection showcases both square angles and graceful curves that rightfully stand out as singular eye-catching elements, yet work together to create a cohesive whole.

Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
Valve body sold separately
1-hole installation
All Metal Construction
SecurePfit®
Eliminates handle wobble
Installs wall flange securely, resulting in a clean, flush look
Handle installs directly on to the valve, resulting in significant structural rigidity
Easy toolless installation - no exposed screws

Specifications
# of Handles	1

Bronson Valve Only Trim Kit parts questions

What cartridge does the Pfister Bronson Valve Only Trim Kit (0X8-310A) use?

Pfister's parts diagram for the 0X8-310A lists 970-077 (Unfinished Securepfit Stem Adapter).

How many replacement parts are on the 0X8-310A diagram?

Pfister's parts diagram for the Bronson Valve Only Trim Kit shows 10 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.

Which model numbers are covered on this page?

0X8-310A, 0X8-340A, 974-3210, R89-1BSC, R89-1BSK, R89-1BSY, VB8-310A, VB8-340A. The letters at the end of a Pfister model number are the finish.
