Iyla Diverter Trim parts diagram
Pfister · Tub & Shower / Shower Trim

Iyla Diverter Trim parts

5 part numbers on Pfister’s parts diagram. 4 in our catalog, the rest we order in.

Model numbers: 016-TR1D016-TR1K016-TR1Y

Open the diagramPfister’s PDF

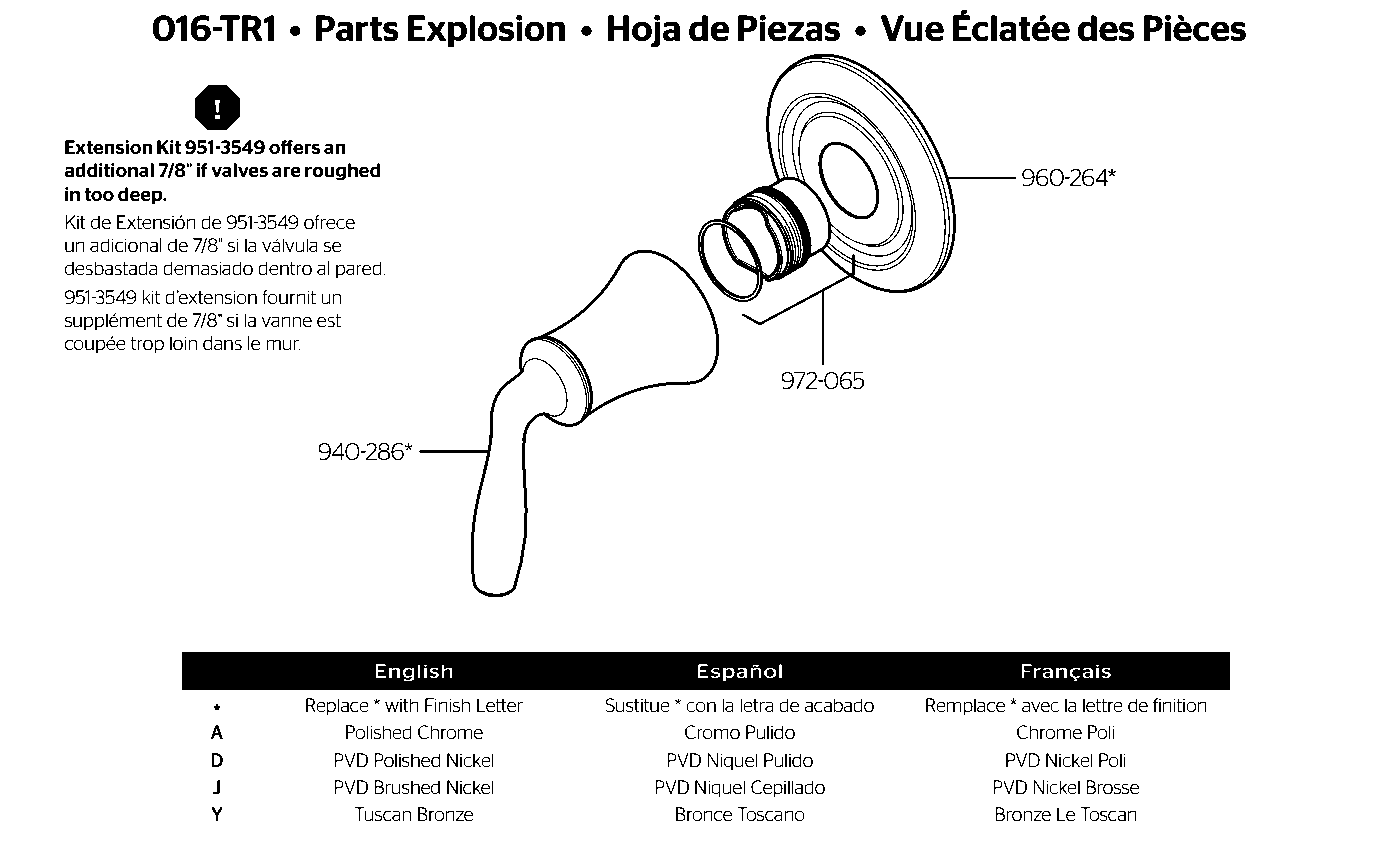

Iyla Diverter Trim exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Iyla Diverter Trim exploded parts diagram

960-264

Flg 016 Iy

Verified fit On Pfister’s Iyla Diverter Trim parts diagram

$20.40

Iyla Diverter Trim parts list

About the Pfister Iyla Diverter Trim

In Gaelic, Iyla means island. The soft curves of the collection could be installed on any island in the world or in any mainland water lover’s bathroom, for that matter. This collection grew from the soft wave shape you see wrap its way around the spouts of this collection. Feel the tranquility of ocean living no matter where you are.

  • Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
  • 0153WDNS or 0156WDS Valve required, order separately
  • 5-Function Showerhead
  • SecurePfit®
  • Wipe Clean Nozzles

Iyla Diverter Trim parts questions

What cartridge does the Pfister Iyla Diverter Trim (016-TR1D) use?

Pfister's parts diagram for the 016-TR1D does not list a separate cartridge. The valve may be sold separately; check the valve model on the diagram or ask our counter.

How many replacement parts are on the 016-TR1D diagram?

Pfister's parts diagram for the Iyla Diverter Trim shows 5 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.

Which model numbers are covered on this page?

016-TR1D, 016-TR1K, 016-TR1Y. The letters at the end of a Pfister model number are the finish.
