Tisbury Diverter Trim parts diagram
Pfister · Tub & Shower / Shower Trim

Tisbury Diverter Trim parts

6 part numbers on Pfister’s parts diagram. 5 in our catalog, the rest we order in.

Model numbers: 016-TB0SCBG016-TB0SCC016-TB0SCD016-TB0SCK016-TB0SCSDB

Open the diagramPfister’s PDF

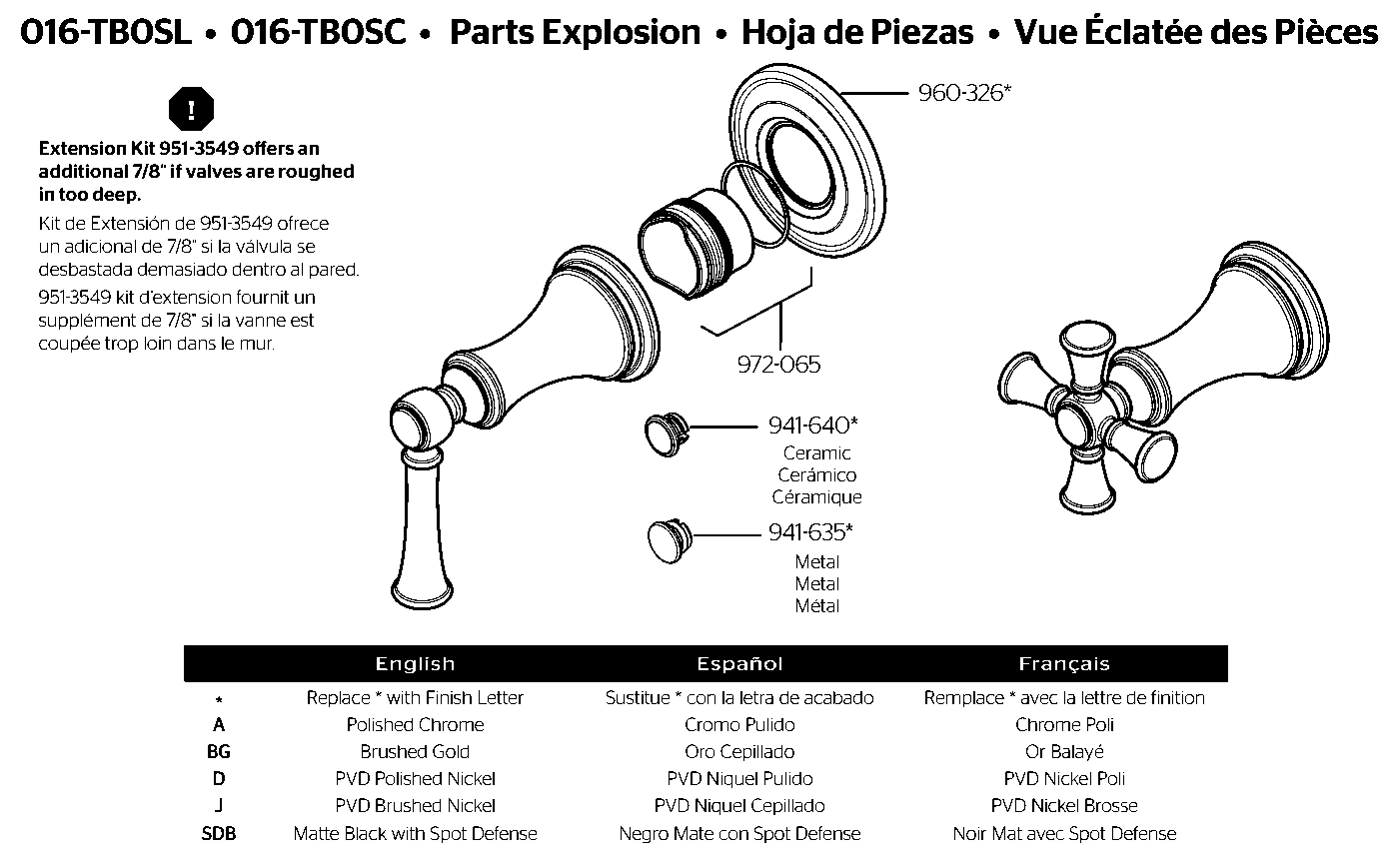

Tisbury Diverter Trim exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Tisbury Diverter Trim exploded parts diagram

941-640

Tisbury Crmc Cap Kit Ts

Verified fit On Pfister’s Tisbury Diverter Trim parts diagram

$11.90

Tisbury Diverter Trim parts list

About the Pfister Tisbury Diverter Trim

  • Featuring SecurePfit™, fixed hub handle threads directly to the valve cartridge providing a more seamless design to the flange and eliminating any potential wobble.
  • Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
  • 0153WDNS or 0156WDS Valve required, order separately
  • All Metal Construction
  • SecurePfit®

Tisbury Diverter Trim parts questions

What cartridge does the Pfister Tisbury Diverter Trim (016-TB0SCBG) use?

Pfister's parts diagram for the 016-TB0SCBG does not list a separate cartridge. The valve may be sold separately; check the valve model on the diagram or ask our counter.

How many replacement parts are on the 016-TB0SCBG diagram?

Pfister's parts diagram for the Tisbury Diverter Trim shows 6 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.

Which model numbers are covered on this page?

016-TB0SCBG, 016-TB0SCC, 016-TB0SCD, 016-TB0SCK, 016-TB0SCSDB. The letters at the end of a Pfister model number are the finish.
