Pfister Diverter Trim parts diagram
Pfister · Tub & Shower / Shower Trim

Pfister Diverter Trim parts

5 part numbers on Pfister’s parts diagram. 3 in our catalog, the rest we order in.

Model numbers: 016-DT1K016-DT1U016-DT1V016-DT1Y

Open the diagramPfister’s PDF

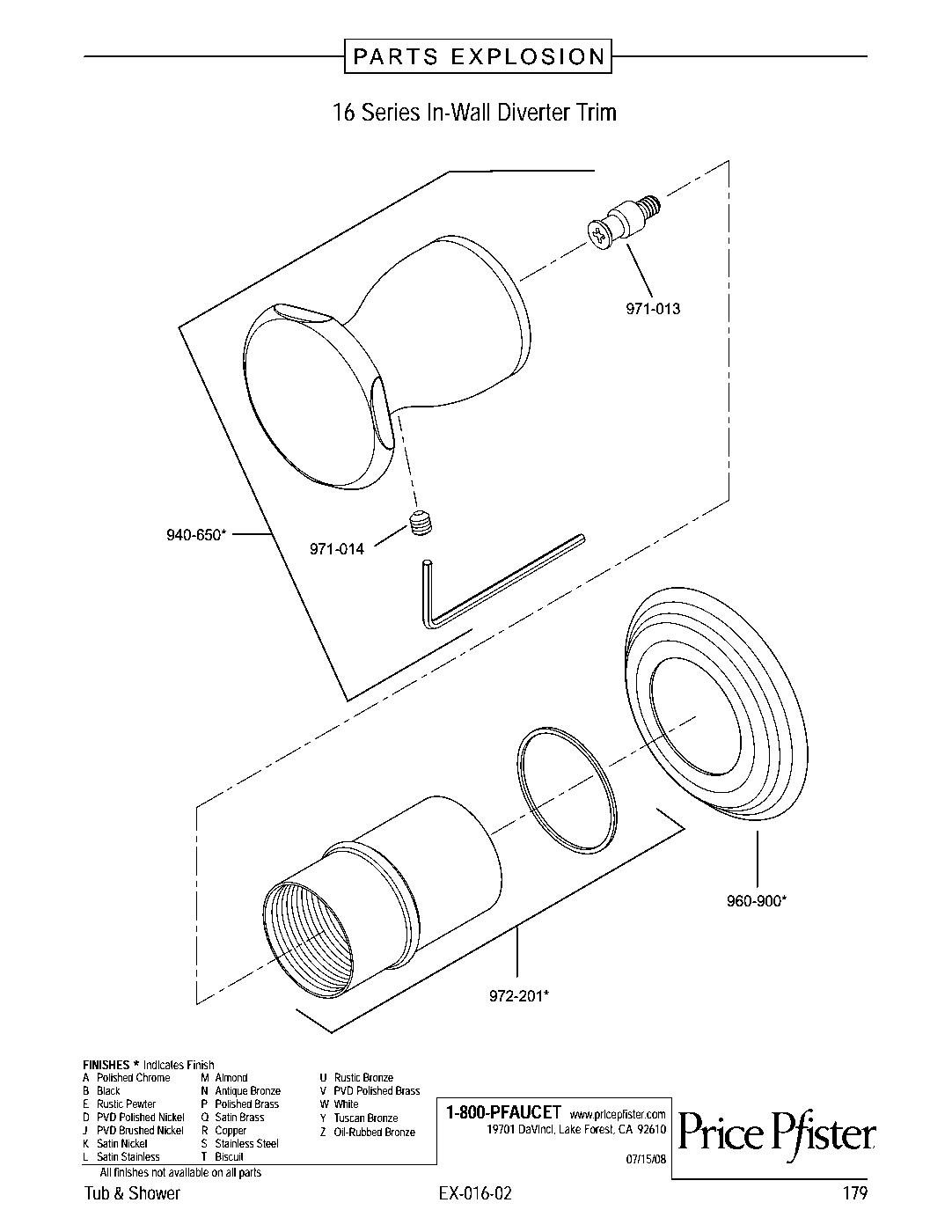

Pfister Diverter Trim exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Pfister Diverter Trim exploded parts diagram

Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.

Pfister Diverter Trim parts list

About the Pfister Pfister Diverter Trim

With over 100 years of experience creating high quality faucets and accessories that deliver exceptional value, style and innovation, Pfister is a trusted name and a leader in the plumbing industry. It’s the experience that matters. Yours and ours.

  • 0153WDNS or 0156WDS Valve required, order separately

Pfister Diverter Trim parts questions

What cartridge does the Pfister Pfister Diverter Trim (016-DT1K) use?

Pfister's parts diagram for the 016-DT1K lists 971-013 (Stem Extension), 972-201 (Multi-Handle Tub Shower Valve Sleeve).

How many replacement parts are on the 016-DT1K diagram?

Pfister's parts diagram for the Pfister Diverter Trim shows 5 part numbers, including handles, trim and hardware. Tap any part on our interactive diagram to see price and finish.

Which model numbers are covered on this page?

016-DT1K, 016-DT1U, 016-DT1V, 016-DT1Y. The letters at the end of a Pfister model number are the finish.
