Pfister Pfister Non-Shared 3-Way Diverter Valve
Pfister · Tub & Shower / Shower Trim

Avalon Diverter Trim parts

5 part numbers on Pfister’s parts diagram. 4 in our catalog, the rest we order in.

Model numbers: 015-3WDNS015-6WDS016-CB1C016-CB1K016-CB1Y

Open the diagramShop this faucetPfister’s PDF

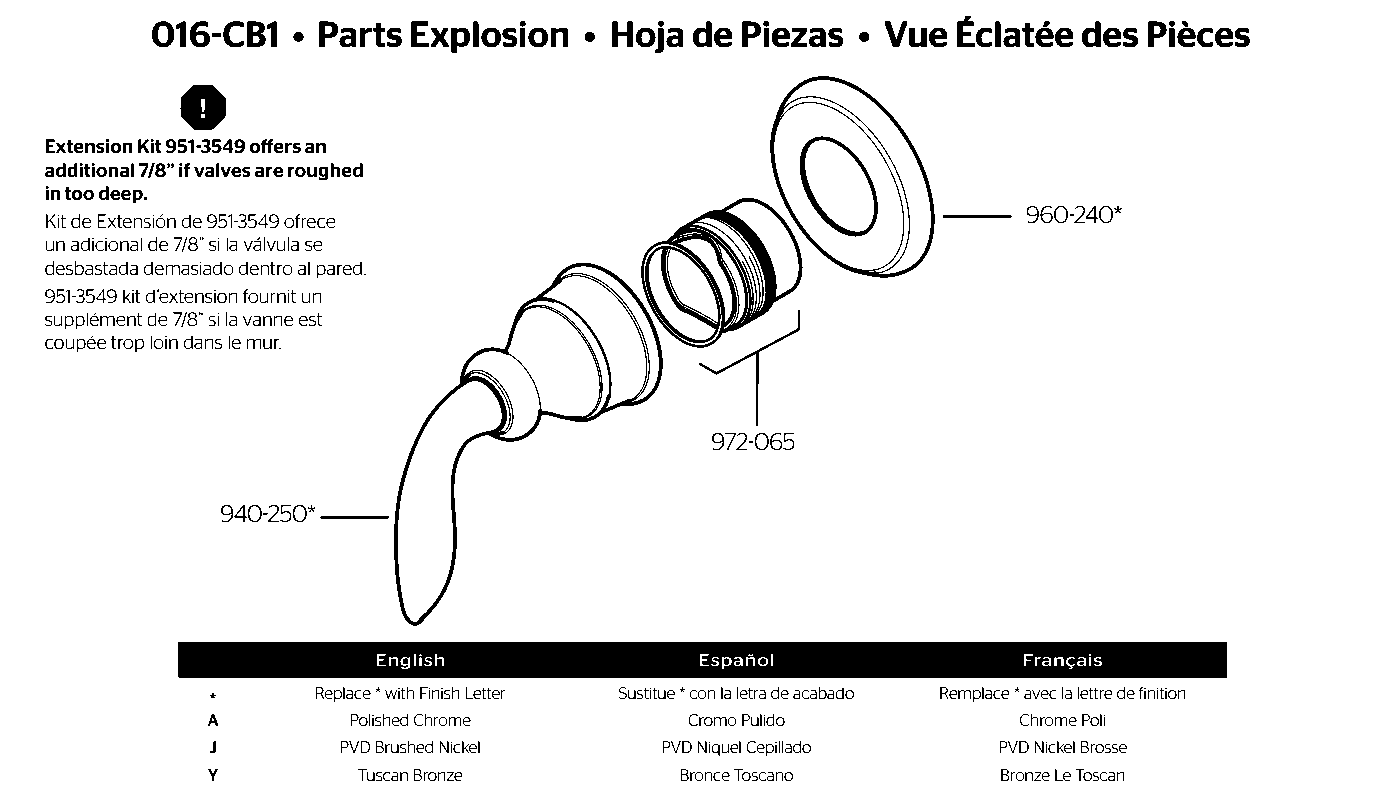

Avalon Diverter Trim exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Avalon Diverter Trim exploded parts diagram

960-240

Avalon In-wall Dvtr Flg Rnd

Verified fit On Pfister’s Avalon Diverter Trim parts diagram

$14.45

Avalon Diverter Trim parts list

About the Pfister Avalon Diverter Trim

Time-honored qualities such as elegance, tradition, and symmetry are gracefully reflected in the Avalon collection. With smooth and sleek curves reminiscent of a seaside escape, it's no wonder Avalon makes it easy to coordinate the look of your entire home.

  • Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
  • Feauring SecurePfit™, fixed hub handle threads directly to the valve cartridge providing a more seamless design to the flange and eliminating any potential wobble.
  • 0153WDNS or 0156WDS Valve required, order separately
  • SecurePfit®
  • Eliminates handle wobble
  • Installs wall flange securely, resulting in a clean, flush look
  • Handle installs directly on to the valve, resulting in significant structural rigidity
  • Easy toolless installation - no exposed screws

Avalon Diverter Trim parts questions

What cartridge does the Pfister Avalon Diverter Trim (015-3WDNS) use?

Pfister's parts diagram for the 015-3WDNS does not list a separate cartridge. The valve may be sold separately; check the valve model on the diagram or ask our counter.

How many replacement parts are on the 015-3WDNS diagram?

Pfister's parts diagram for the Avalon Diverter Trim shows 5 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.

Which model numbers are covered on this page?

015-3WDNS, 015-6WDS, 016-CB1C, 016-CB1K, 016-CB1Y. The letters at the end of a Pfister model number are the finish.
