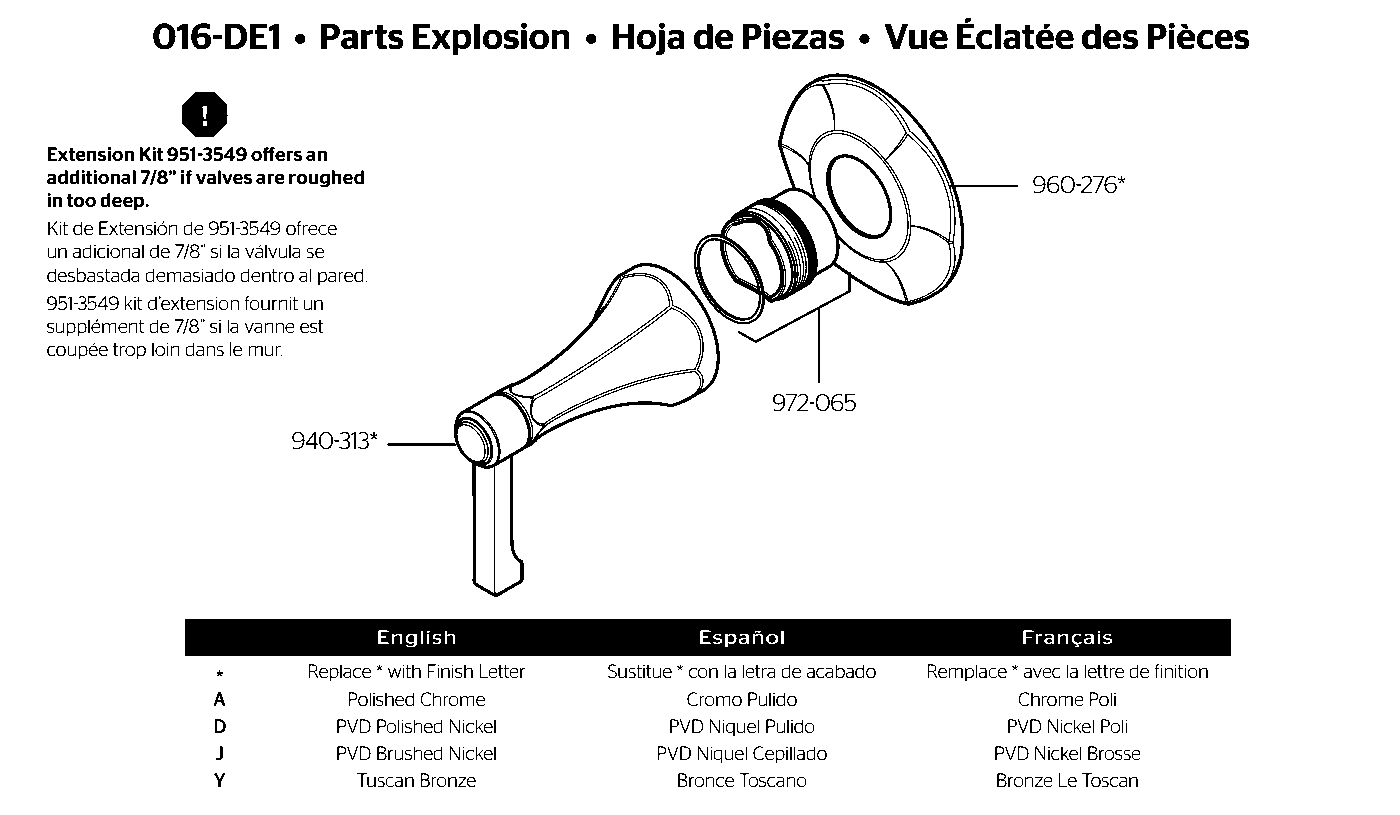

Arterra Diverter Trim exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Arterra Diverter Trim parts list
Verified fit On Pfister’s parts diagram for this model
Dvtr 015-3wdns Ext Kit Ext Kit
Verified fit On Pfister’s parts diagram for this model
$95.20Verified fit On Pfister’s parts diagram for this model
Verified fit On Pfister’s parts diagram for this model
$11.05Verified fit On Pfister’s parts diagram for this model
About the Pfister Arterra Diverter Trim
The Arterra collection features classic lines without being too ornate. This family was designed to subtly modernize the look of a more traditional bathroom while adding a classic twist to a more contemporary one. This allows the family to fit both traditional and contemporary styled interiors. The sharp refined lines of the Arterra family provide a traditional yet timeless look to complement your
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- 0153WDNS or 0156WDS Valve required, order separately
- 5-Function Showerhead
- Eliminates handle wobble
- Installs wall flange securely, resulting in a clean, flush look
- Handle installs directly on to the valve, resulting in significant structural rigidity
- Easy toolless installation - no exposed screws
Arterra Diverter Trim parts questions
What cartridge does the Pfister Arterra Diverter Trim (015-3WDNS) use?
Pfister's parts diagram for the 015-3WDNS does not list a separate cartridge. The valve may be sold separately; check the valve model on the diagram or ask our counter.
How many replacement parts are on the 015-3WDNS diagram?
Pfister's parts diagram for the Arterra Diverter Trim shows 5 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.
Which model numbers are covered on this page?
015-3WDNS, 015-6WDS, 016-DE1C, 016-DE1D, 016-DE1K, 016-DE1Y. The letters at the end of a Pfister model number are the finish.
