Pfister Diverter Valve parts diagram
Pfister · Valves

Pfister Diverter Valve parts

4 part numbers on Pfister’s parts diagram. 1 in our catalog, the rest we order in.

Model numbers: 015-2WDX015-3WDX

Open the diagramPfister’s PDF

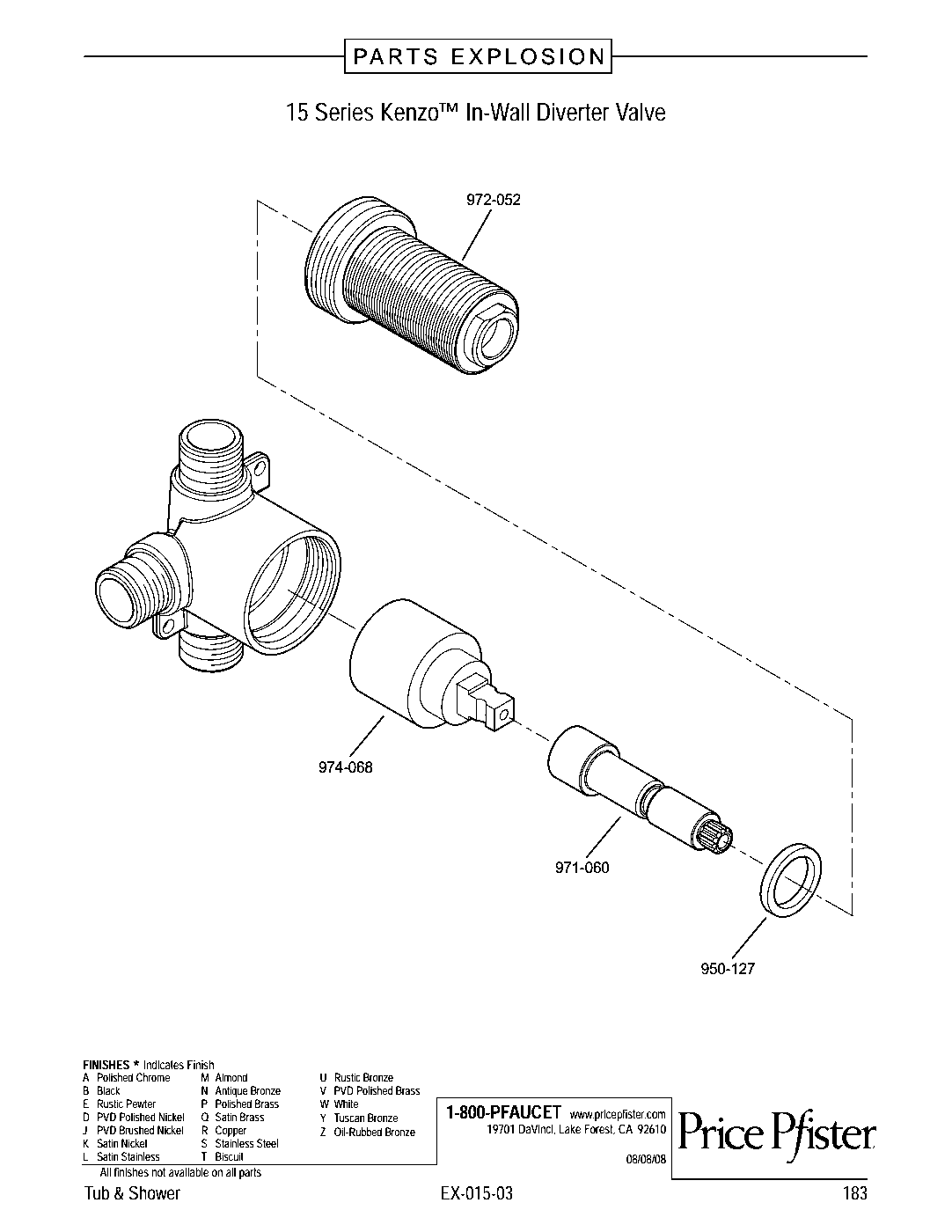

Pfister Diverter Valve exploded diagram

Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.

Pfister Diverter Valve exploded parts diagram

Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.

Pfister Diverter Valve parts list

About the Pfister Pfister Diverter Valve

With over 100 years of experience creating high quality faucets and accessories that deliver exceptional value, style and innovation, Pfister is a trusted name and a leader in the plumbing industry. It’s the experience that matters. Yours and ours.

  • Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
  • 1-hole installation
  • Advanced Install
  • All Metal Construction
  • Ultra-Seal

Pfister Diverter Valve parts questions

What cartridge does the Pfister Pfister Diverter Valve (015-2WDX) use?

Pfister's parts diagram for the 015-2WDX does not list a separate cartridge. The valve may be sold separately; check the valve model on the diagram or ask our counter.

How many replacement parts are on the 015-2WDX diagram?

Pfister's parts diagram for the Pfister Diverter Valve shows 4 part numbers, including trim and hardware. Tap any part on our interactive diagram to see price and finish.

Which model numbers are covered on this page?

015-2WDX, 015-3WDX. The letters at the end of a Pfister model number are the finish.
