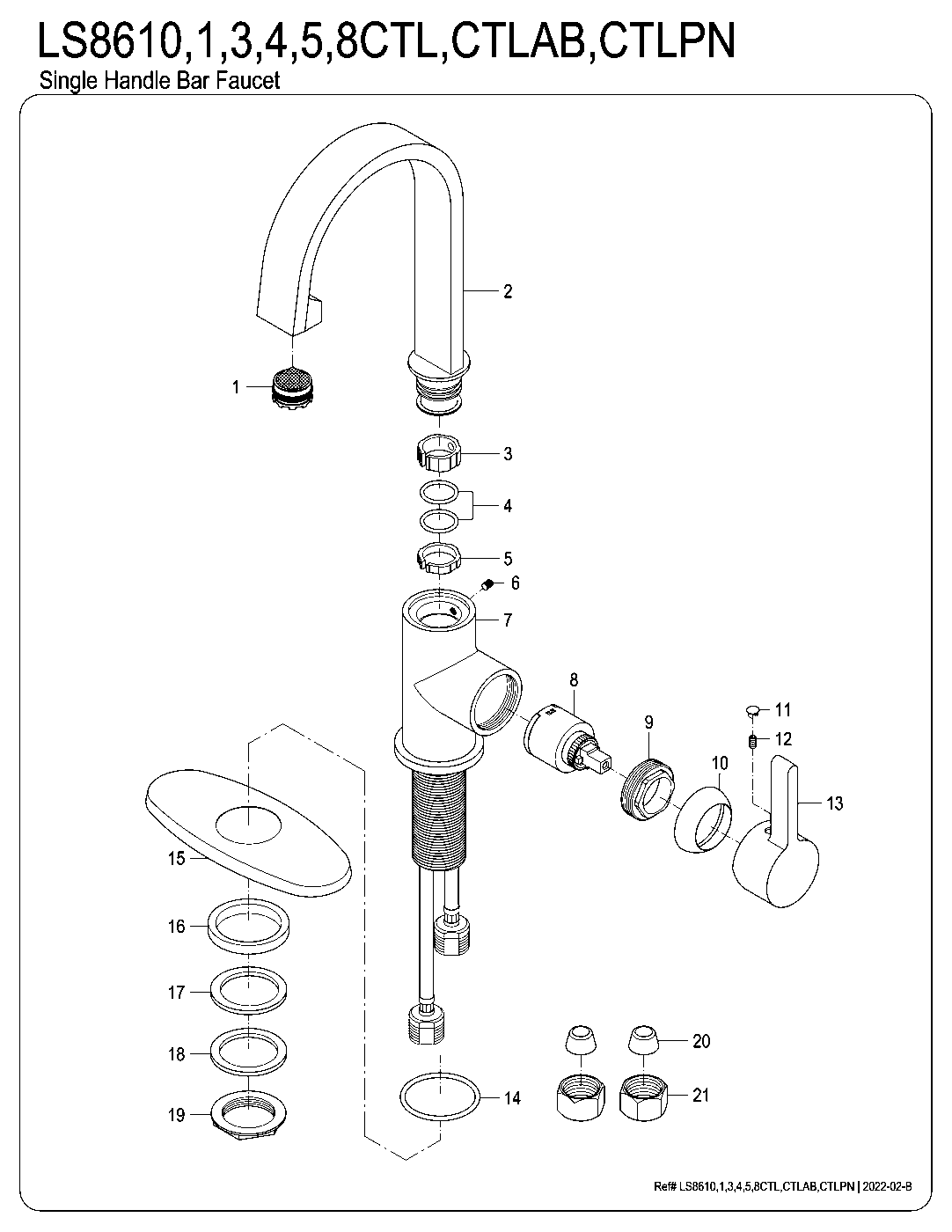

Kingston Brass LS8610CTL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramKingston Brass LS8610CTL parts questions
Which Kingston Brass models does this Kingston Brass parts diagram cover?
LS8610CTL, LS8611CTL, LS8613CTL, LS8615CTL, LS8618CTL. They are the same continental single-handle bar faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass LS8610CTL come in?
Matte Black (LS8610CTL), Polished Chrome (LS8611CTL), Brushed Brass (LS8613CTL), Oil Rubbed Bronze (LS8615CTL), Brushed Nickel (LS8618CTL).
What replacement handles fit the LS8610CTL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the LS861xCTL diagram?
Kingston numbers the parts on this diagram (18 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Kingston Brass LS861xCTL in every finish
Kingston Brass LS8610CTL Continental Single-Handle Bar Faucet, Matte Black$318.47Matte Black
Kingston Brass LS8611CTL Continental Single-Handle Bar Faucet, Polished Chrome$211.22Polished Chrome
Kingston Brass LS8613CTL Continental Single-Handle Bar Faucet, Brushed Brass$318.47Brushed Brass
Kingston Brass LS8615CTL Continental Single-Handle Bar Faucet, Oil Rubbed Bronze$292.47Oil Rubbed Bronze
Kingston Brass LS8618CTL Continental Single-Handle Bar Faucet, Brushed Nickel$292.47Brushed Nickel
