Kingston Brass Concord LS8570DLBS parts
Single-Handle Deck Mount Kitchen Faucet with Side Sprayer. One parts diagram covers all 3 finishes of this model.
Model numbers: LS8570DLBSLS8571DLBSLS8578DLBS

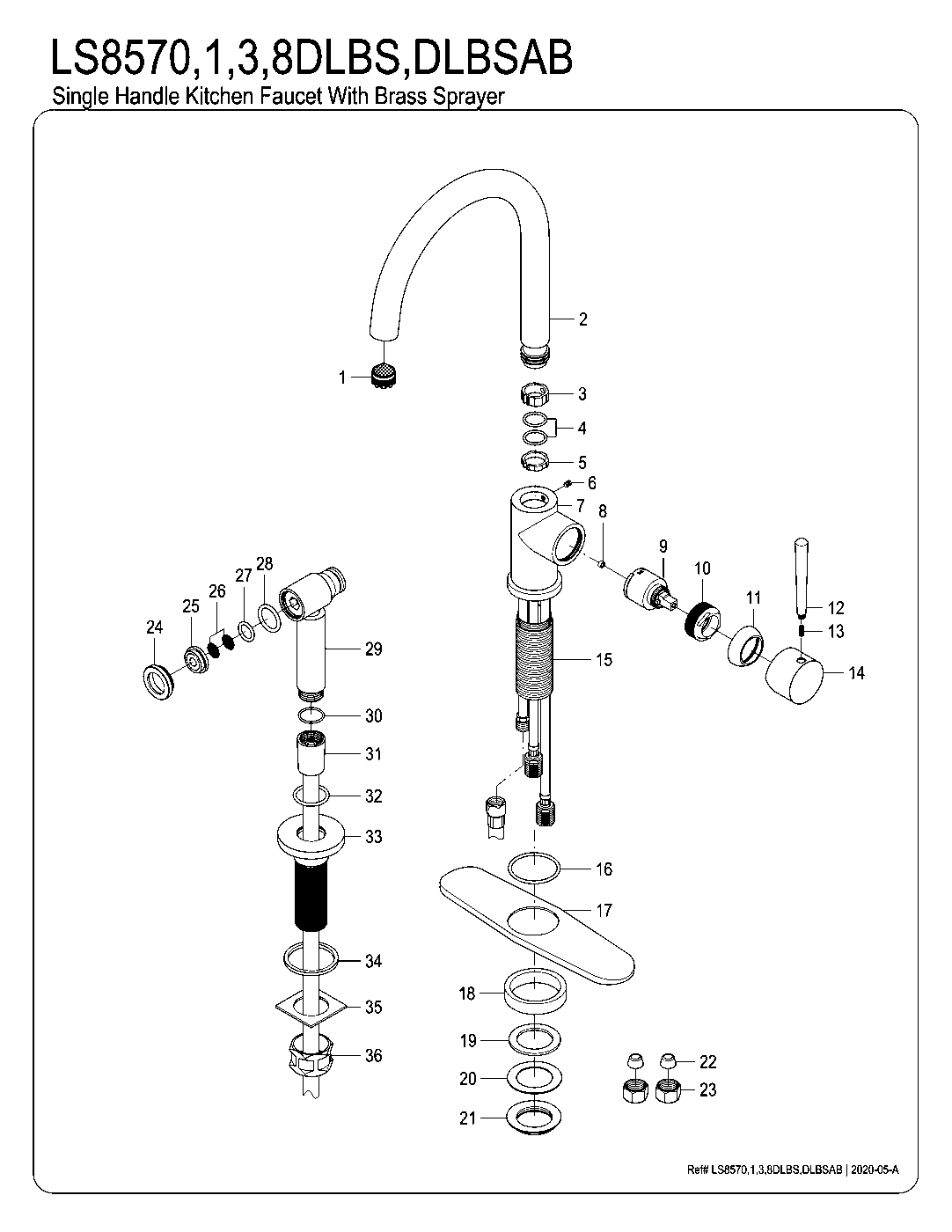

Concord LS8570DLBS exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramConcord LS8570DLBS parts questions
Which Kingston Brass models does this Concord parts diagram cover?
LS8570DLBS, LS8571DLBS, LS8578DLBS. They are the same single-handle deck mount kitchen faucet with side sprayer in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass LS8570DLBS come in?
Matte Black (LS8570DLBS), Polished Chrome (LS8571DLBS), Brushed Nickel (LS8578DLBS).
What replacement handles fit the LS8570DLBS?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the LS857xDLBS diagram?
Kingston numbers the parts on this diagram (34 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Concord LS857xDLBS in every finish
Concord LS8570DLBS Single-Handle Deck Mount Kitchen Faucet with Side Sprayer, Matte Black$445.22Matte Black
Concord LS8571DLBS Single-Handle Deck Mount Kitchen Faucet with Side Sprayer, Polished Chrome$334.72Polished Chrome
Concord LS8578DLBS Single-Handle Deck Mount Kitchen Faucet with Side Sprayer, Brushed Nickel$376.97Brushed Nickel
