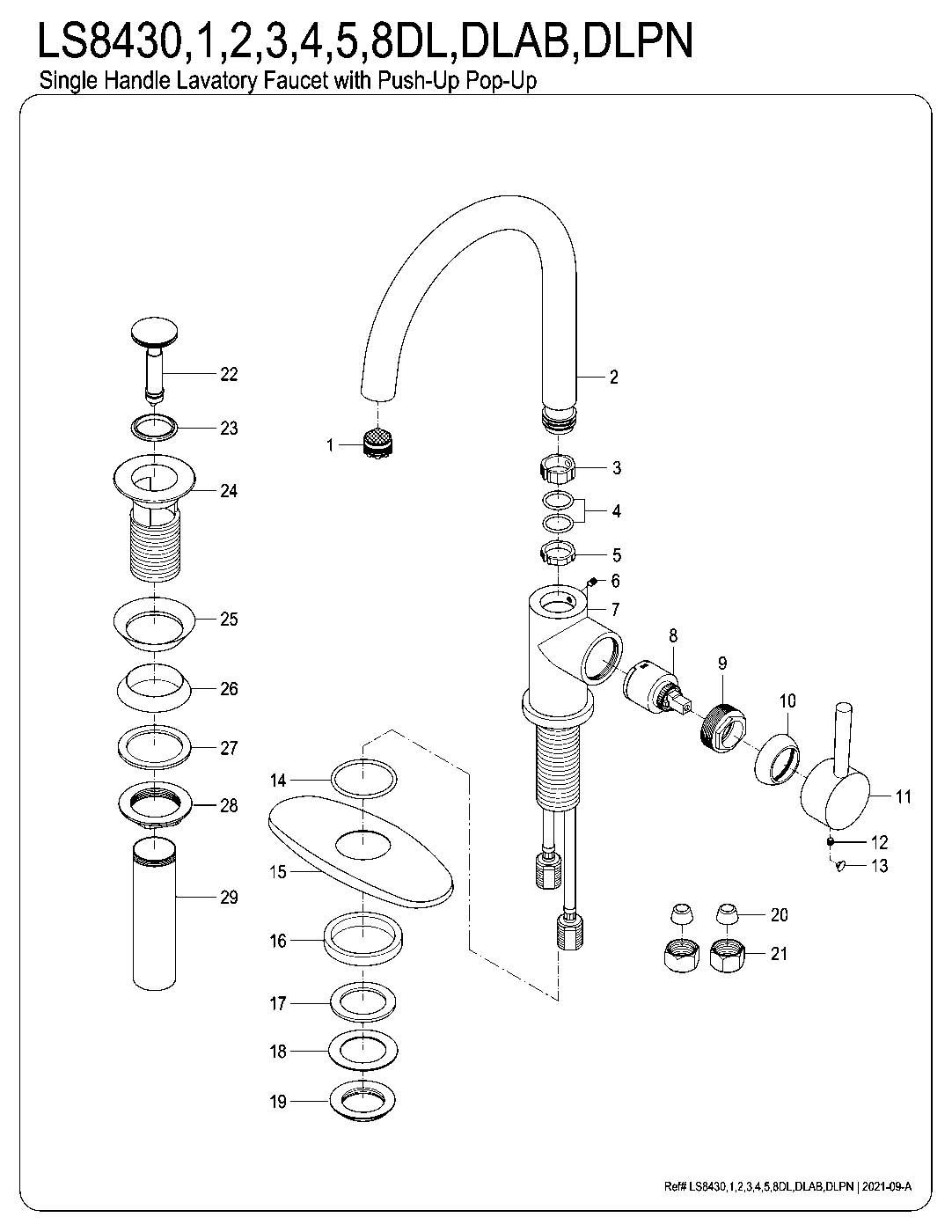

Fauceture LS8430DL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramFauceture LS8430DL parts questions
Which Kingston Brass models does this Fauceture parts diagram cover?
LS8430DL, LS8431DL, LS8432DL, LS8433DL, LS8435DL, LS8438DL. They are the same concord single-handle bathroom faucet with push pop-up in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass LS8430DL come in?
Matte Black (LS8430DL), Polished Chrome (LS8431DL), Polished Brass (LS8432DL), Brushed Brass (LS8433DL), Oil Rubbed Bronze (LS8435DL), Brushed Nickel (LS8438DL).
What replacement handles fit the LS8430DL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the LS843xDL diagram?
Kingston numbers the parts on this diagram (28 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Fauceture LS843xDL in every finish
Fauceture LS8430DL Concord Single-Handle Bathroom Faucet with Push Pop-Up, Matte Black$282.72Matte Black
Fauceture LS8431DL Concord Single-Handle Bathroom Faucet with Push Pop-Up, Polished Chrome$188.47Polished Chrome
Concord LS8432DL Single-Handle 1-Hole Deck Mount Bathroom Faucet with Push Pop-Up, Polished Brass$282.72Polished Brass
Fauceture LS8433DL Concord Single-Handle Bathroom Faucet with Push Pop-Up, Brushed Brass$282.72Brushed Brass
Concord LS8435DL Single-Handle 1-Hole Deck Mount Bathroom Faucet with Push Pop-Up, Oil Rubbed Bronze$243.72Oil Rubbed Bronze
Fauceture LS8438DL Concord Single-Handle Bathroom Faucet with Push Pop-Up, Brushed Nickel$243.72Brushed Nickel
