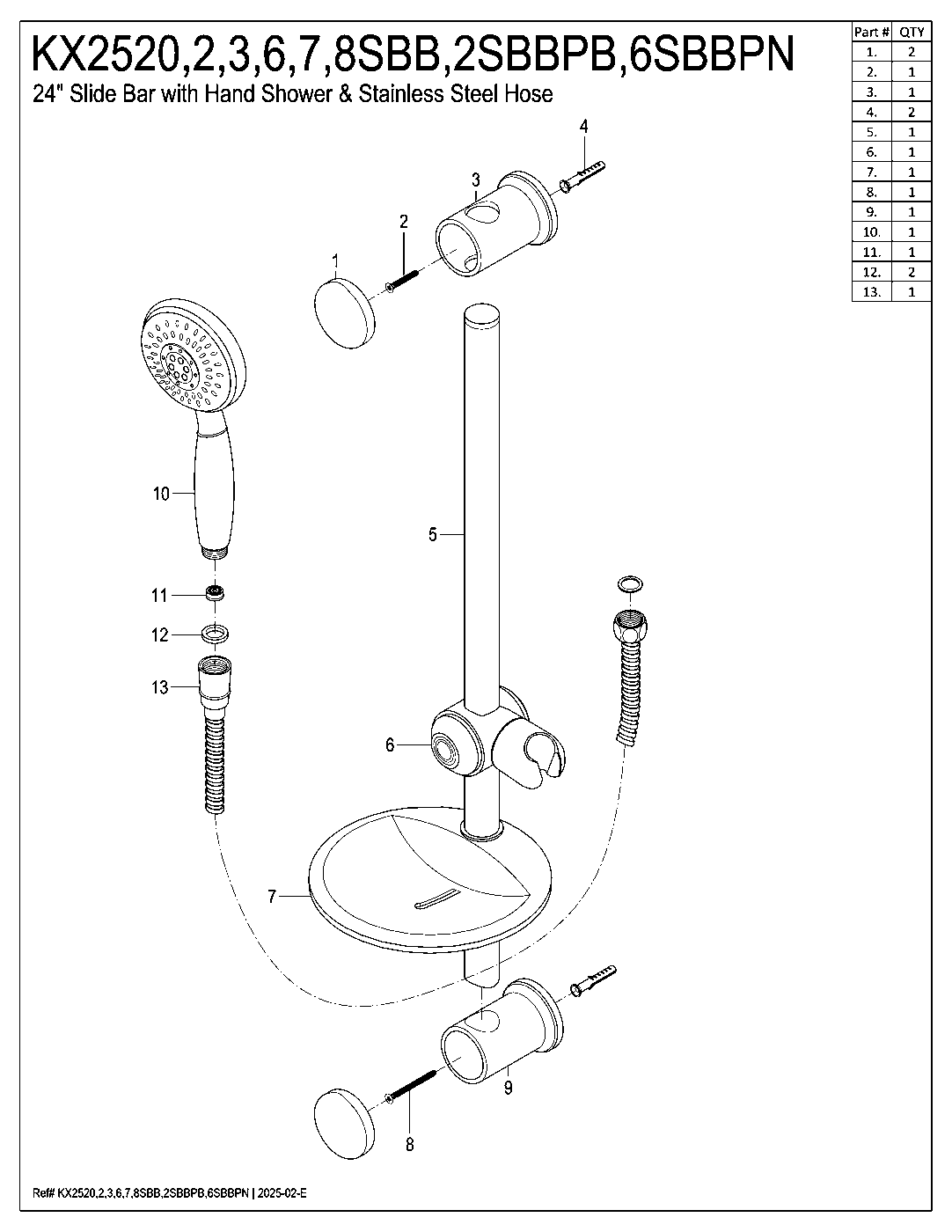

Shower Scape KX2520SBB exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramShower Scape KX2520SBB parts questions
Which Kingston Brass models does this Shower Scape parts diagram cover?
KX2520SBB, KX2522SBB, KX2526SBB, KX2527SBB, KX2528SBB. They are the same 5-function hand shower set with slide bar kit in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KX2520SBB come in?
Matte Black (KX2520SBB), Polished Chrome (KX2522SBB), Naples Bronze (KX2526SBB), Brushed Brass (KX2527SBB), Brushed Nickel (KX2528SBB).
What replacement handles fit the KX2520SBB?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KX252xSBB diagram?
Kingston numbers the parts on this diagram (10 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Shower Scape KX252xSBB in every finish
Shower Scape KX2520SBB 5-Function Hand Shower Set with Slide Bar Kit, Matte Black$198.22Matte Black
Shower Scape KX2522SBB 5-Function Hand Shower Set with Slide Bar Kit, Polished Chrome$84.47Polished Chrome
Shower Scape KX2526SBB 5-Function Hand Shower Set with Slide Bar Kit, Naples Bronze$133.22Naples Bronze
Shower Scape KX2527SBB 5-Function Hand Shower Set with Slide Bar Kit, Brushed Brass$198.22Brushed Brass
Shower Scape KX2528SBB 5-Function Hand Shower Set with Slide Bar Kit, Brushed Nickel$133.22Brushed Nickel
