Kingston Brass Vilbosch KX2520B parts
5-Function Hand Shower Set with Stainless Steel Hose. One parts diagram covers all 3 finishes of this model.

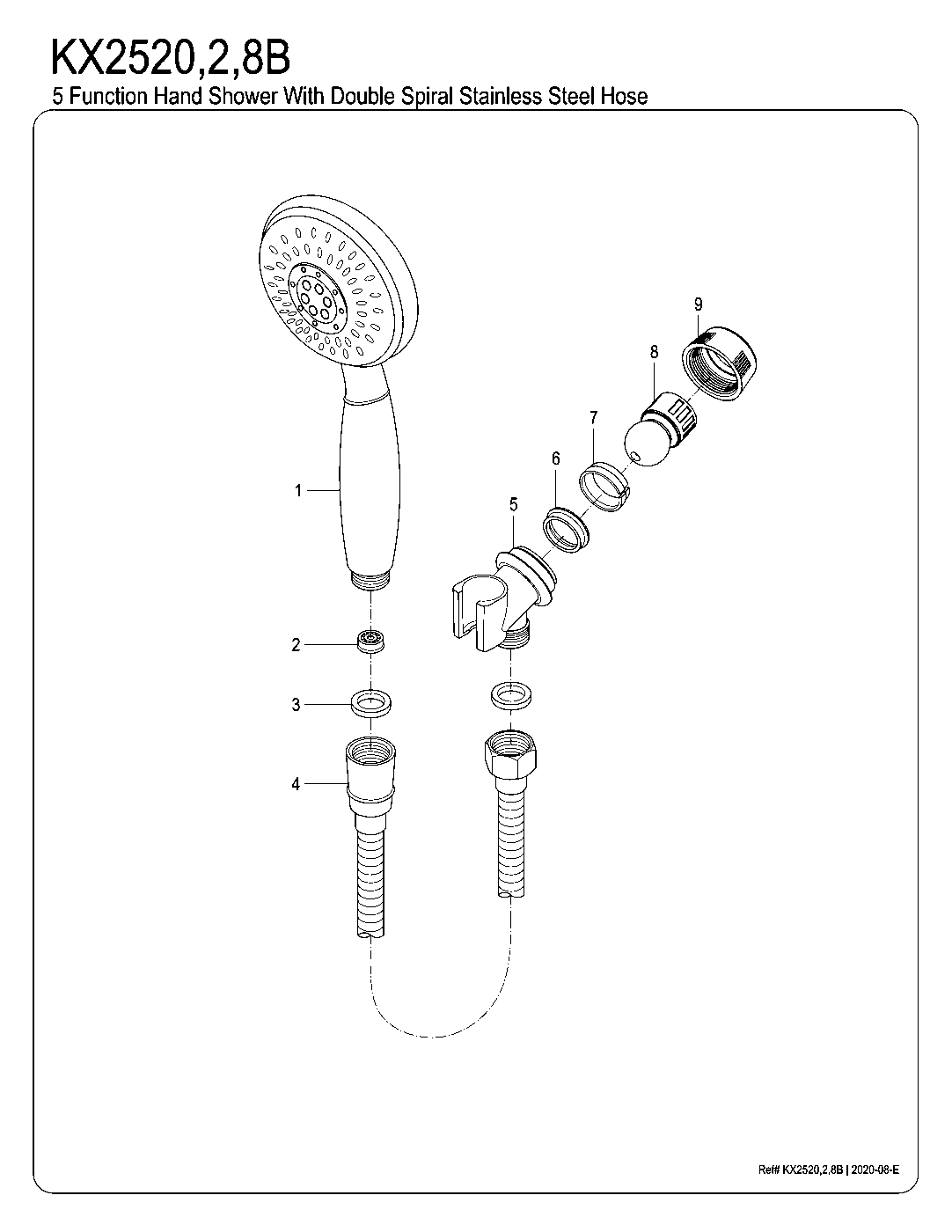

Vilbosch KX2520B exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramVilbosch KX2520B parts questions
Which Kingston Brass models does this Vilbosch parts diagram cover?
KX2520B, KX2522B, KX2528B. They are the same 5-function hand shower set with stainless steel hose in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KX2520B come in?
Matte Black (KX2520B), Polished Chrome (KX2522B), Brushed Nickel (KX2528B).
What replacement handles fit the KX2520B?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KX252xB diagram?
Kingston numbers the parts on this diagram (7 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Vilbosch KX252xB in every finish
Vilbosch KX2520B 5-Function Hand Shower Set with Stainless Steel Hose, Matte Black$90.97Matte Black
Vilbosch KX2522B 5-Function Hand Shower Set with Stainless Steel Hose, Polished Chrome$64.97Polished Chrome
Vilbosch KX2528B 5-Function Hand Shower Set with Stainless Steel Hose, Brushed Nickel$71.47Brushed Nickel
