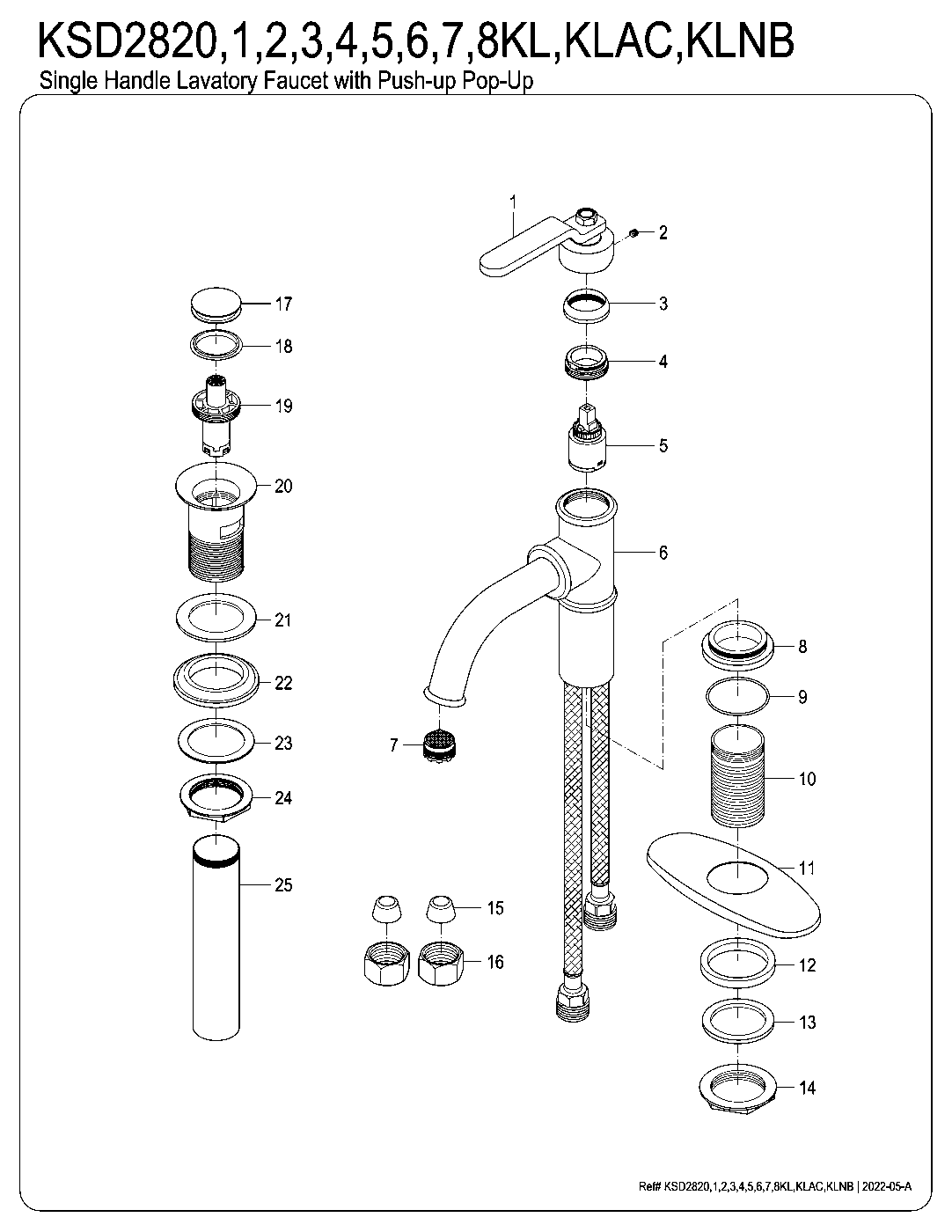

Whitaker KSD2820KL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramWhitaker KSD2820KL parts questions
Which Kingston Brass models does this Whitaker parts diagram cover?
KSD2820KL, KSD2821KL, KSD2822KL, KSD2823KL, KSD2824KL, KSD2826KL, KSD2827KL. They are the same single-handle 1-hole deck mount bathroom faucet with push pop-up and deck plate in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KSD2820KL come in?
Matte Black (KSD2820KL), Matte Black/Polished Chrome (KSD2821KL), Matte Black/Polished Brass (KSD2822KL), Matte Black/Antique Brass (KSD2823KL), Matte Black/Black Stainless (KSD2824KL), Matte Black/Polished Nickel (KSD2826KL), Matte Black/Rose Gold (KSD2827KL).
What replacement handles fit the KSD2820KL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KSD282xKL diagram?
Kingston numbers the parts on this diagram (20 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Whitaker KSD282xKL in every finish
Whitaker KSD2820KL Single-Handle 1-Hole Deck Mount Bathroom Faucet with Push Pop-Up and Deck Plate, Matte Black$389.97Matte Black
Whitaker KSD2821KL Single-Handle 1-Hole Deck Mount Bathroom Faucet with Push Pop-Up and Deck Plate, Matte Black/Polished Chrome$389.97Matte Black/Polished Chrome
Whitaker KSD2822KL Single-Handle 1-Hole Deck Mount Bathroom Faucet with Push Pop-Up and Deck Plate, Matte Black/Polished Brass$389.97Matte Black/Polished Brass
Whitaker KSD2823KL Single-Handle 1-Hole Deck Mount Bathroom Faucet with Push Pop-Up and Deck Plate, Matte Black/Antique Brass$389.97Matte Black/Antique Brass
Whitaker KSD2824KL Single-Handle 1-Hole Deck Mount Bathroom Faucet with Push Pop-Up and Deck Plate, Matte Black/Black Stainless$389.97Matte Black/Black Stainless
Whitaker KSD2826KL Single-Handle 1-Hole Deck Mount Bathroom Faucet with Push Pop-Up and Deck Plate, Matte Black/Polished Nickel$389.97Matte Black/Polished Nickel
Whitaker KSD2827KL Single-Handle 1-Hole Deck Mount Bathroom Faucet with Push Pop-Up and Deck Plate, Matte Black/Rose Gold$432.22Matte Black/Rose Gold
