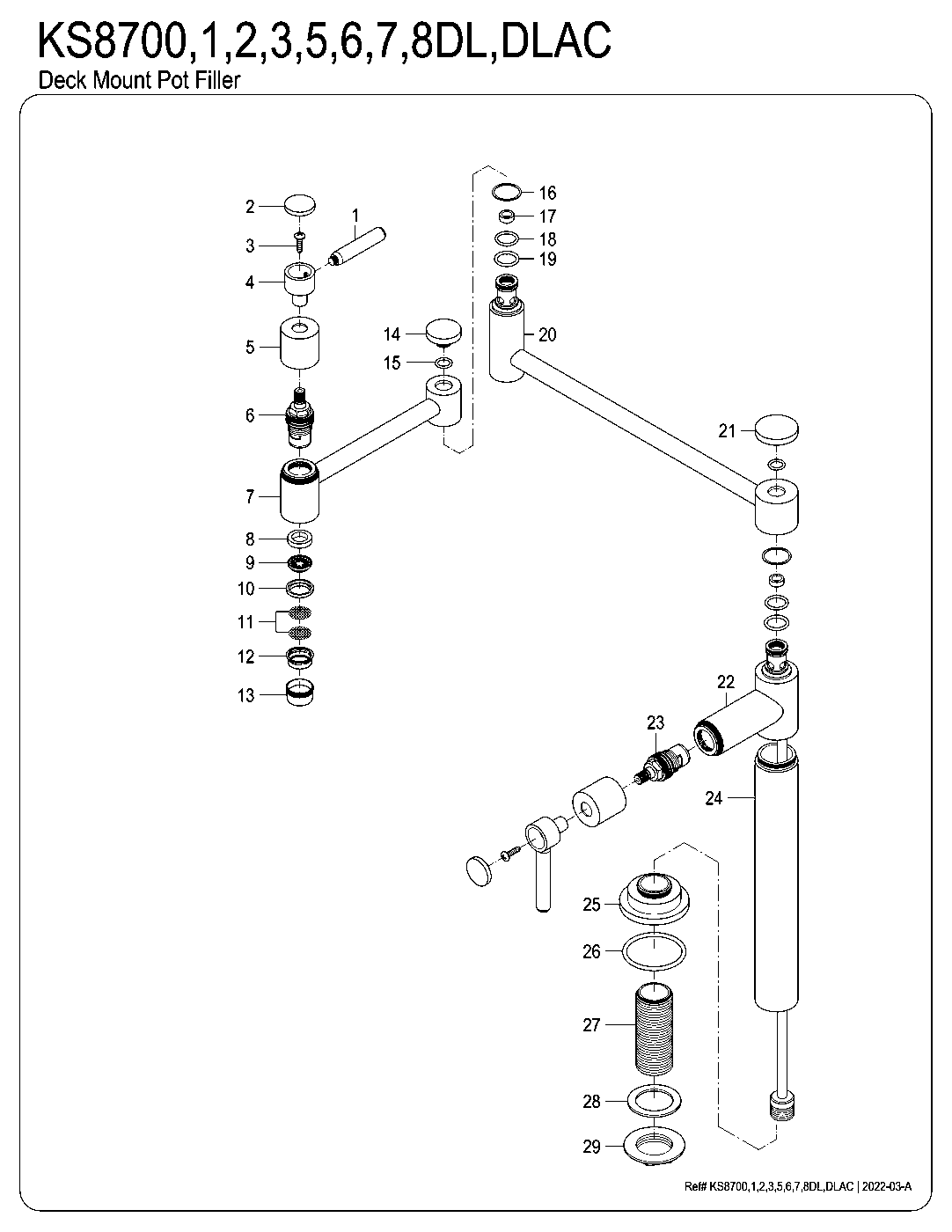

Concord KS8700DL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramConcord KS8700DL parts questions
Which Kingston Brass models does this Concord parts diagram cover?
KS8700DL, KS8701DL, KS8705DL, KS8706DL, KS8707DL, KS8708DL. They are the same two-handle 1-hole deck mount pot filler in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS8700DL come in?
Matte Black (KS8700DL), Polished Chrome (KS8701DL), Oil Rubbed Bronze (KS8705DL), Polished Nickel (KS8706DL), Brushed Brass (KS8707DL), Brushed Nickel (KS8708DL).
What replacement handles fit the KS8700DL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS870xDL diagram?
Kingston numbers the parts on this diagram (23 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Concord KS870xDL in every finish
Concord KS8700DL Two-Handle 1-Hole Deck Mount Pot Filler, Matte Black$649.97Matte Black
Concord KS8701DL Two-Handle 1-Hole Deck Mount Pot Filler, Polished Chrome$516.72Polished Chrome
Concord KS8705DL Two-Handle 1-Hole Deck Mount Pot Filler, Oil Rubbed Bronze$601.22Oil Rubbed Bronze
Concord KS8706DL Two-Handle 1-Hole Deck Mount Pot Filler, Polished Nickel$649.97Polished Nickel
Concord KS8707DL Two-Handle 1-Hole Deck Mount Pot Filler, Brushed Brass$649.97Brushed Brass
Concord KS8708DL Two-Handle 1-Hole Deck Mount Pot Filler, Brushed Nickel$601.22Brushed Nickel
