Kingston Brass Kingston Brass KS8171DL parts
Kingston Brass Concord 8-Inch Centerset Wall Mount Kitchen Faucet. One parts diagram covers all 3 finishes of this model.

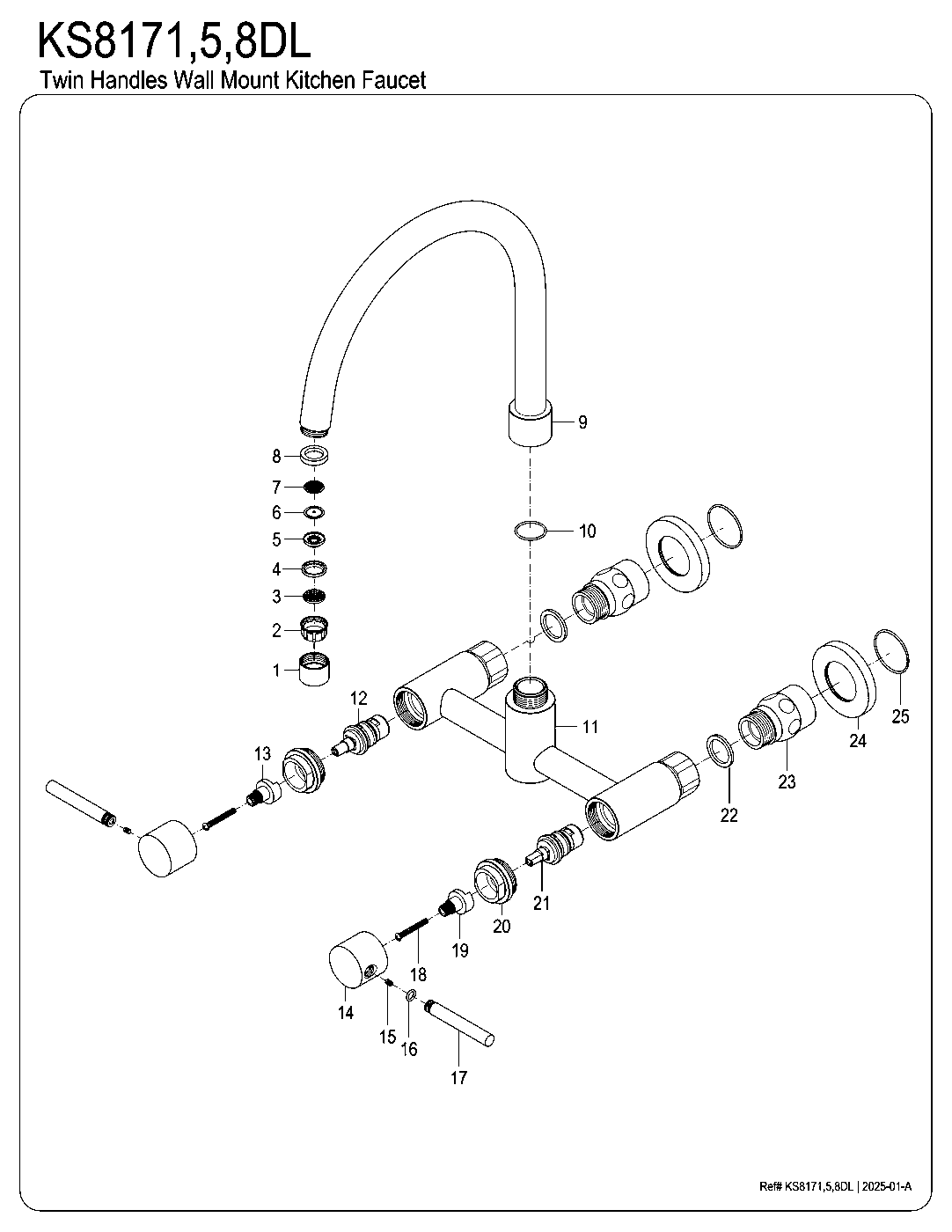

Kingston Brass KS8171DL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramKingston Brass KS8171DL parts questions
Which Kingston Brass models does this Kingston Brass parts diagram cover?
KS8171DL, KS8175DL, KS8178DL. They are the same kingston brass concord 8-inch centerset wall mount kitchen faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS8171DL come in?
Polished Chrome (KS8171DL), Oil Rubbed Bronze (KS8175DL), Brushed Nickel (KS8178DL).
What replacement handles fit the KS8171DL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS817xDL diagram?
Kingston numbers the parts on this diagram (23 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Kingston Brass KS817xDL in every finish
Concord KS8171DL Two-Handle 2-Hole Wall Mount Kitchen Faucet, Polished Chrome$516.72Polished Chrome
Concord KS8175DL Two-Handle 2-Hole Wall Mount Kitchen Faucet, Oil Rubbed Bronze$568.72Oil Rubbed Bronze
Kingston Brass Concord 8-Inch Centerset Wall Mount Kitchen Faucet, Brushed Nickel$568.72Brushed Nickel
