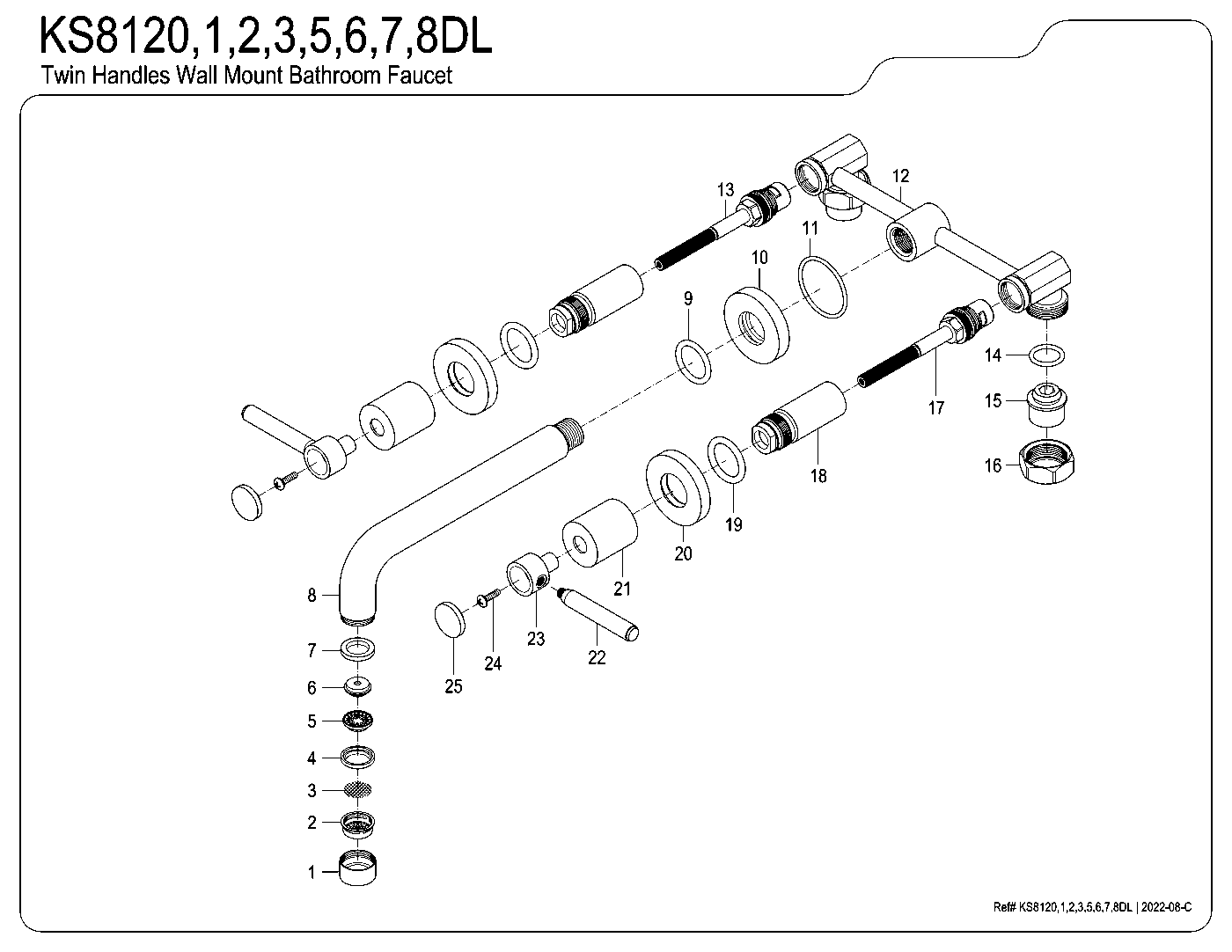

Kingston Brass KS8120DL exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramKingston Brass KS8120DL parts questions
Which Kingston Brass models does this Kingston Brass parts diagram cover?
KS8120DL, KS8121DL, KS8122DL, KS8123DL, KS8125DL, KS8126DL, KS8127DL, KS8128DL. They are the same concord 2-handle wall mount bathroom faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS8120DL come in?
Matte Black (KS8120DL), Polished Chrome (KS8121DL), Polished Brass (KS8122DL), Antique Brass (KS8123DL), Oil Rubbed Bronze (KS8125DL), Polished Nickel (KS8126DL), Brushed Brass (KS8127DL), Brushed Nickel (KS8128DL).
What replacement handles fit the KS8120DL?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS812xDL diagram?
Kingston numbers the parts on this diagram (24 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Kingston Brass KS812xDL in every finish
Kingston Brass KS8120DL Concord 2-Handle Wall Mount Bathroom Faucet, Matte Black$376.97Matte Black
Kingston Brass KS8121DL Concord 2-Handle Wall Mount Bathroom Faucet, Polished Chrome$289.22Polished Chrome
Kingston Brass KS8122DL Concord 2-Handle Wall Mount Bathroom Faucet, Polished Brass$337.97Polished Brass
Kingston Brass KS8123DL Concord 2-Handle Wall Mount Bathroom Faucet, Antique Brass$376.97Antique Brass
Kingston Brass KS8125DL Concord 2-Handle Wall Mount Bathroom Faucet, Oil Rubbed Bronze$337.97Oil Rubbed Bronze
Kingston Brass KS8126DL Concord 2-Handle Wall Mount Bathroom Faucet, Polished Nickel$376.97Polished Nickel
Kingston Brass KS8127DL Concord 2-Handle Wall Mount Bathroom Faucet, Brushed Brass$376.97Brushed Brass
Kingston Brass KS8128DL Concord 2-Handle Wall Mount Bathroom Faucet, Brushed Nickel$337.97Brushed Nickel
