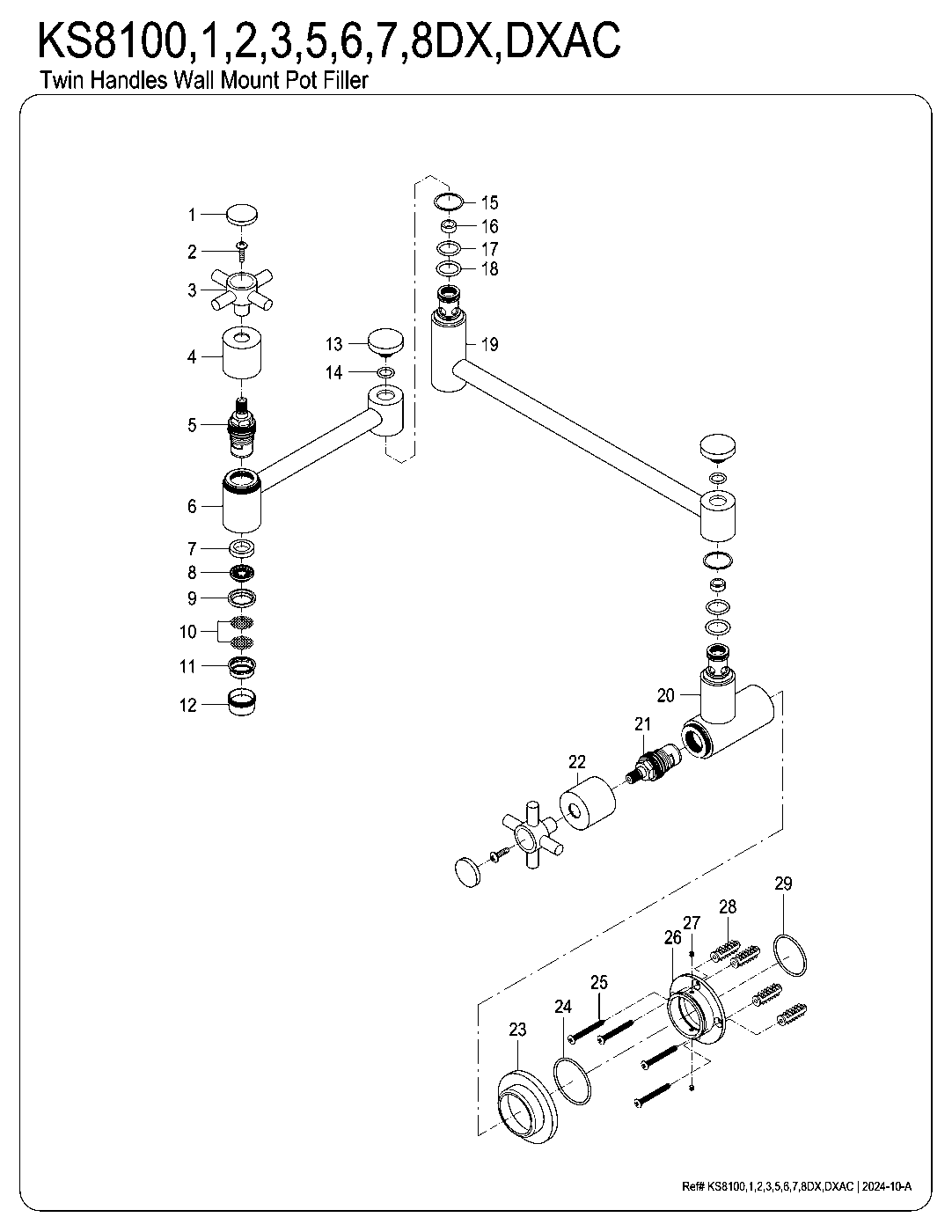

Kingston Brass KS8100DX exploded diagram
Tap a part number to see the part, its price and fit. Blue parts are in our catalog; gray ones we order in.
Tap any part number on the diagram to see what it is, whether we stock it, and add it to your cart.
Need a part that isn’t listed?
Kingston numbers the parts on its diagrams without part numbers. Tap the number on the diagram, or send us the number with your model and finish, and we’ll look it up with Kingston and send a price.
Request a part from this diagramKingston Brass KS8100DX parts questions
Which Kingston Brass models does this Kingston Brass parts diagram cover?
KS8100DX, KS8101DX, KS8102DX, KS8105DX, KS8106DX, KS8107DX, KS8108DX. They are the same concord wall mount pot filler kitchen faucet in different finishes, so they share one parts diagram.
What finishes does the Kingston Brass KS8100DX come in?
Matte Black (KS8100DX), Polished Chrome (KS8101DX), Polished Brass (KS8102DX), Oil Rubbed Bronze (KS8105DX), Polished Nickel (KS8106DX), Brushed Brass (KS8107DX), Brushed Nickel (KS8108DX).
What replacement handles fit the KS8100DX?
We don't list a matching handle for this model online. Send us the model number and finish and we'll order it from Kingston.
How do I order a part from the KS810xDX diagram?
Kingston numbers the parts on this diagram (25 parts) without part numbers. Tap the number and send it with your model and finish; our counter looks it up with Kingston and sends a price.
Kingston Brass KS810xDX in every finish
Kingston Brass KS8100DX Concord Wall Mount Pot Filler Kitchen Faucet, Matte Black$493.97Matte Black
Kingston Brass KS8101DX Concord Wall Mount Pot Filler Kitchen Faucet, Polished Chrome$367.22Polished Chrome
Kingston Brass KS8102DX Concord Wall Mount Pot Filler Kitchen Faucet, Polished Brass$406.22Polished Brass
Concord KS8105DX Two-Handle 1-Hole Wall Mount Pot Filler, Oil Rubbed Bronze$406.22Oil Rubbed Bronze
Kingston Brass KS8106DX Concord Wall Mount Pot Filler Kitchen Faucet, Polished Nickel$493.97Polished Nickel
Kingston Brass KS8107DX Concord Wall Mount Pot Filler Kitchen Faucet, Brushed Brass$493.97Brushed Brass
Kingston Brass KS8108DX Concord Wall Mount Pot Filler Kitchen Faucet, Brushed Nickel$406.22Brushed Nickel
